Cates Creek

Cottage
  • 462 sq. ft.
  • Beds: 1
  • Bath: 1
(615) 571-2040
Buy Plan

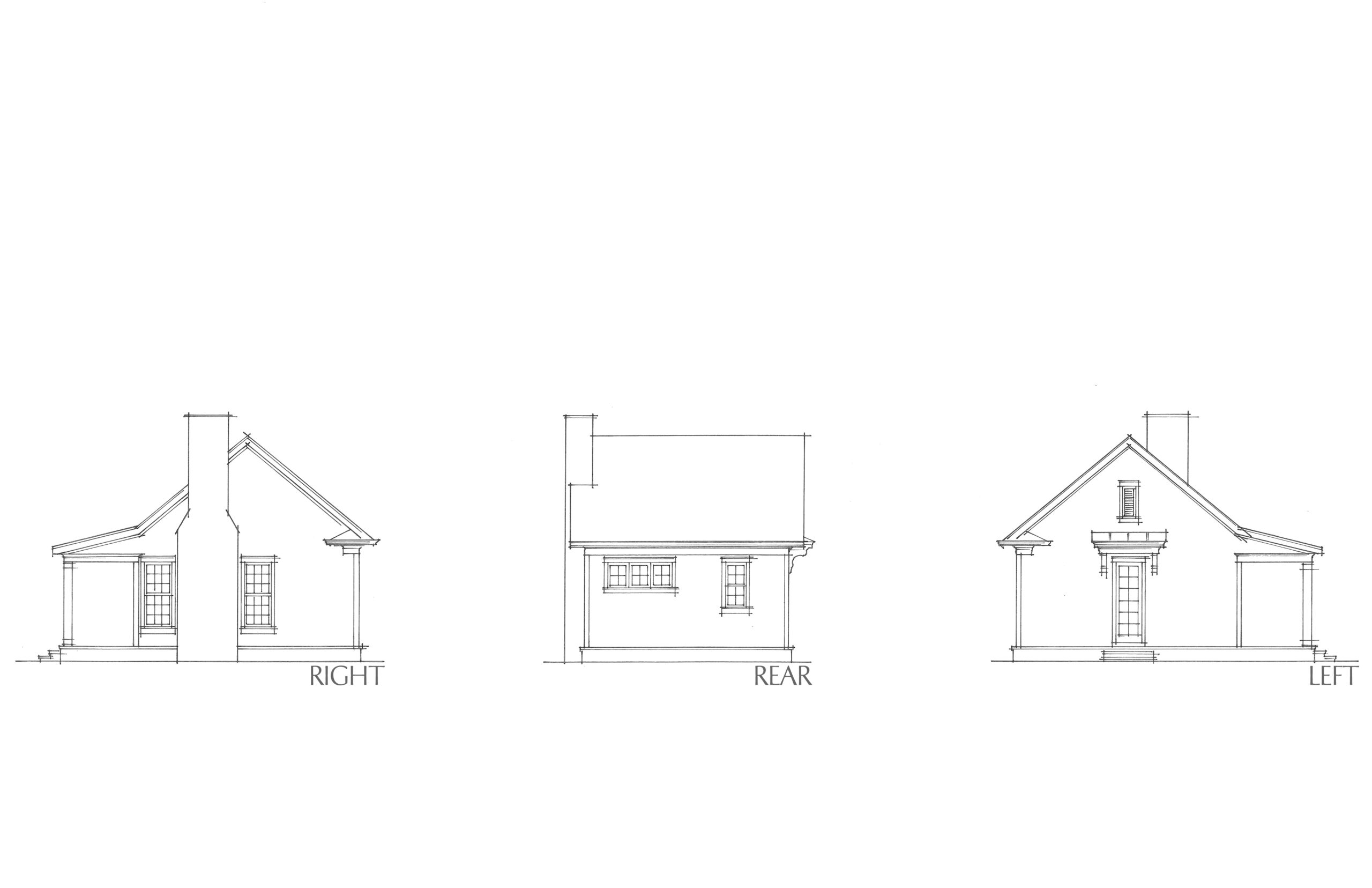

Cates Creek Cottage - Elevations
Compare
View Collected Plans
Favorite
View Favorites
Plan Details

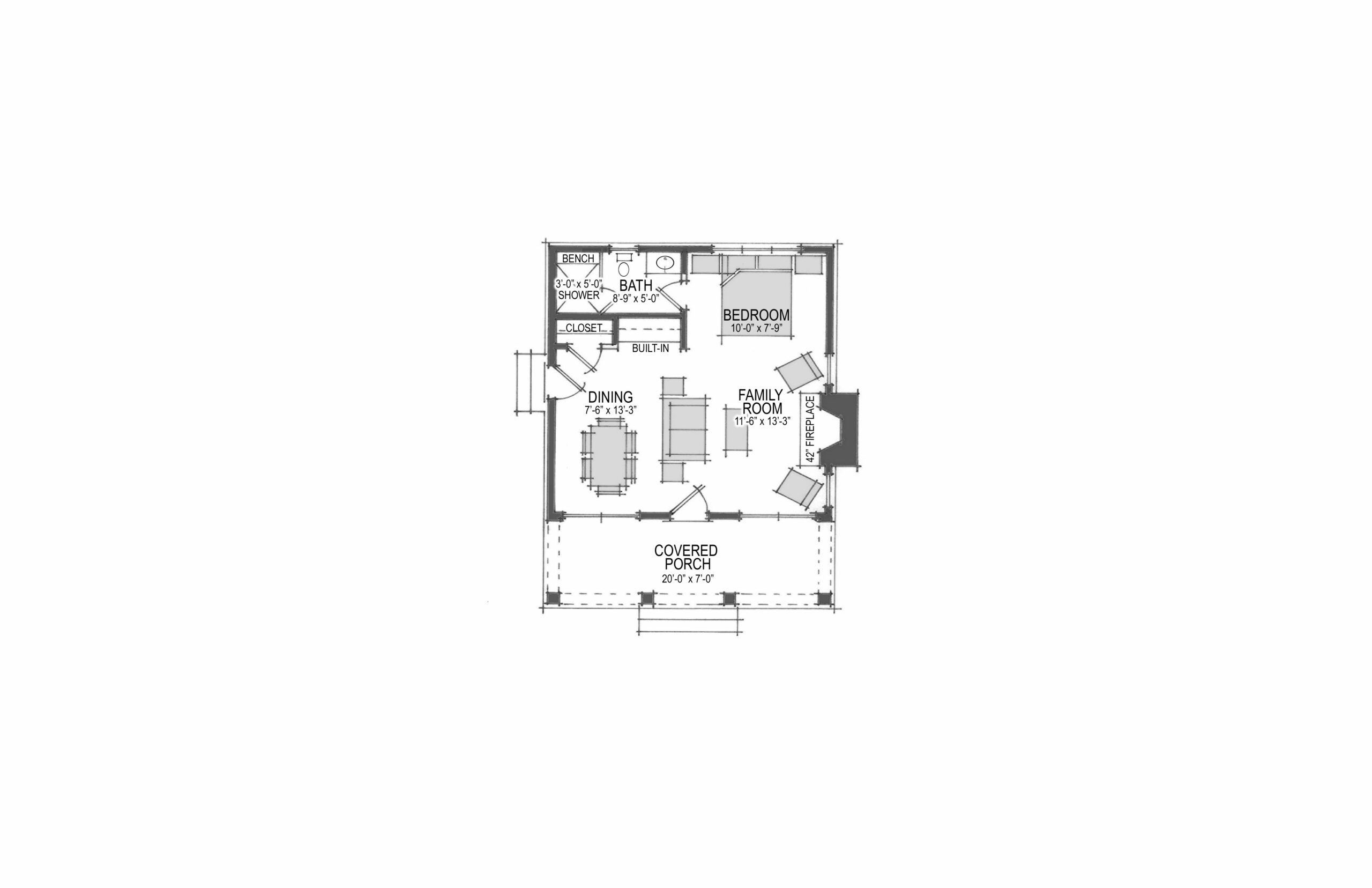

Floor plans
Overall Dimensions: 21’w x 30’d

Tap to enlarge
Share Plan
Email
Print
Facebook
Pinterest

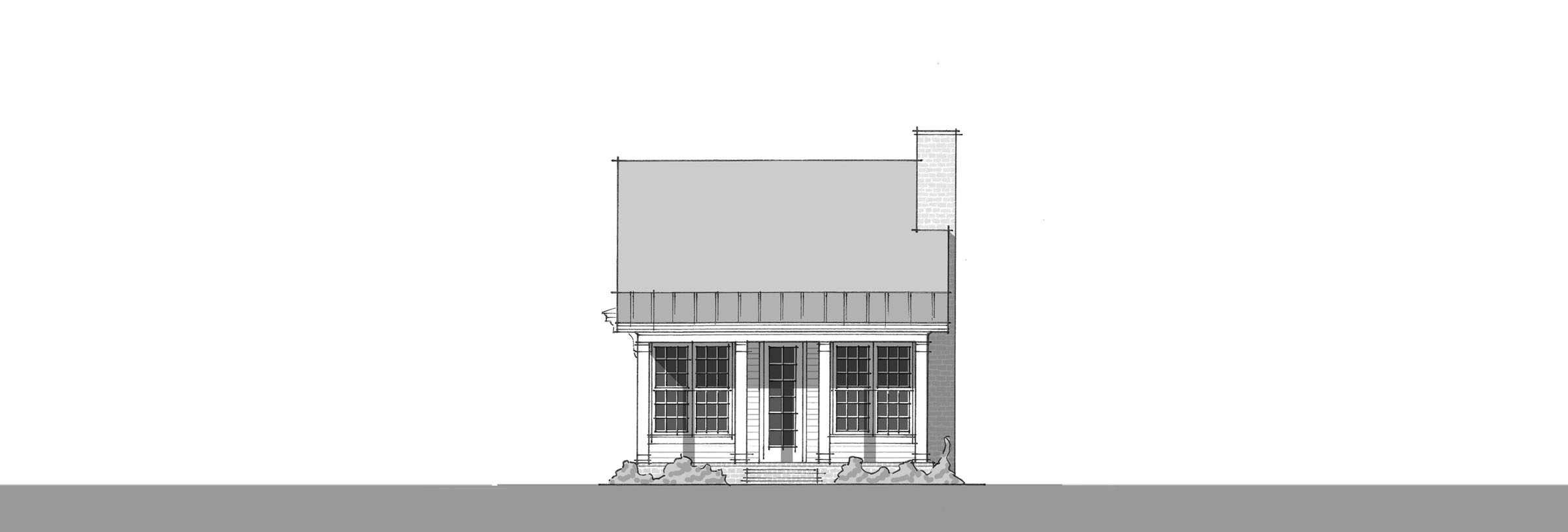

With an inviting covered front porch spanning the full front of this guest cottage, your visitors will feel like they have found their home away from home.

Cate’s Creek boasts a fireplace, wet bar, closet, and full bath, and 462 square feet of heated living space. This cottage pairs perfectly with any Sailer Design home, and is the perfect guest house, mother in law suite, office space, or art studio. Adding this cottage to your property will provide endless growth possibilities for your family’s home.

At a Glance
  • 462 square feet
  • Studio with full bath and closet
  • Perfect guest house
  • Great mother-in-law suite
  • Covered porch
  • Fireplace
  • Plan Name: Cates Creek
  • Style: Cottage
  • Square Footage: 462
  • Dimensions: 21'w x 30'd
  • Bedrooms: 1
  • Bath: 1
  • Half Bath: 0
  • Stories: 1
  • Garage Bays: 0
Compare All Features
View Collected Plans
Purchase Options
Questions?

Sailer Design has been honored to be the architect for a number of Southern Living Showcase Homes. Part of this honor means this particular plan is exclusively available through southernliving.com.

We do! You can view all Sailer Design plans sold exclusively on southernliving.com here: Southern Living House Plans →
Ask a question
Purchase Plan

This plan is available as a Southern Living house plan.

Purchase on Southern Living
Purchase Brochure

Or purchase a Printable Brochure here on sailerdesign.com

$15.00 $462.00

Or order by phone: 1-615-571-2040

Questions?
Your purchase of a Sailer Design plan includes the foundation plan, floor plans, all exterior elevations, and cornice details. Learn more →
We’d love to modify our plan to meet your needs. Many of our plans already include future expandable space. While it is easier to increase the square footage of a plan than it is to eliminate square footage, some of our plans can be made smaller. Contact us with your request and for a quote for these changes. Personalize this Plan →

Yes, we can flip the plan to meet your needs. For example, if the plan has the garage on the right side, but you need the garage on the left, we can reverse it.
Building costs vary greatly by region. We suggest consulting with a local builder to provide a building cost estimate.
View All FAQs
Ask a question
Purchase Plan
What's Included

Or order by phone: 1-615-571-2040

Personalize This PLan
Modify Plan
Related Plans
Southern Living Plans →
See All Plans →
232 MUIR AVE • NOLENSVILLE, TN  37135
615-571-2040
Instagram Facebook Pinterest-p Houzz Linkedin Phone-alt Envelope
© 2024 SAILER DESIGN. All Rights Reserved. Privacy Policy
Ask a Question

We would love to answer any questions you may have!

If it is easier to call:

1-615-571-2040

"*" indicates required fields

How would you prefer to be contacted?
Are you building in Middle TN?*
This field is for validation purposes and should be left unchanged.

What's Included

Foundation Plan – ¼” scale

Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.

First Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Second Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Roof Plan – ¼” scale

Documentation of the proposed roof form indicating slopes and special roof structures and their locations.

Elevations – ¼” scale

Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.

Building Details – 1” scale

Selected exterior details (cornice details, porch details, etc.).

What's Not Included

Architectural and Engineering stamps

Some cities and states require a licensed architect or engineer to review and stamp a set of Construction Documents. If your local building department requires one, you will need to engage a local architect or engineer for review and stamping.

Site-specific foundation plan

The included foundation plan is meant to serve as a basic guide for a typical foundation and is not site or location-specific. Sailer Design LLC recommends that you have a local designer or licensed engineer to review the plans and provide a site-specific foundation plan as necessary.

Heating, plumbing and electrical plans

Due to variations in climate and building codes, these should be supplied by local contractors. We suggest you have a local electrical engineer, mechanical engineer, or builder provide these drawings as required for permits and construction.

Material quantity list

Once your personal selections are made (types of windows, doors, exterior materials, etc…) this list should be obtained from your contractor or local building materials supplier.

Material selections

Final material selections are the responsibility of you and your builder, including proper installation.

Construction Documents

Our home plan packages offer a complete design of our homes. However, due to the uniqueness of each building site, our Construction Documents are not fully engineered to meet the requirements of each local building code, specific regional conditions, and individual building site. The plans are intended to indicate design intent and basic construction detailing. It is your responsibility to ensure that you have obtained the proper professional assistance to provide standard construction details and practices, which will result in a structurally sound and weatherproofed finished product. Variations in standard sizes (i.e. windows and doors), thicknesses, types and uses of different materials can change details. Local codes, ordinances, regulations, foundation requirements, and the layout of mechanical, electrical and plumbing may also require changes to the details.
