Charlotte

(615) 571-2040
Purchase Plan
Choose Style...
  • 932 sq. ft.
  • Beds: 0

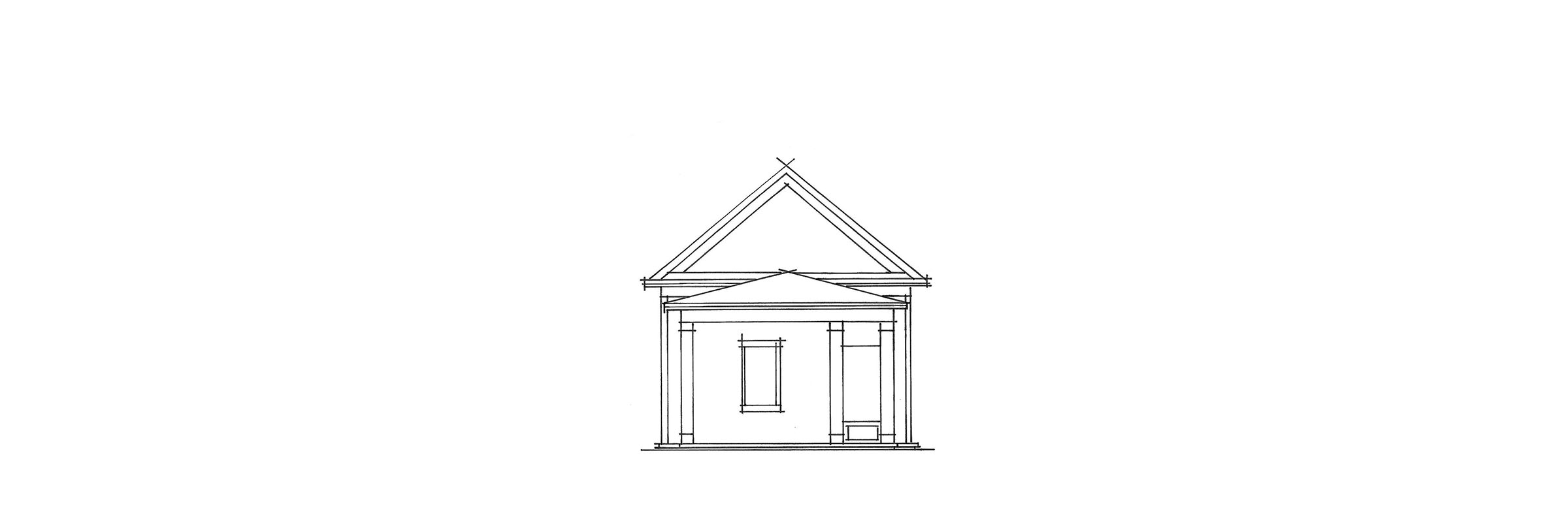

Charlotte - Left Elevation_2400

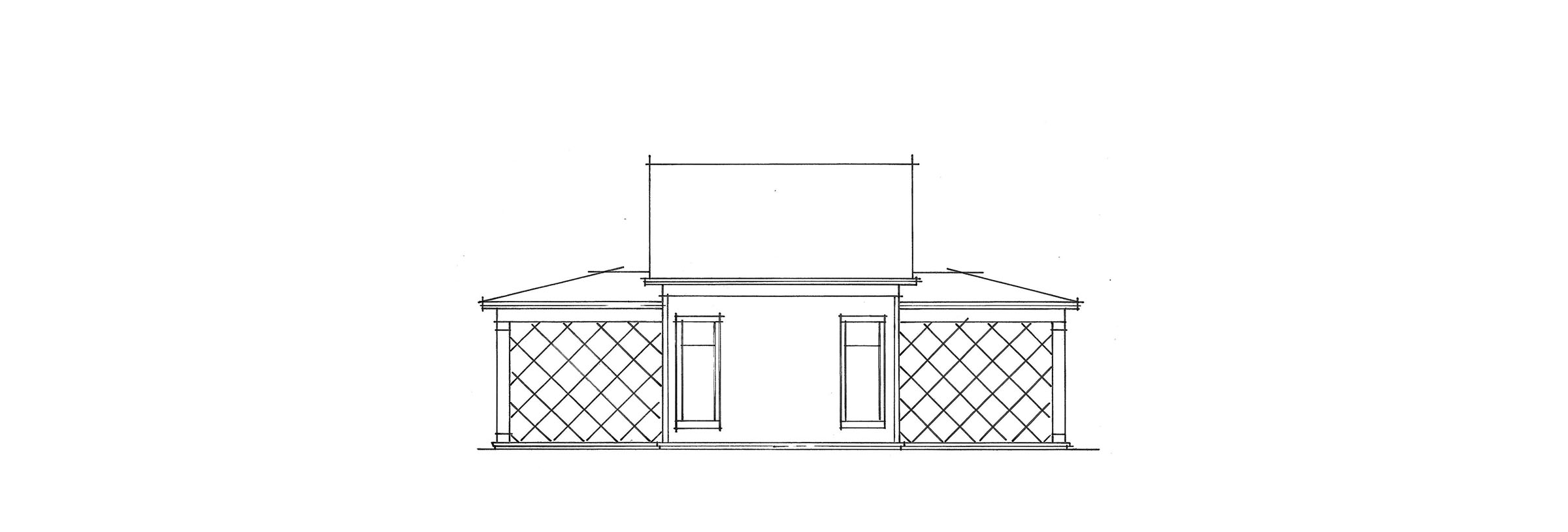

Charlotte - Rear Elevation_2400

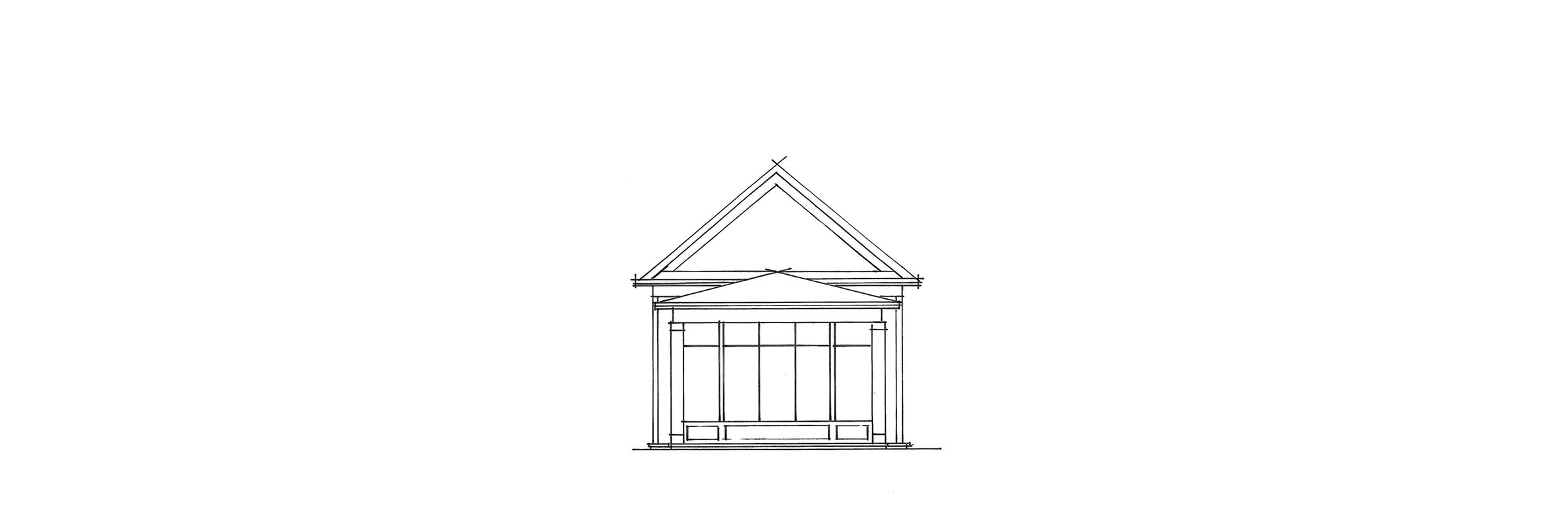

Charlotte - Right Elevation_2400
  • Style: Choose Style...
  • Square Footage: 932
  • Dimensions: 49' x 22'
  • Stories: 1
  • Bedrooms: 0
  • Half Bath: 1
  • Garage Bays: 0
Share Plan
Add To Favorites
View Favorites

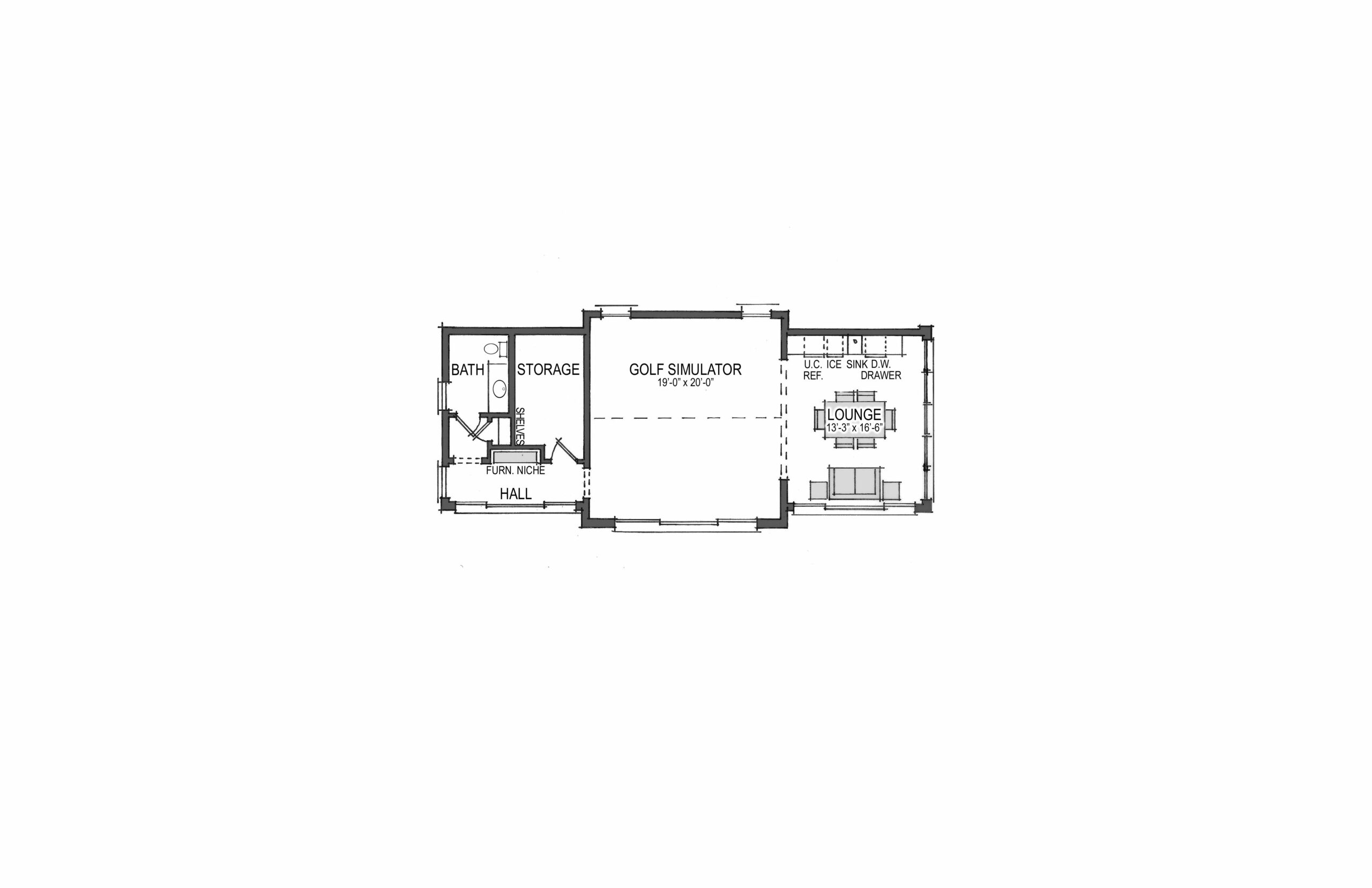

Charlotte - Floor Plan
Charlotte - Floor Plan
Plan Overview

The Charlotte is a cottage style clubhouse that fits perfectly with any Sailer Design home. With a golf simulator and spacious lounge area with a kitchenette, this pool house is an entertainer’s dream. Sliding doors across the front create a seamless indoor / outdoor space, and lattice work in the rear is ready for climbing greenery to add even more character to this quaint multi-purpose building. A powder room and a storage area complete the plan, providing all you need for a day by the pool with friends.
