Modern Tudor
Plan Details

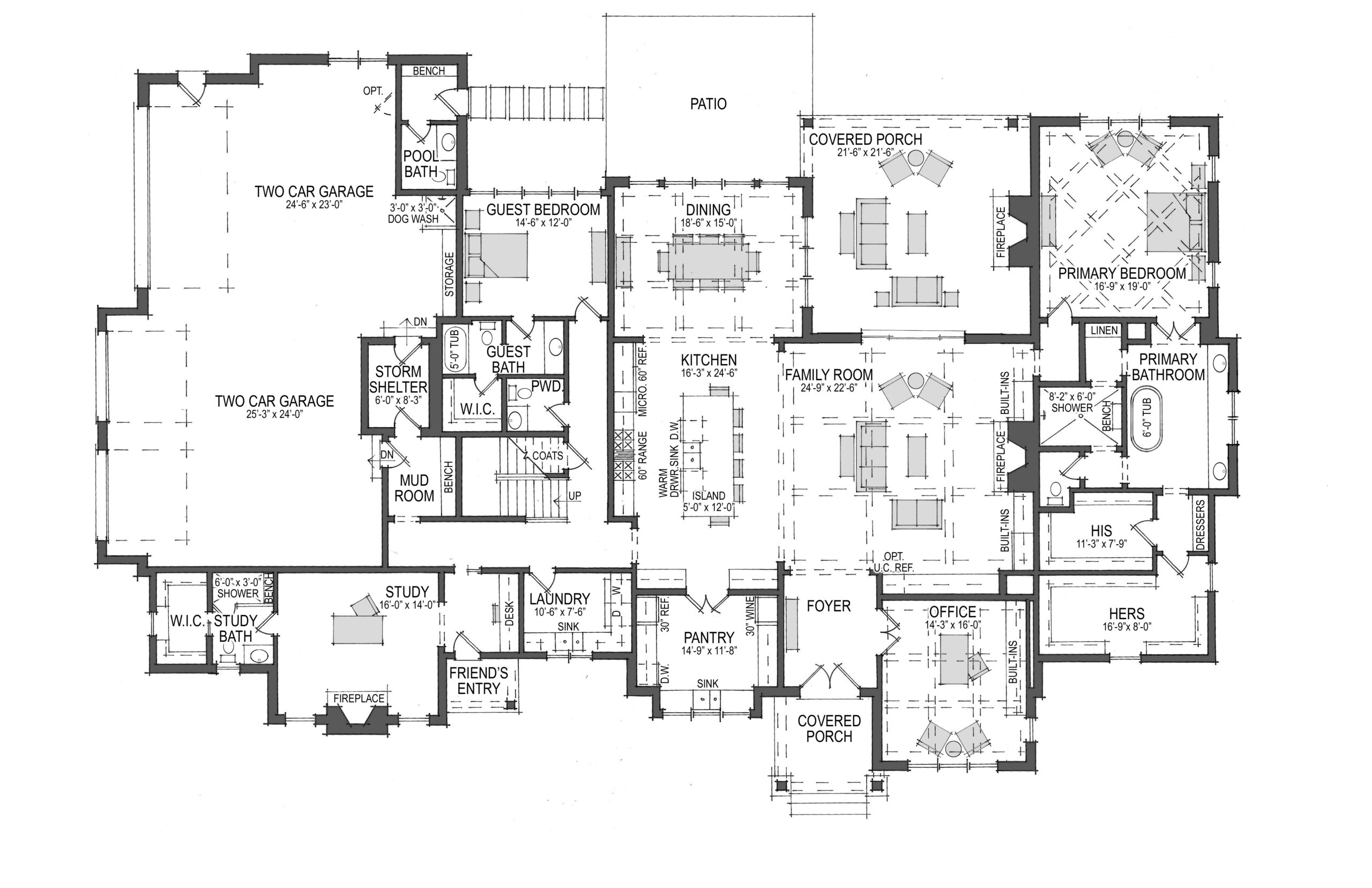

Floor plans
Overall Dimensions: 113′ x 74′

Tap to enlarge

Share Plan

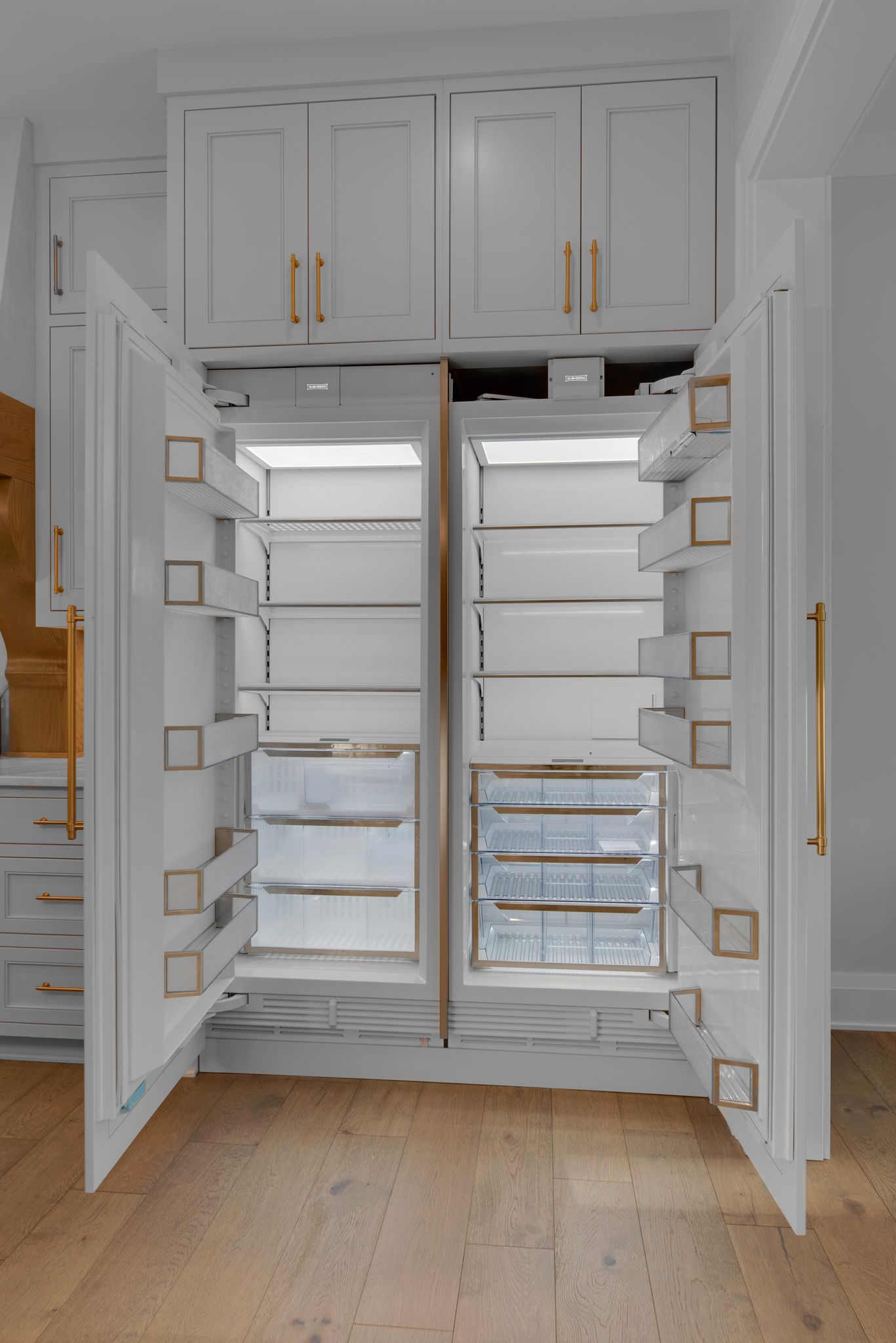

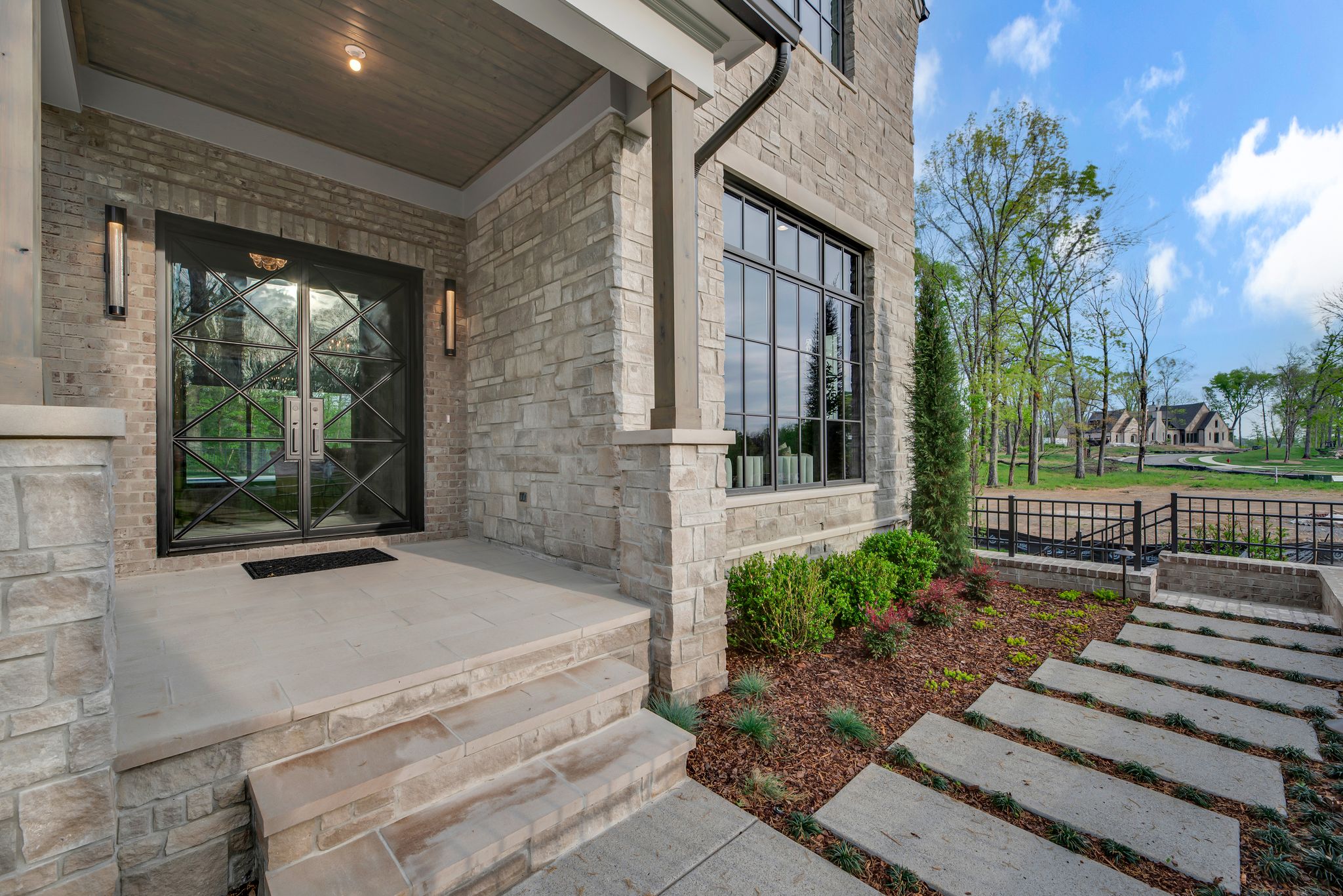

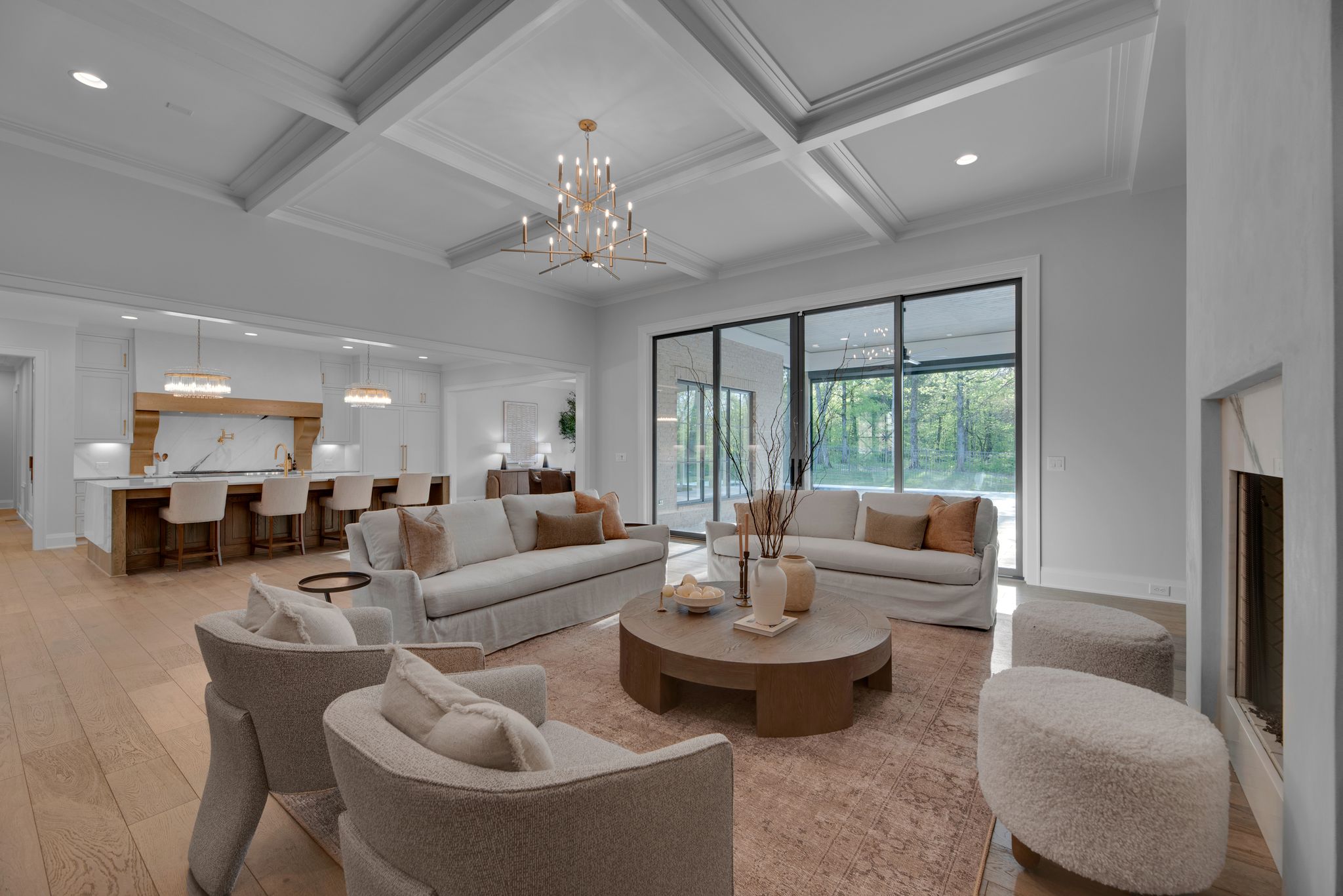

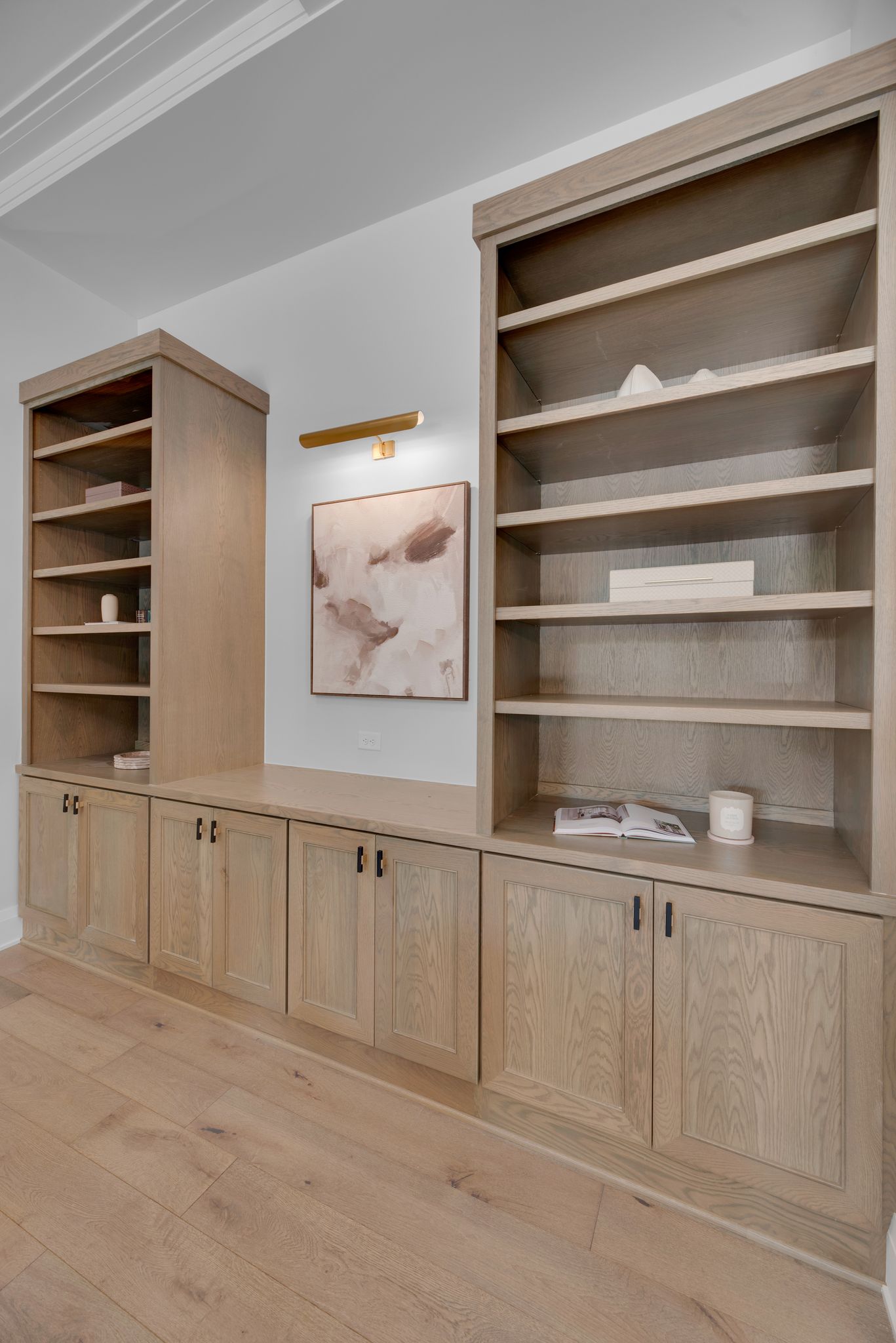

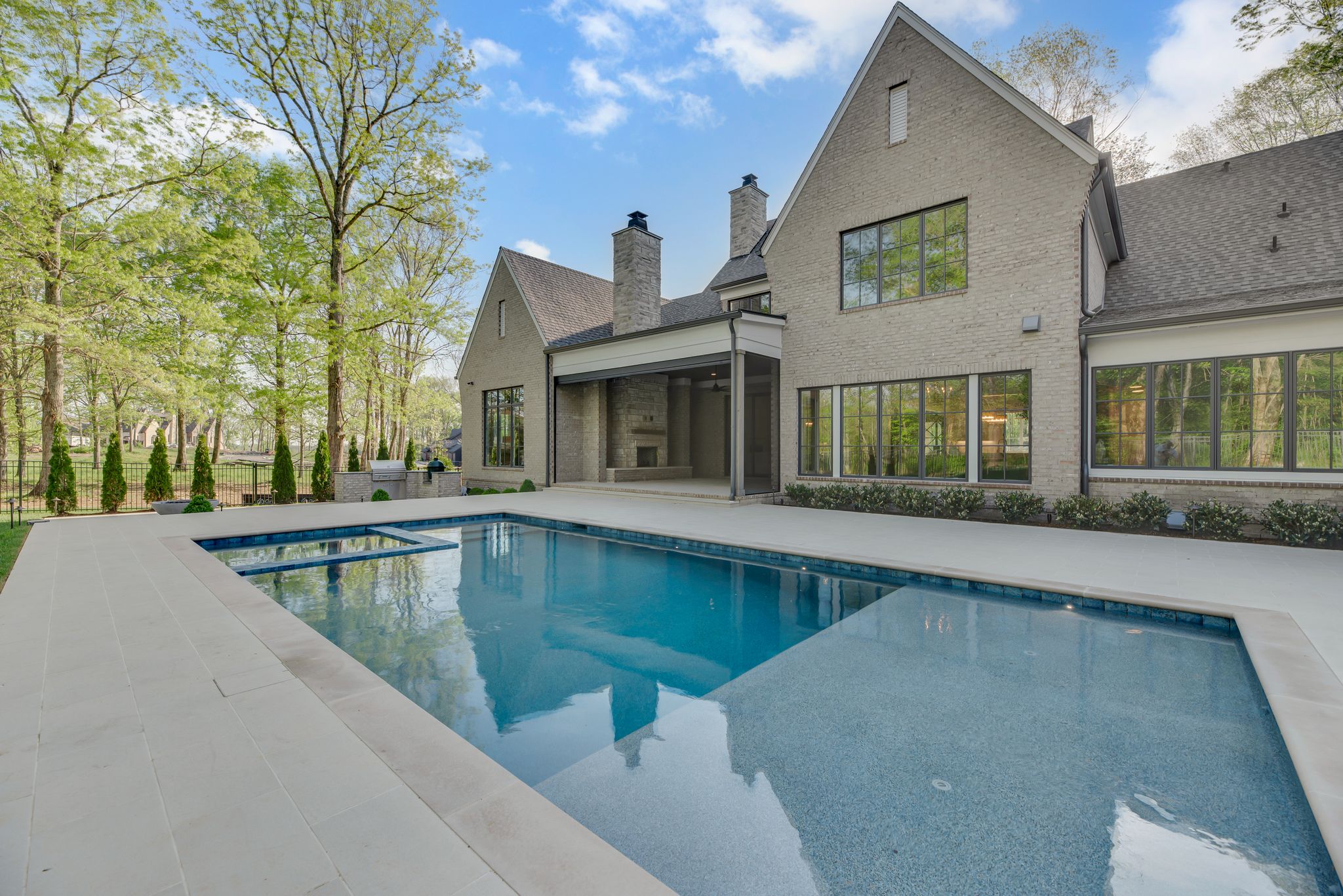

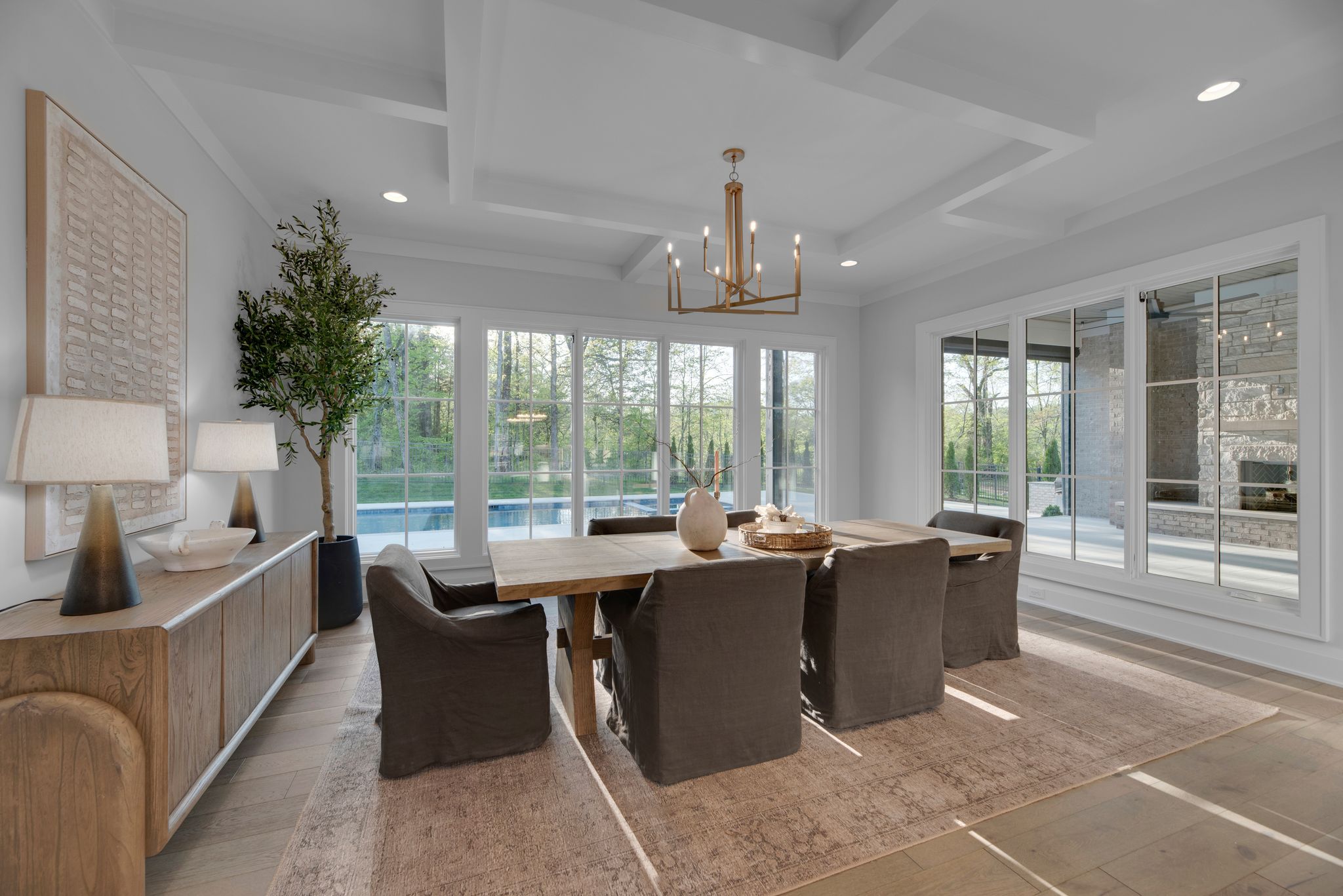

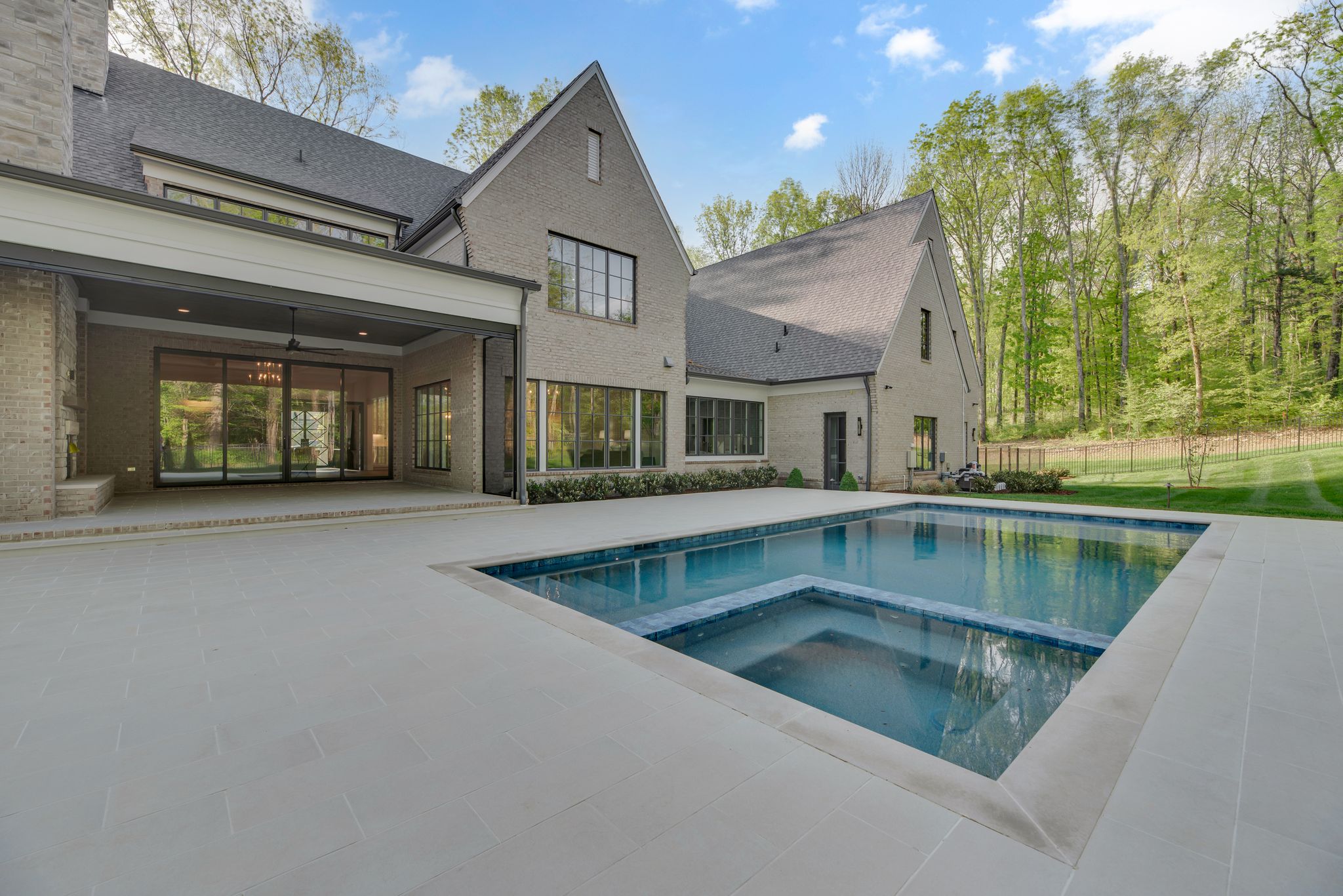

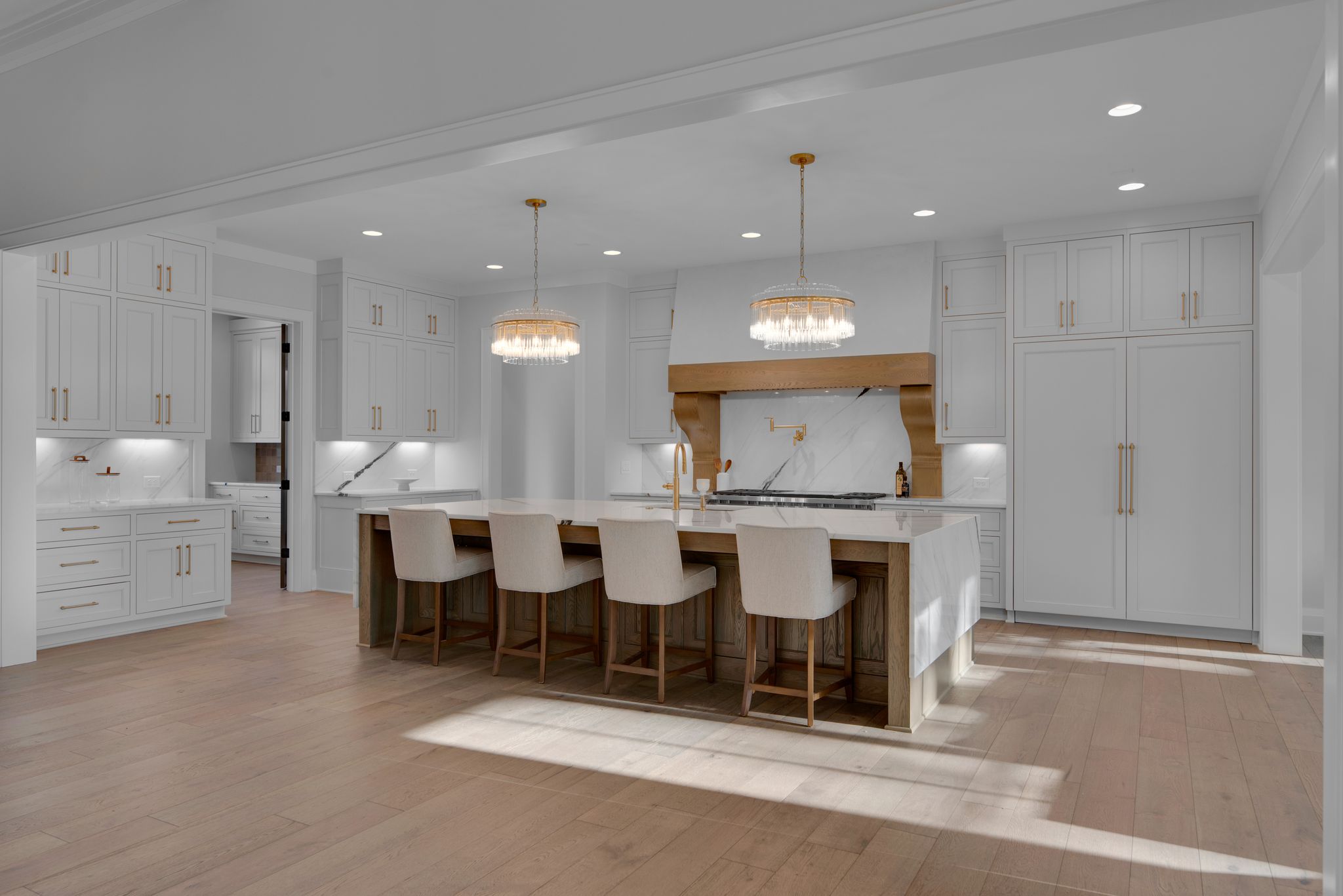

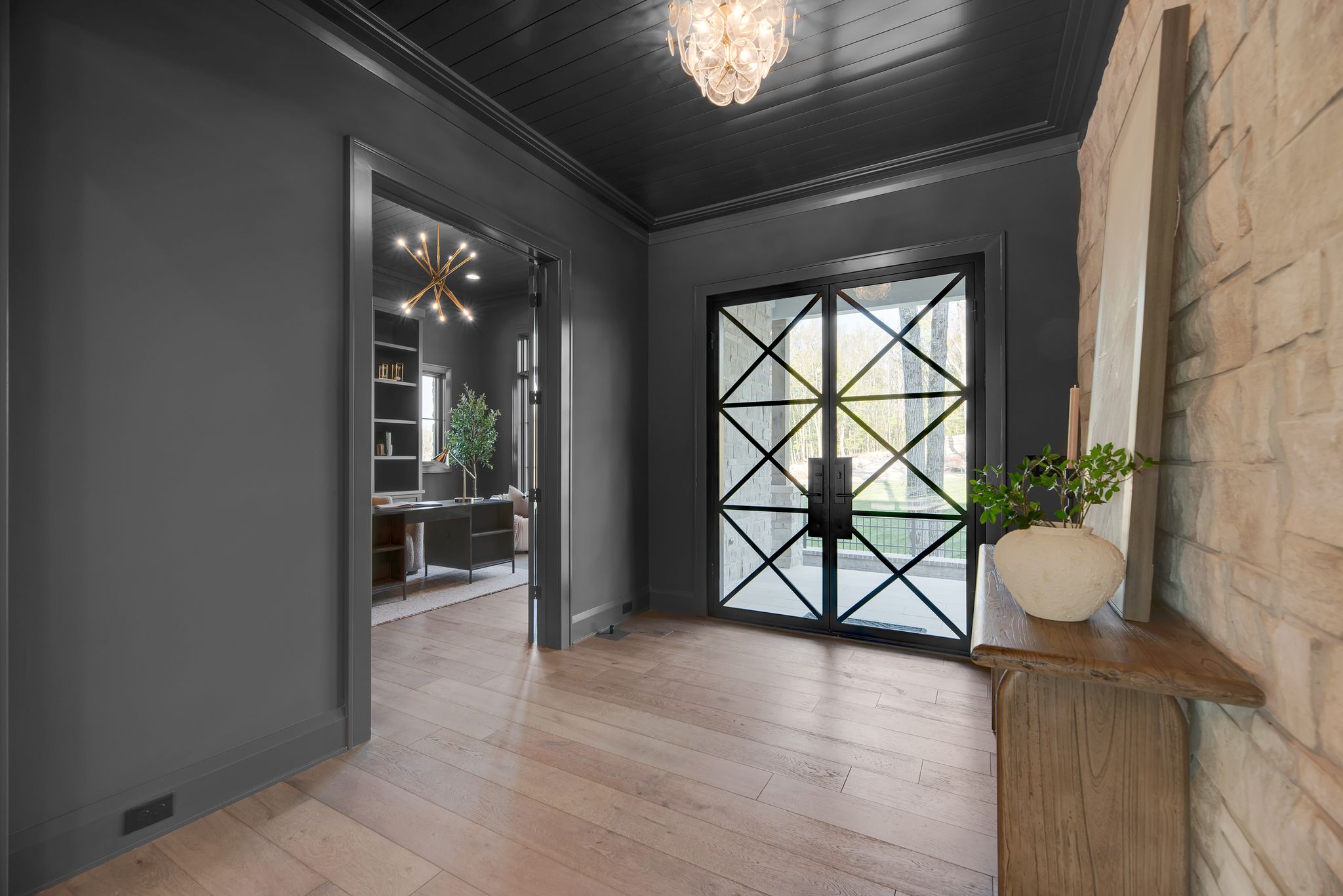

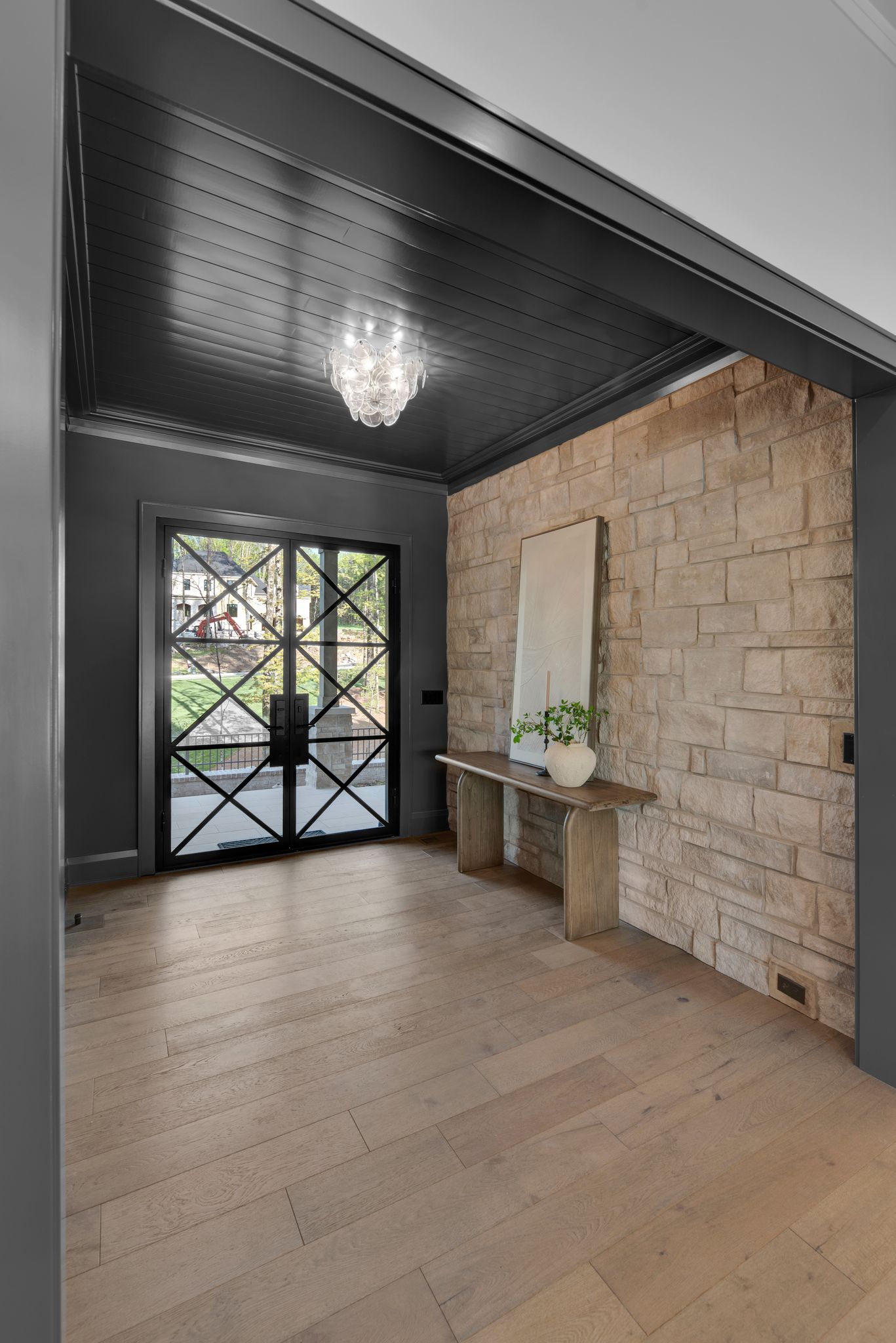

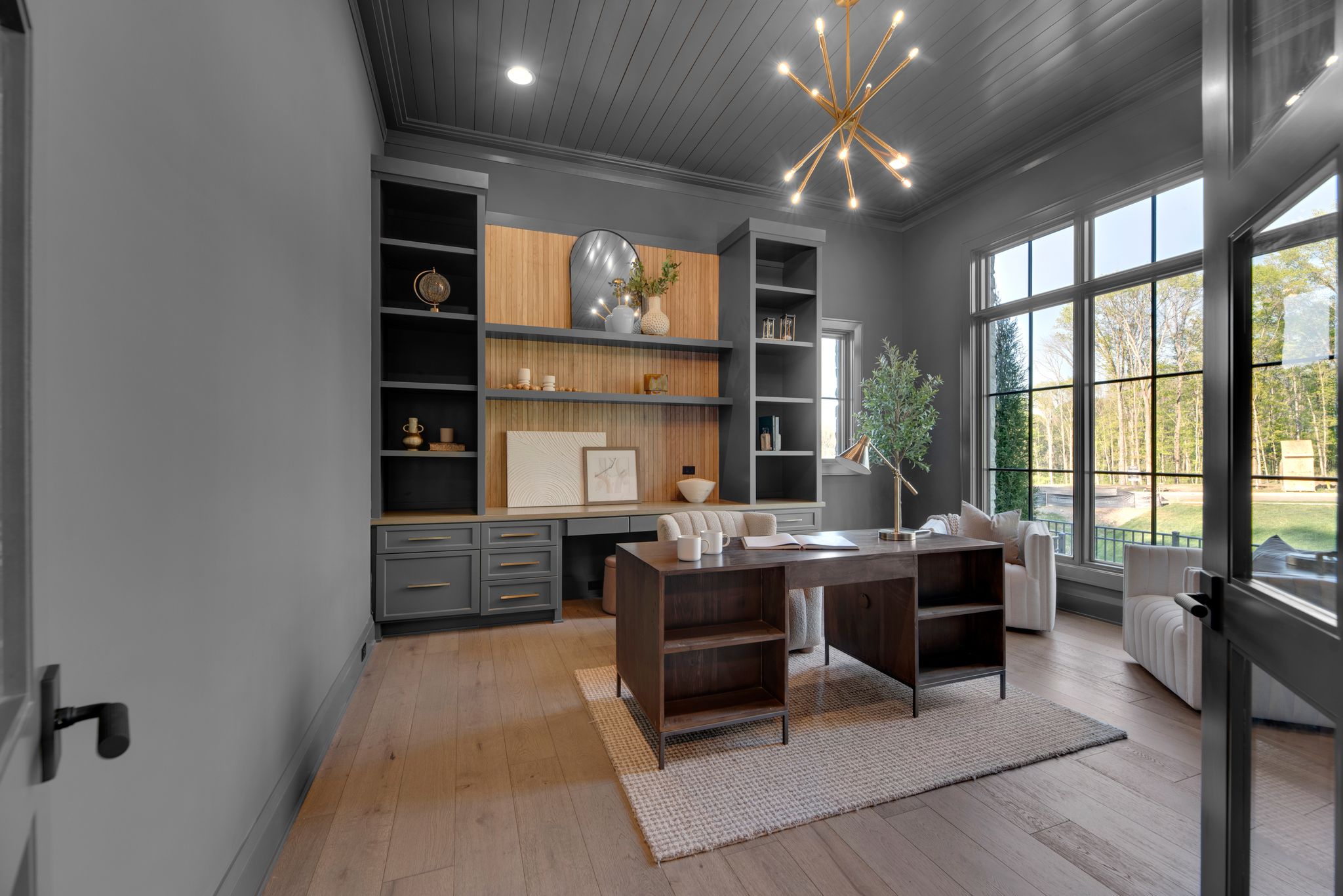

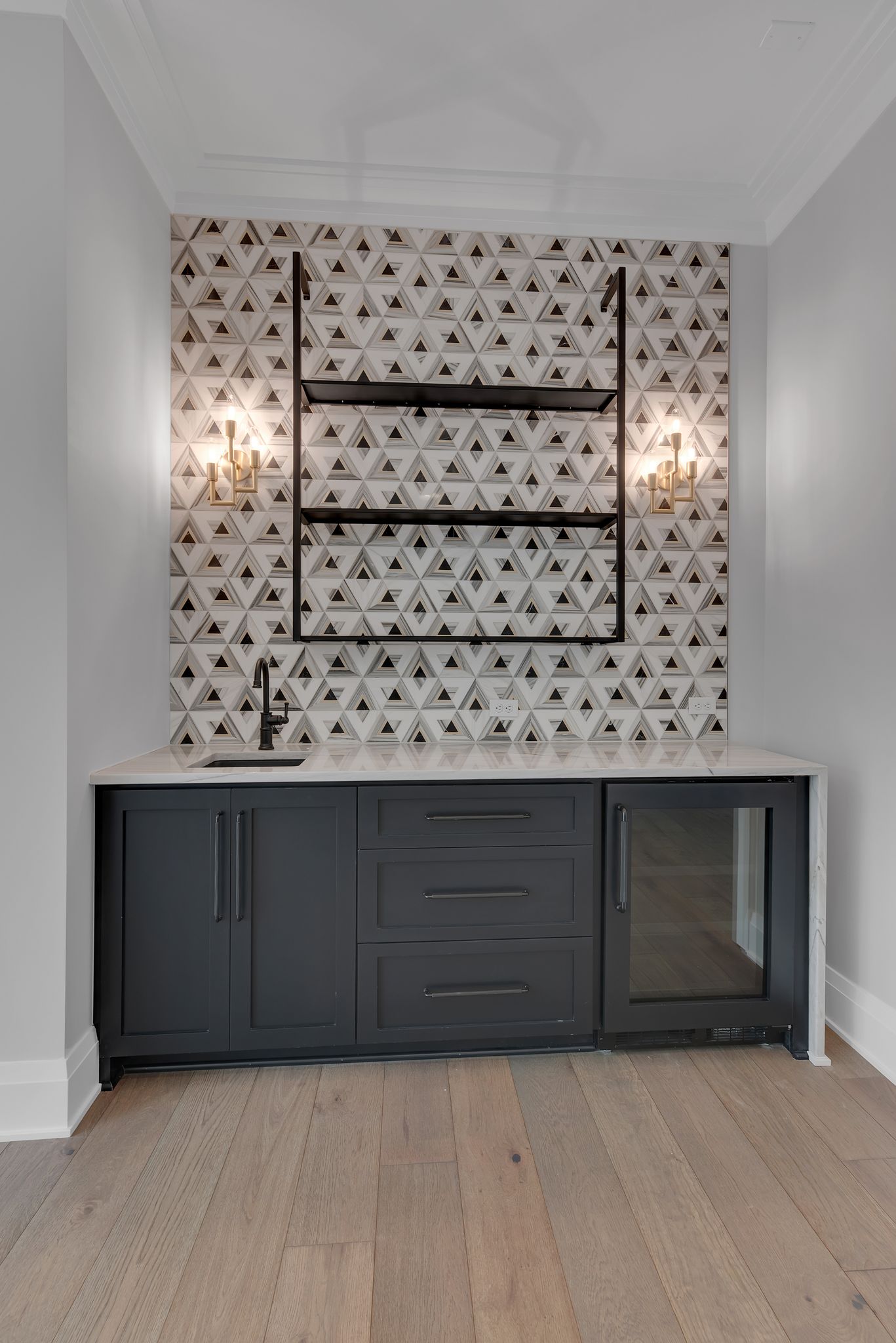

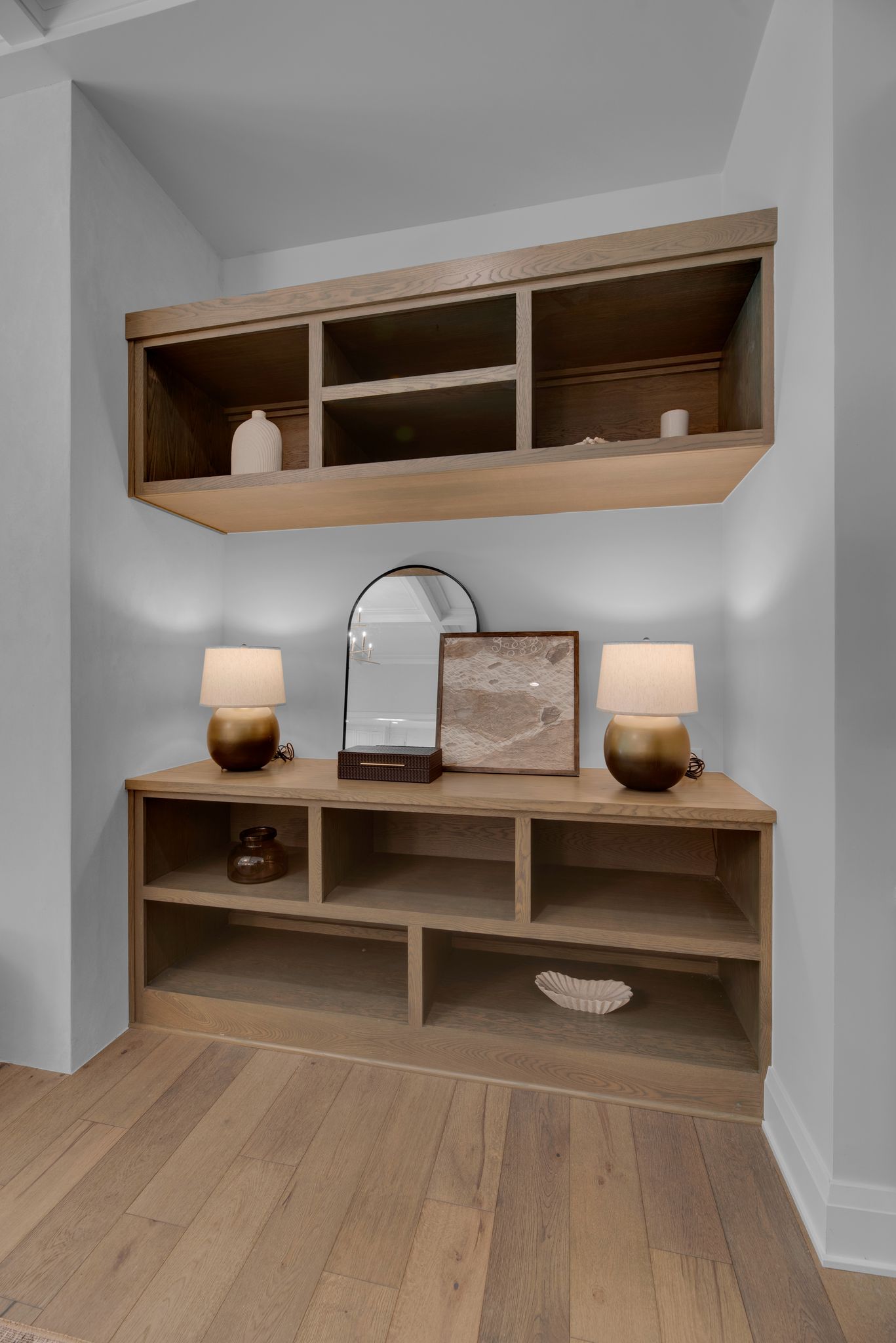

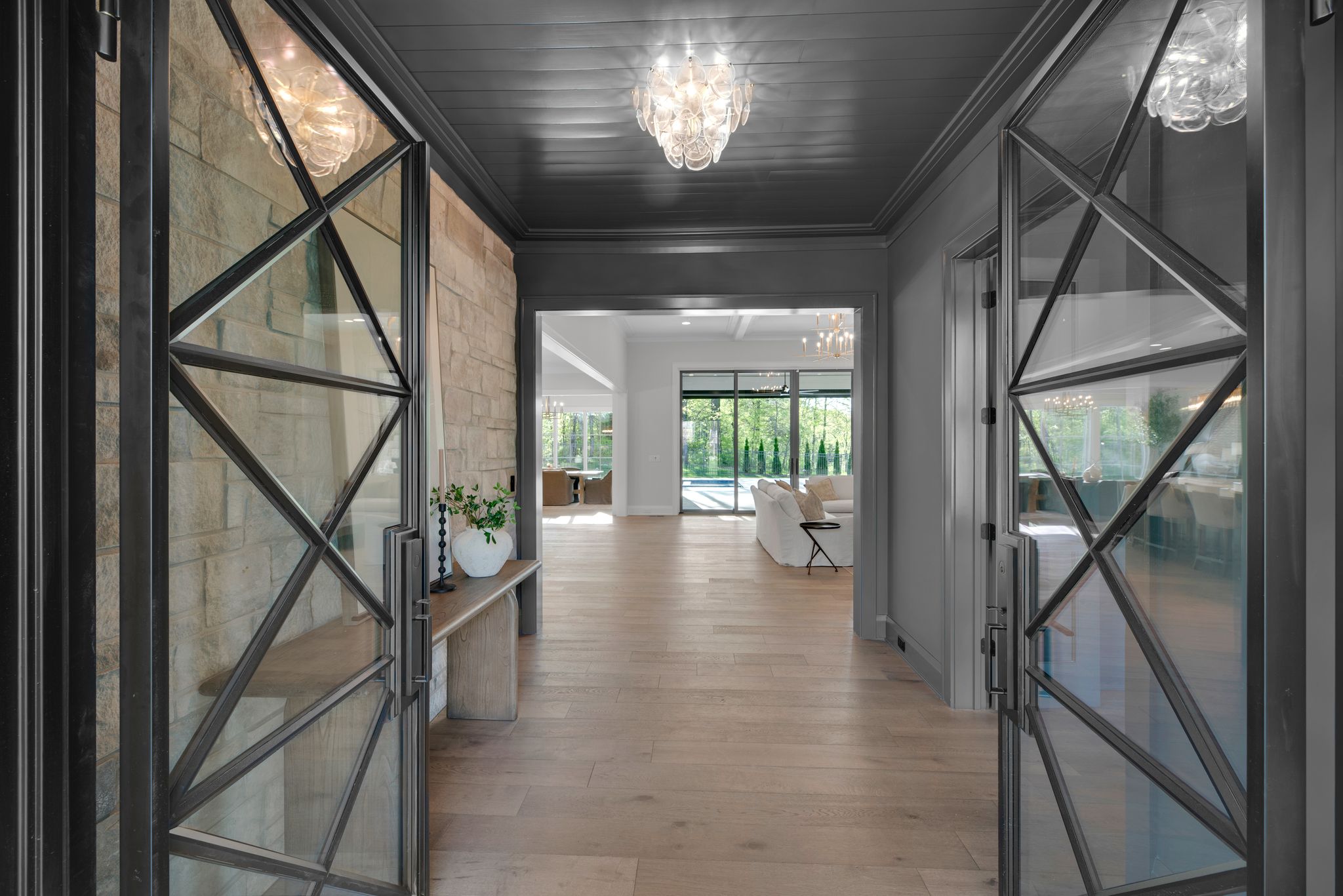

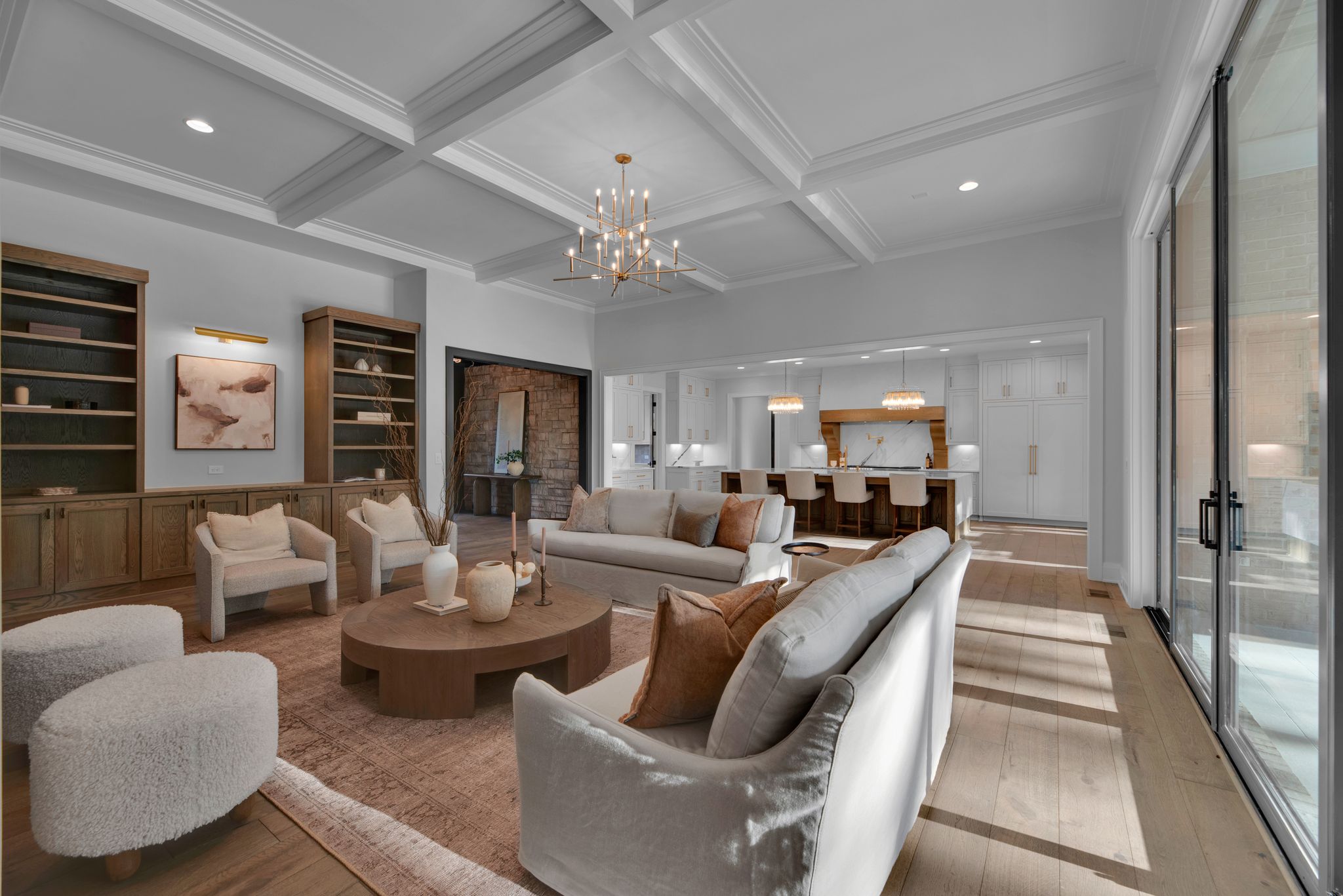

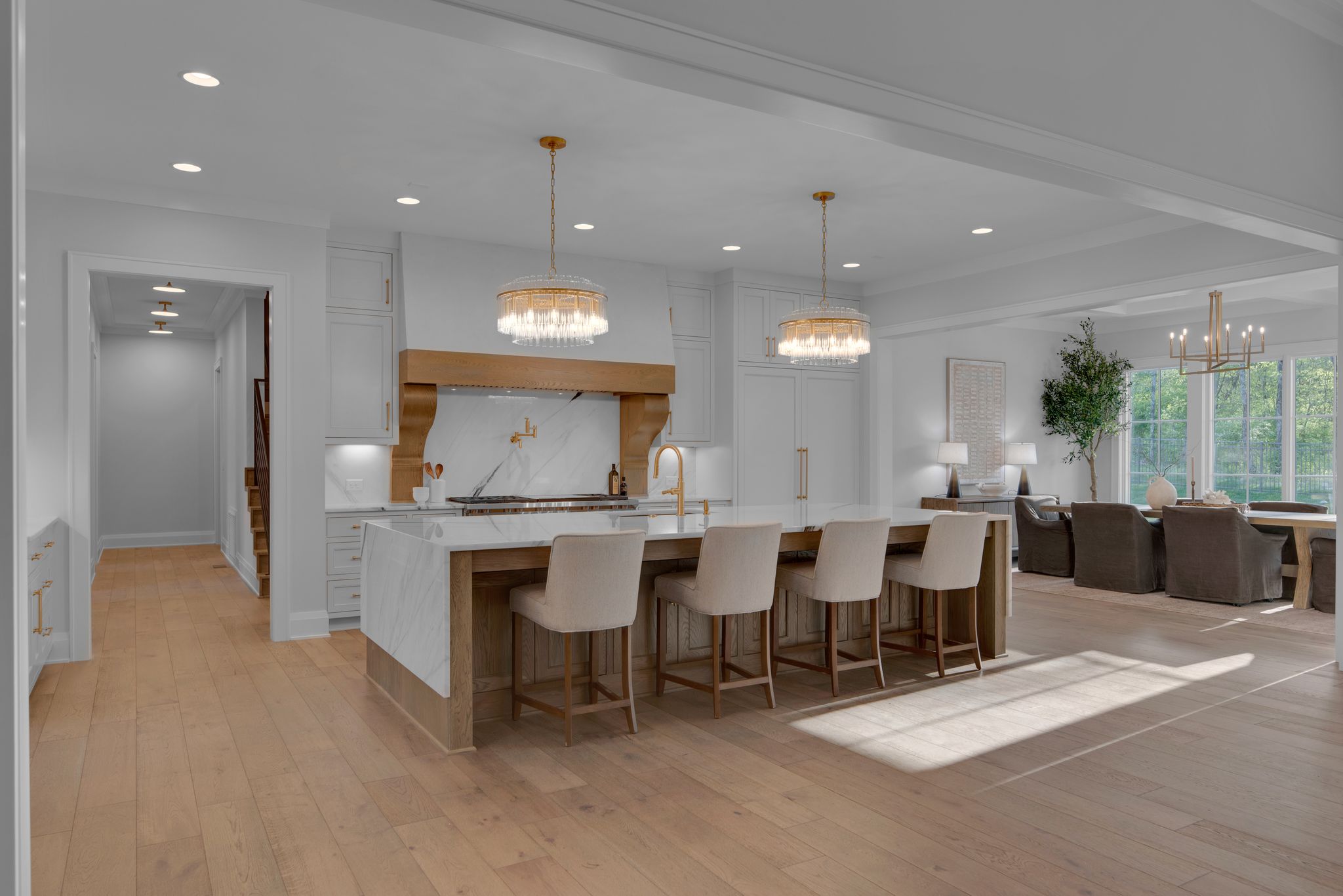

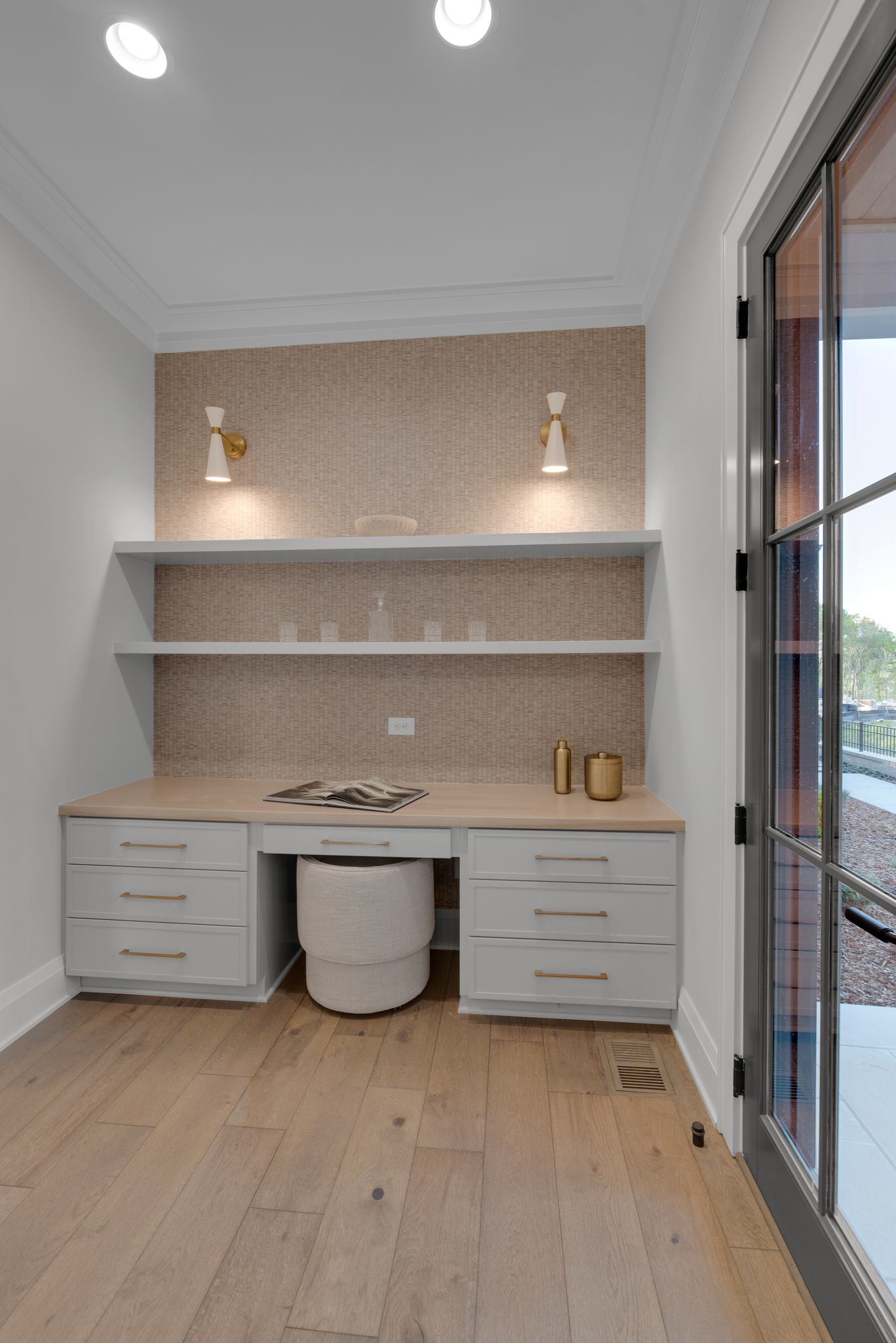

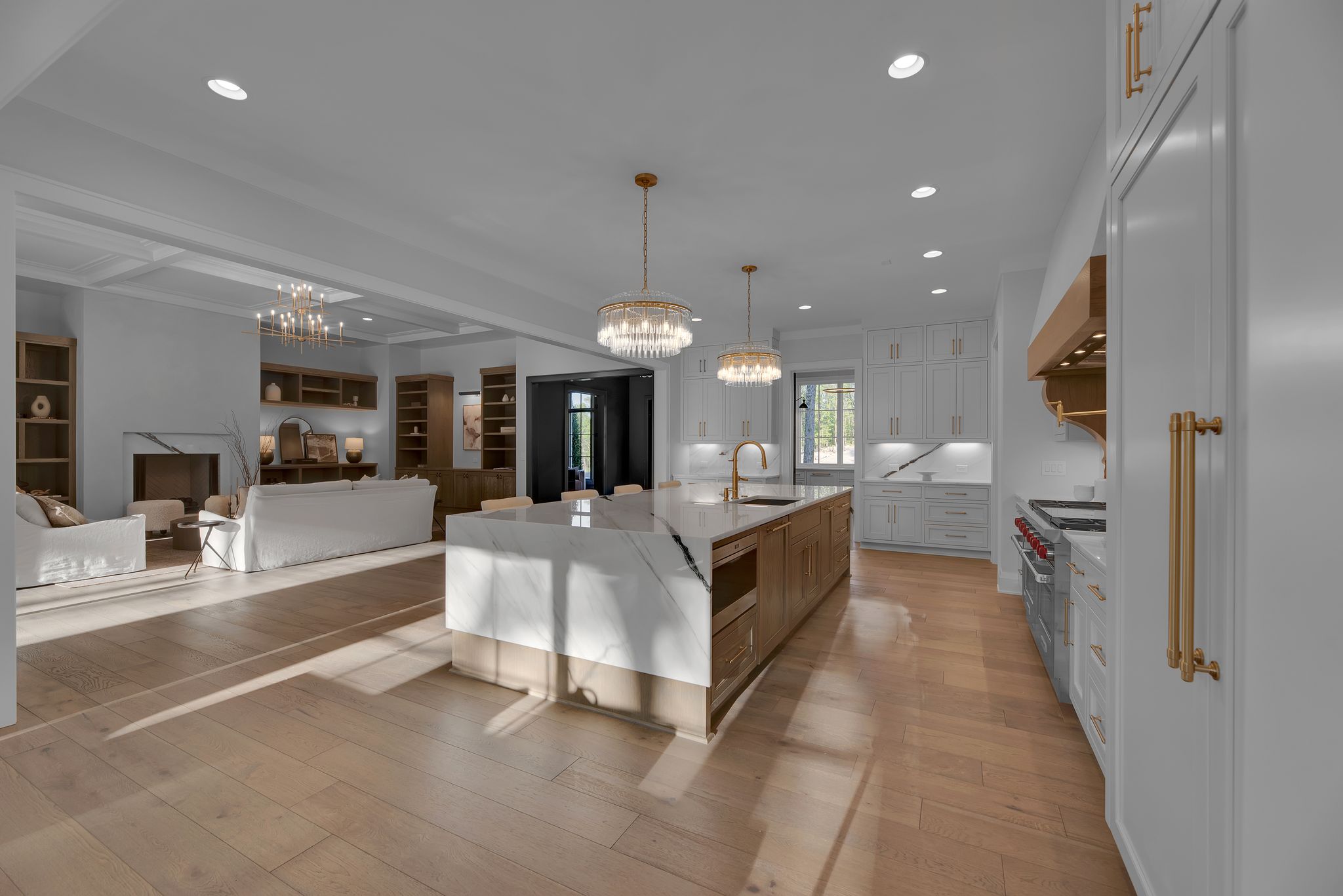

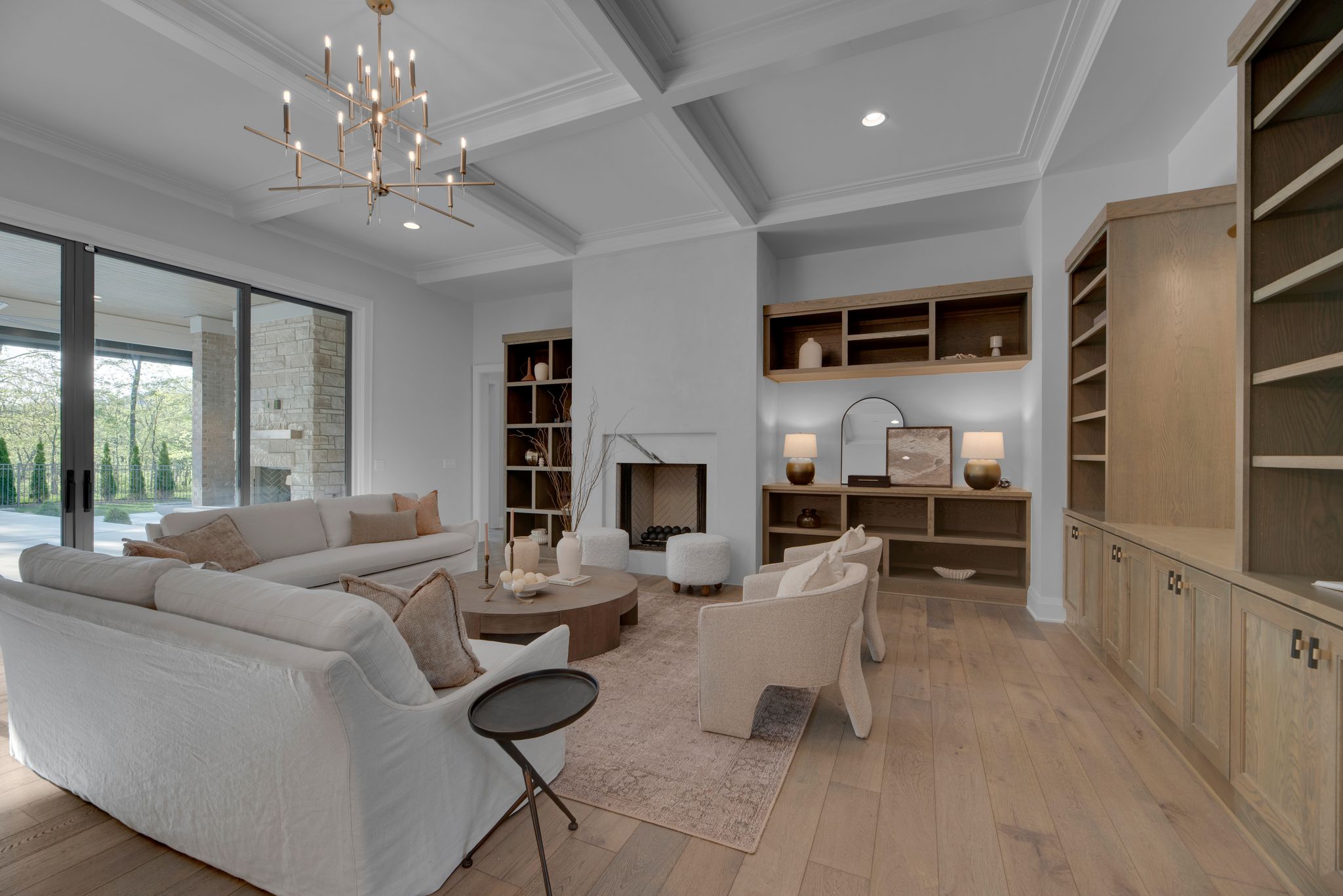

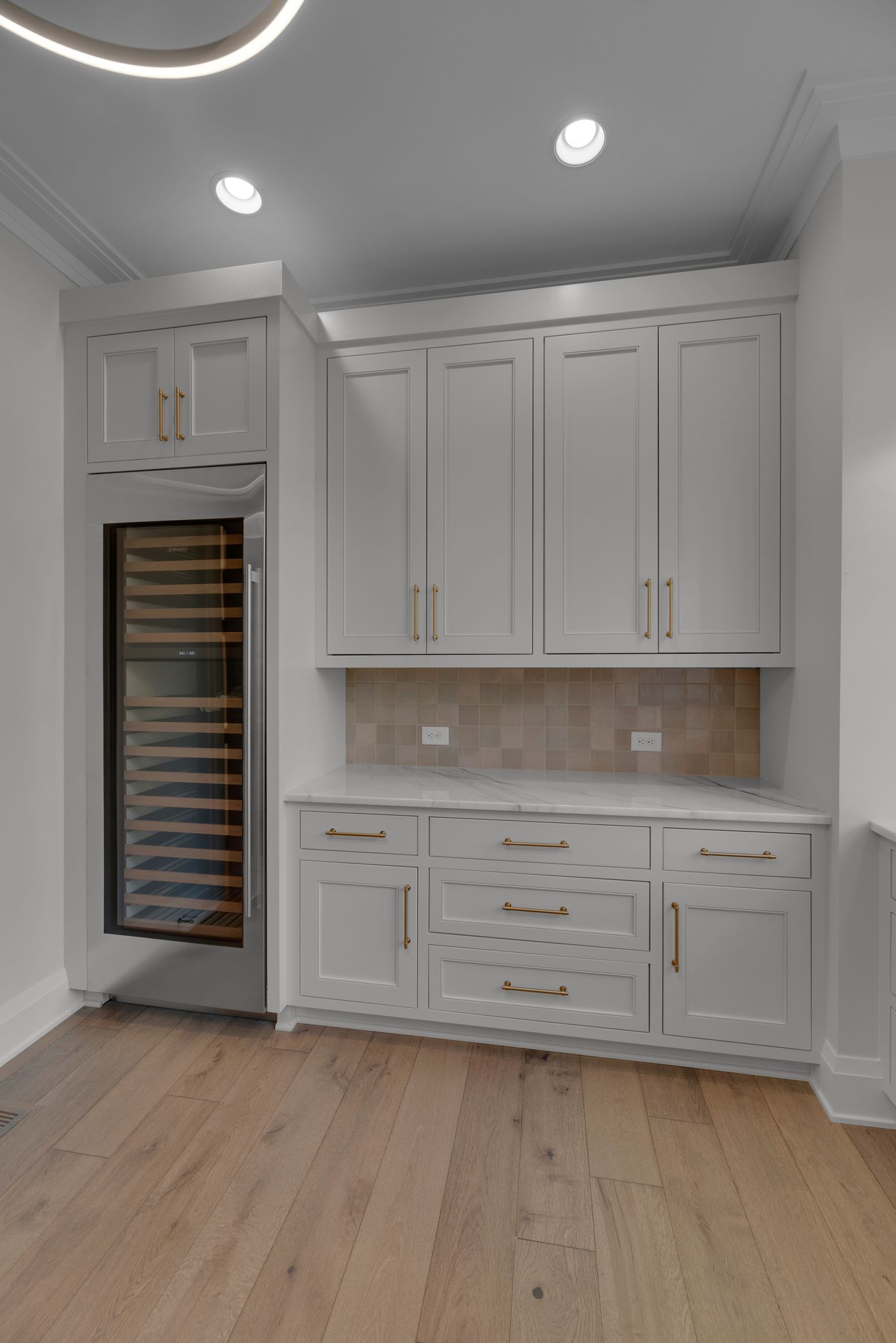

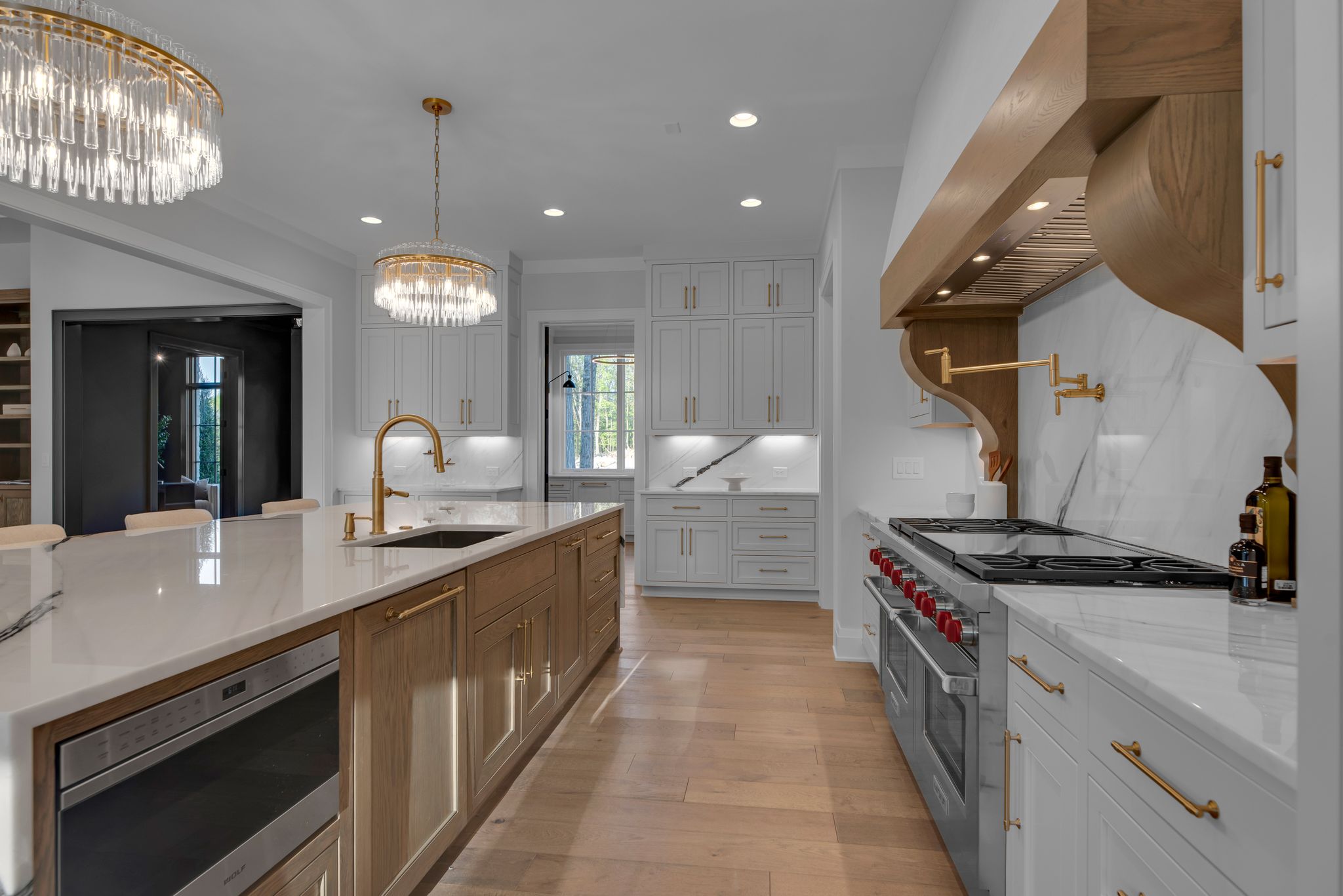

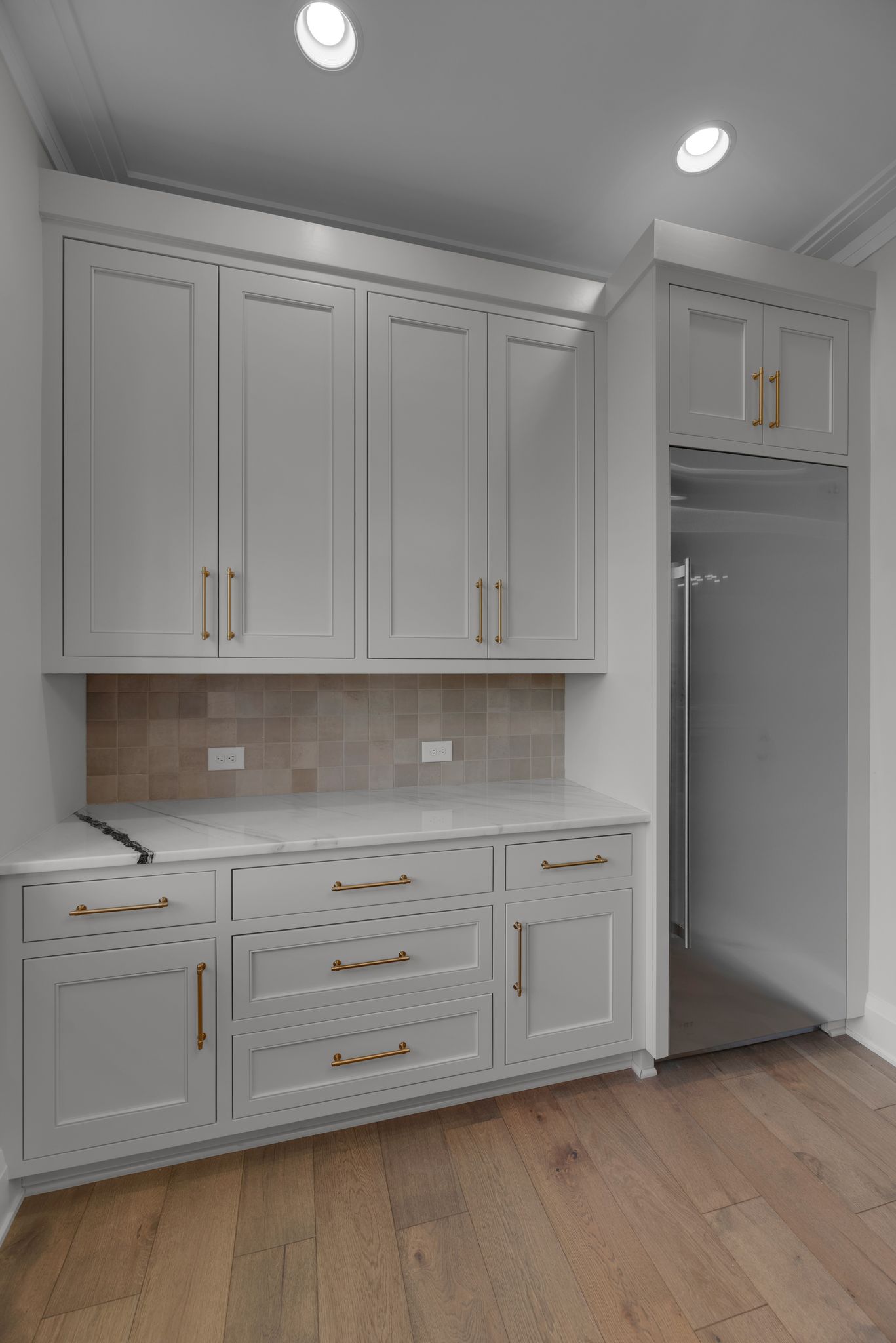

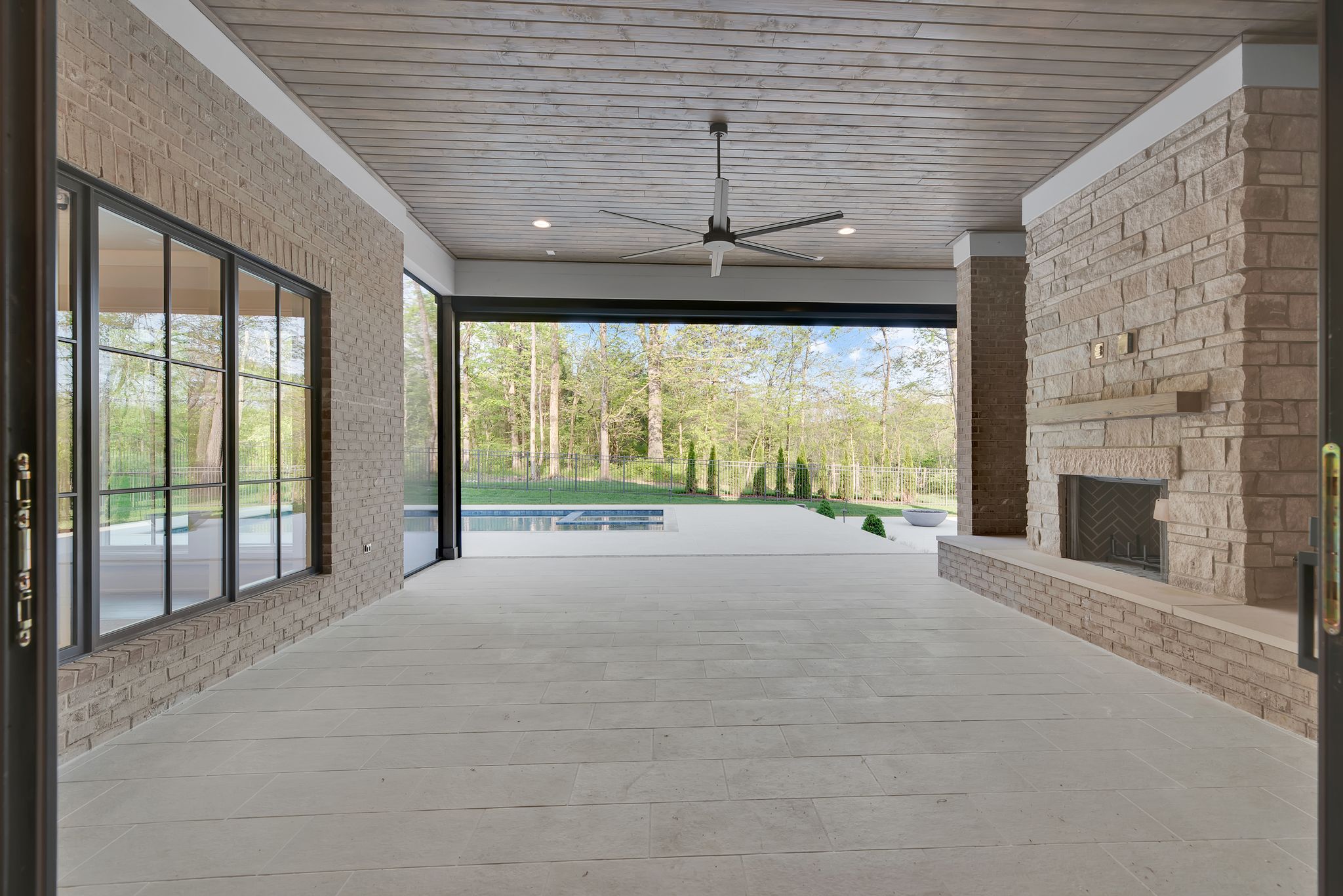

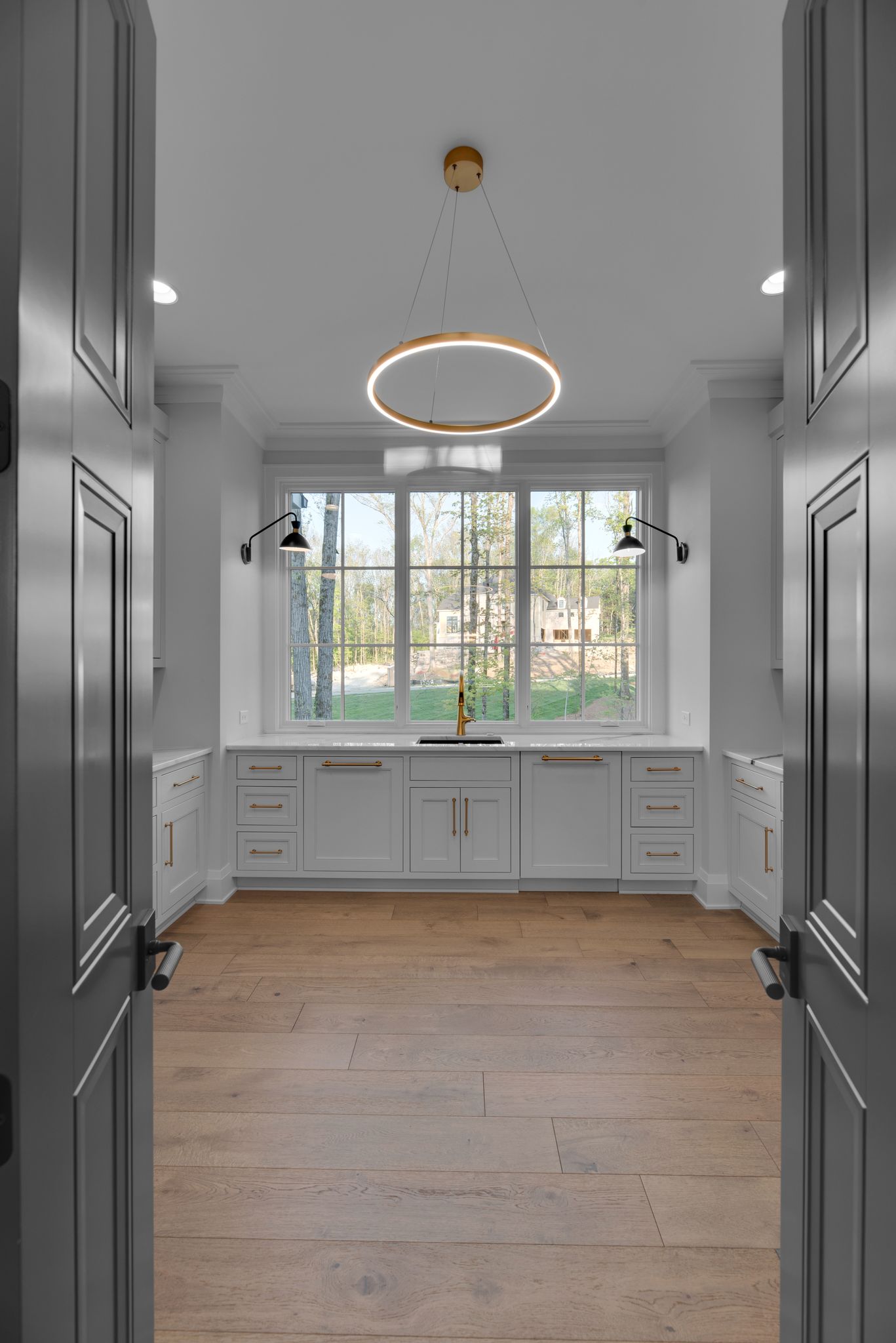

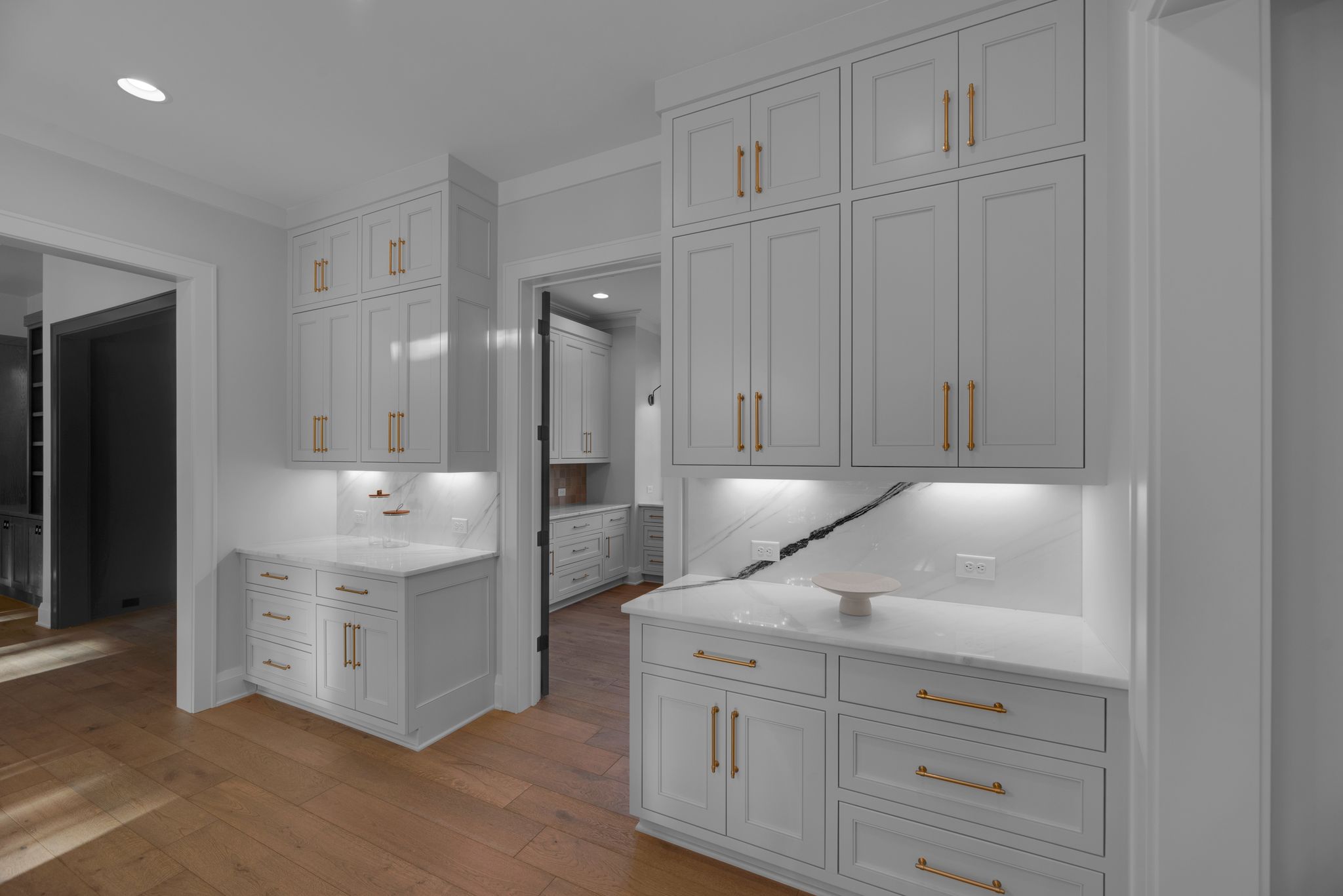

The Modern Tudor Melrose is a spacious home on two levels with custom features that will appeal to families of all sizes and stages of life. Entry through the double doors into the foyer immediately shows off the open concept family room and kitchen and the covered porch beyond. An office to the right of the pantry looks out over the front yard, with built-ins for storage and double doors for privacy. The family room features a fireplace flanked by shelving and a small refrigerator under an extra cabinet area, perfect for entertaining. The kitchen is open to the family room, with the dining room beyond. The spacious kitchen island seats six, with prep space and a sink, dishwasher, and warming drawer. The dining room has two walls of windows overlooking the patio and the rear covered porch, which has a generous seating area and a fireplace. Ready for a pool, a half bath is accessible here from outside, including a convenient changing area.  A special feature of this home is the spacious working pantry. With entry hidden in the cabinets, this room allows for so much more than food storage. An extra refrigerator, dishwasher, and sink are joined by wine storage, plenty of cabinets, and an island. A hallway behind the kitchen leads to stairs to the second level, a coat closet, a powder room, and the guest suite beyond. Overlooking the backyard, the guest suite has a private full bath and a walk-in closet. Close to the garage and the friend’s entry, this bedroom is ideal for parents and in-laws who are just visiting or staying a while. The laundry room is between the kitchen and the friend’s entry, and the study with a unique fireplace and a full bath and walk in closet is in the ideal spot for a home office or a library. The three-car garage boasts a storm shelter that is accessible from both the garage and the inside of the home by the mud room. In the opposite corner of the home, the primary suite spans from the back to the front of the house. This bedroom overlooks the backyard, and the bath features dual vanities, a spacious walk-through shower, a six-foot soaking tub, and a private toilet. His and hers closets provide ample space for year round wardrobes.

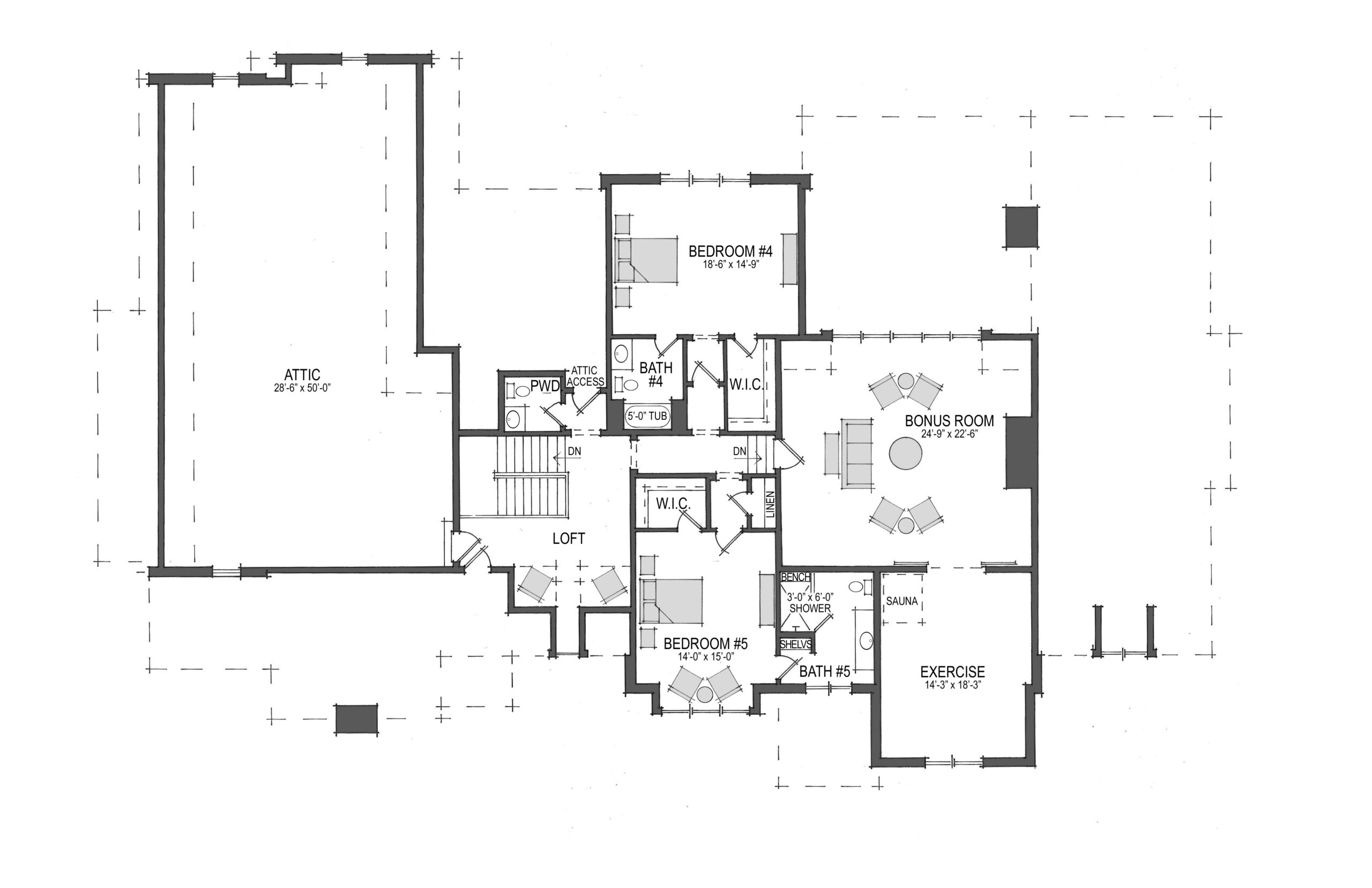

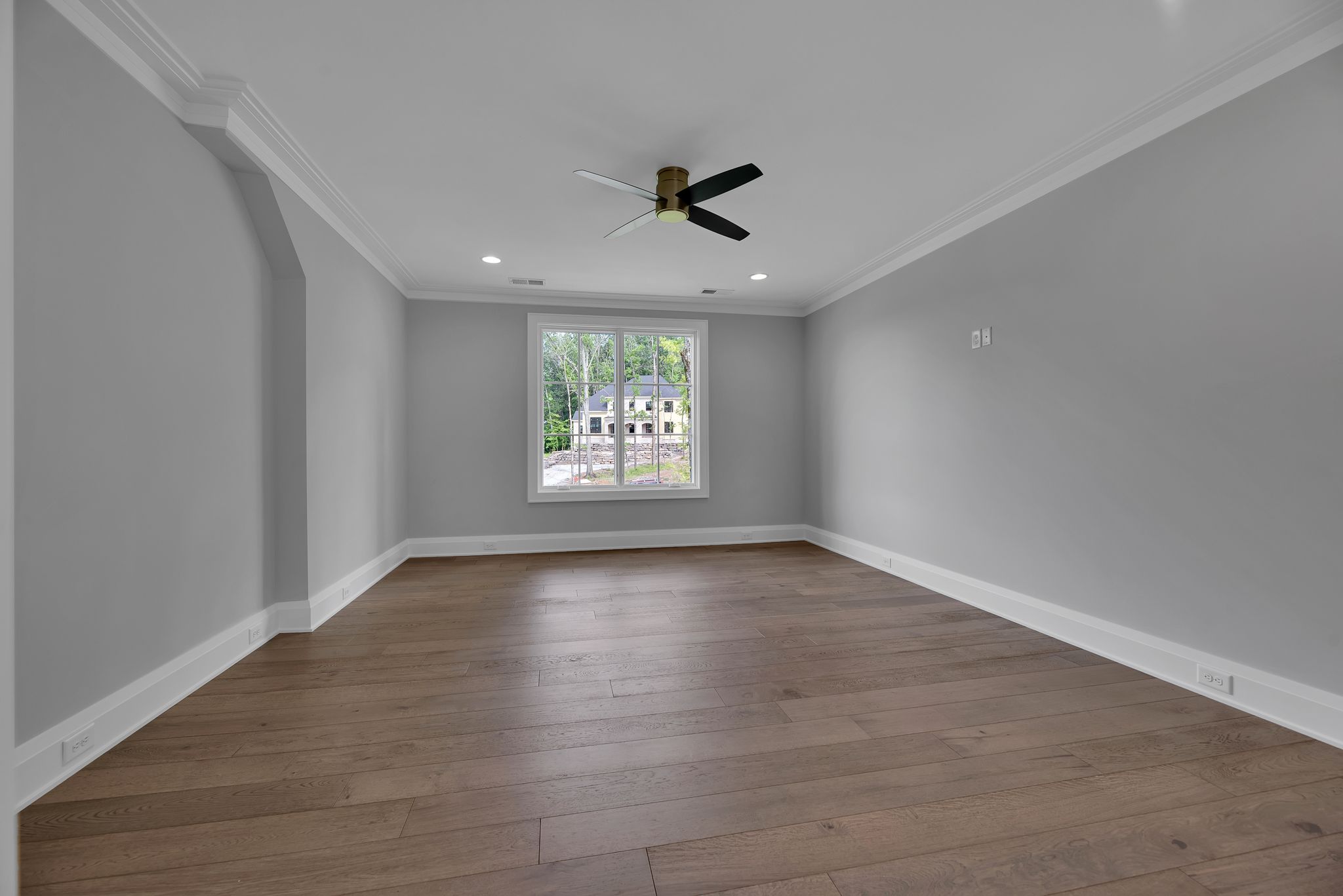

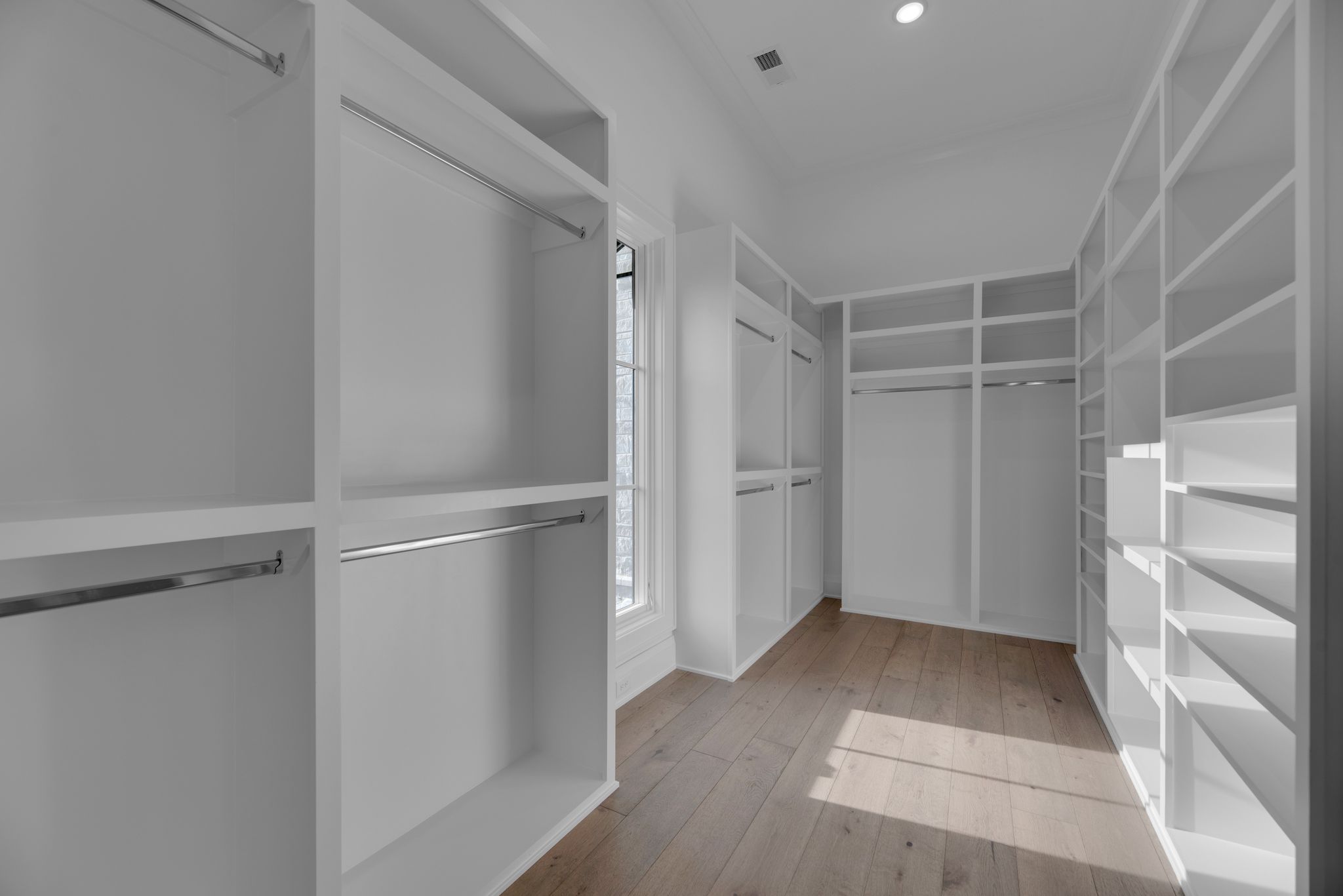

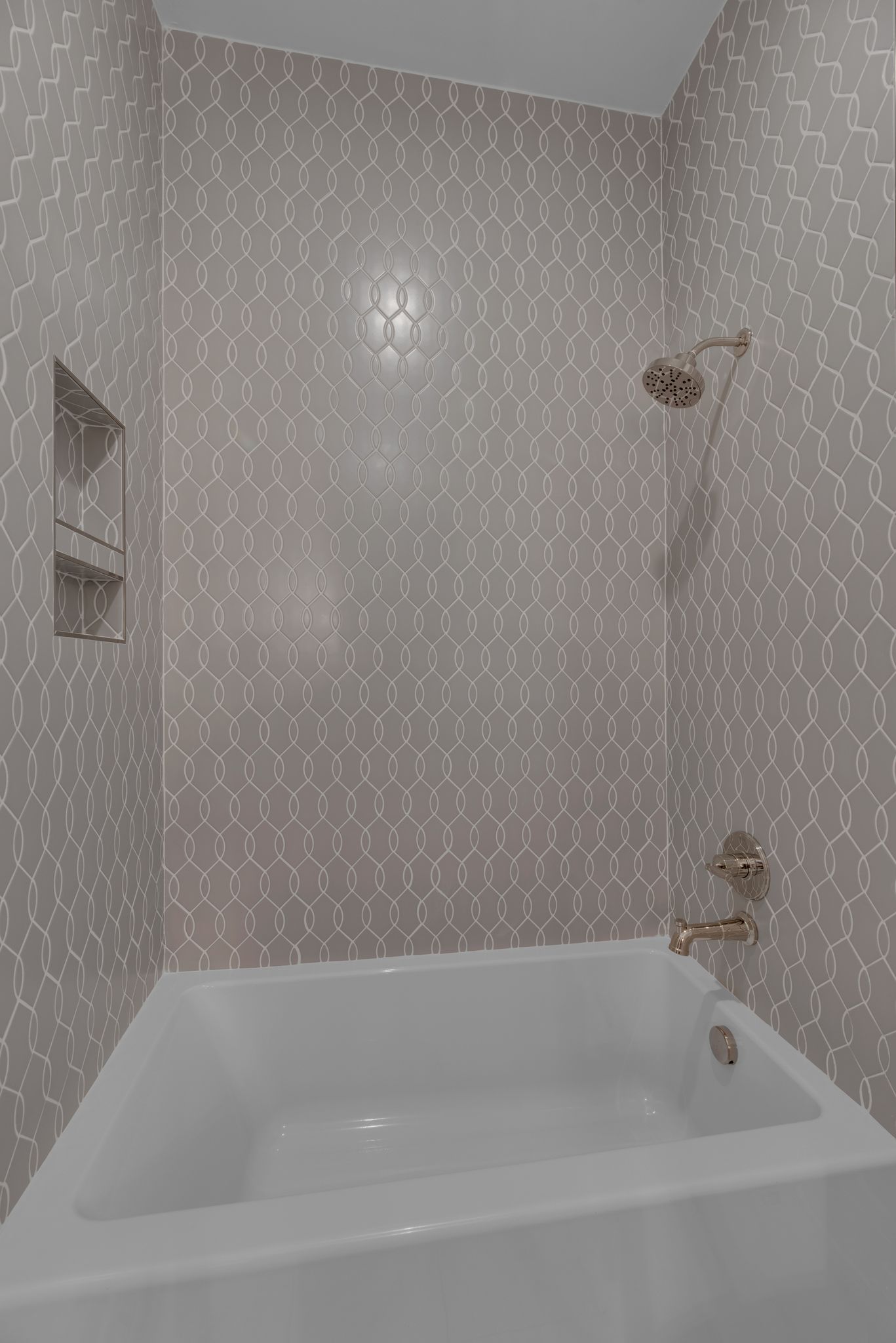

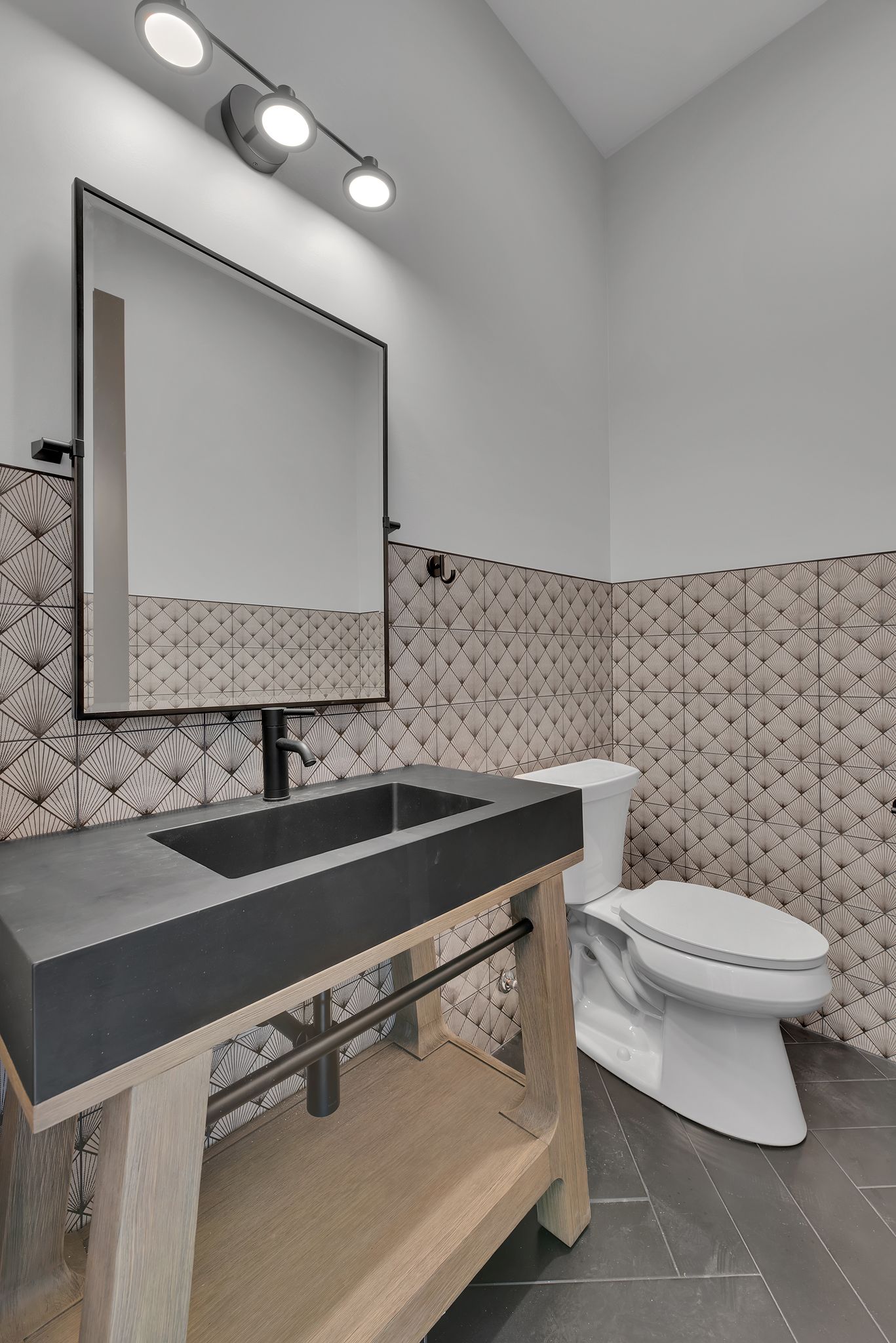

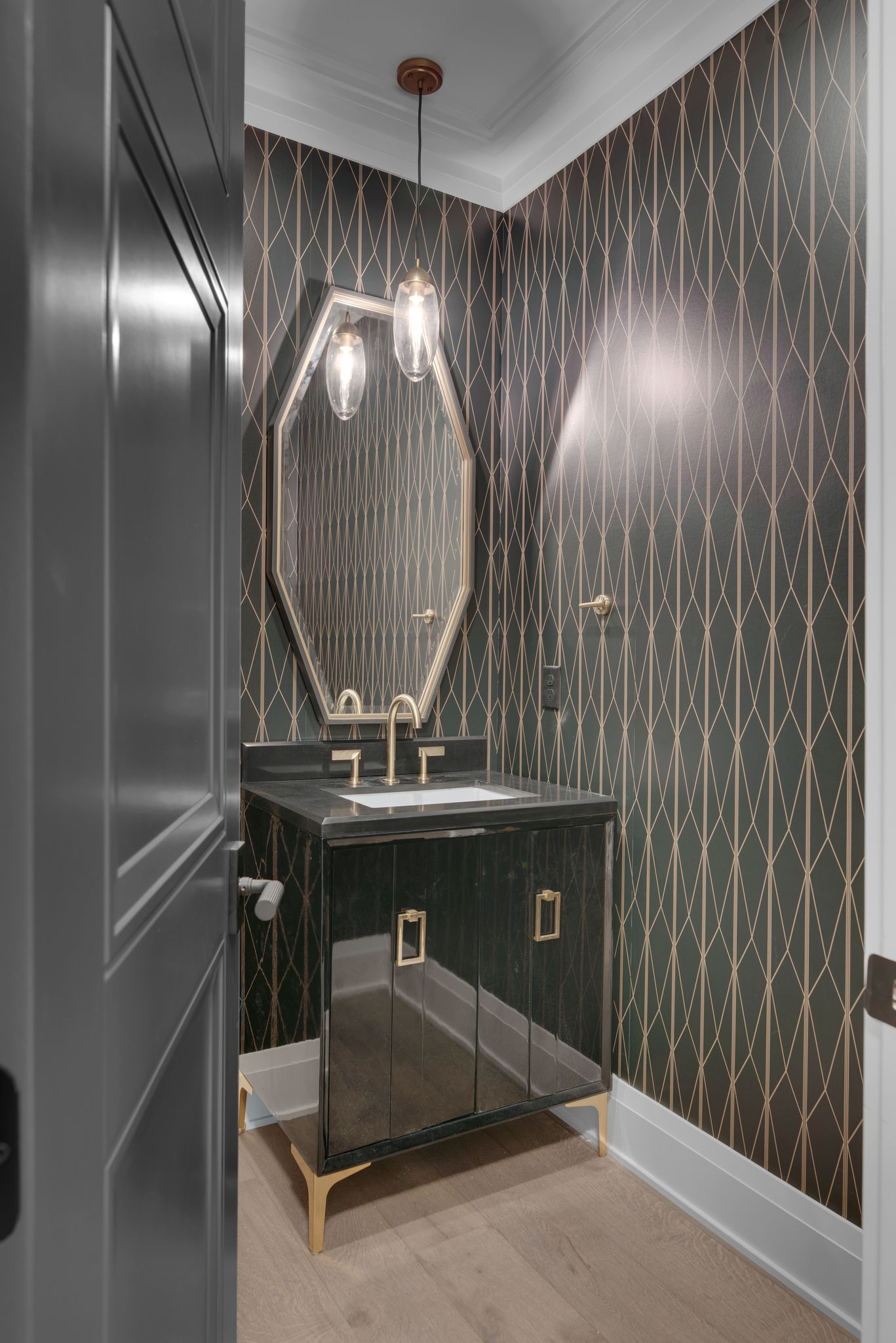

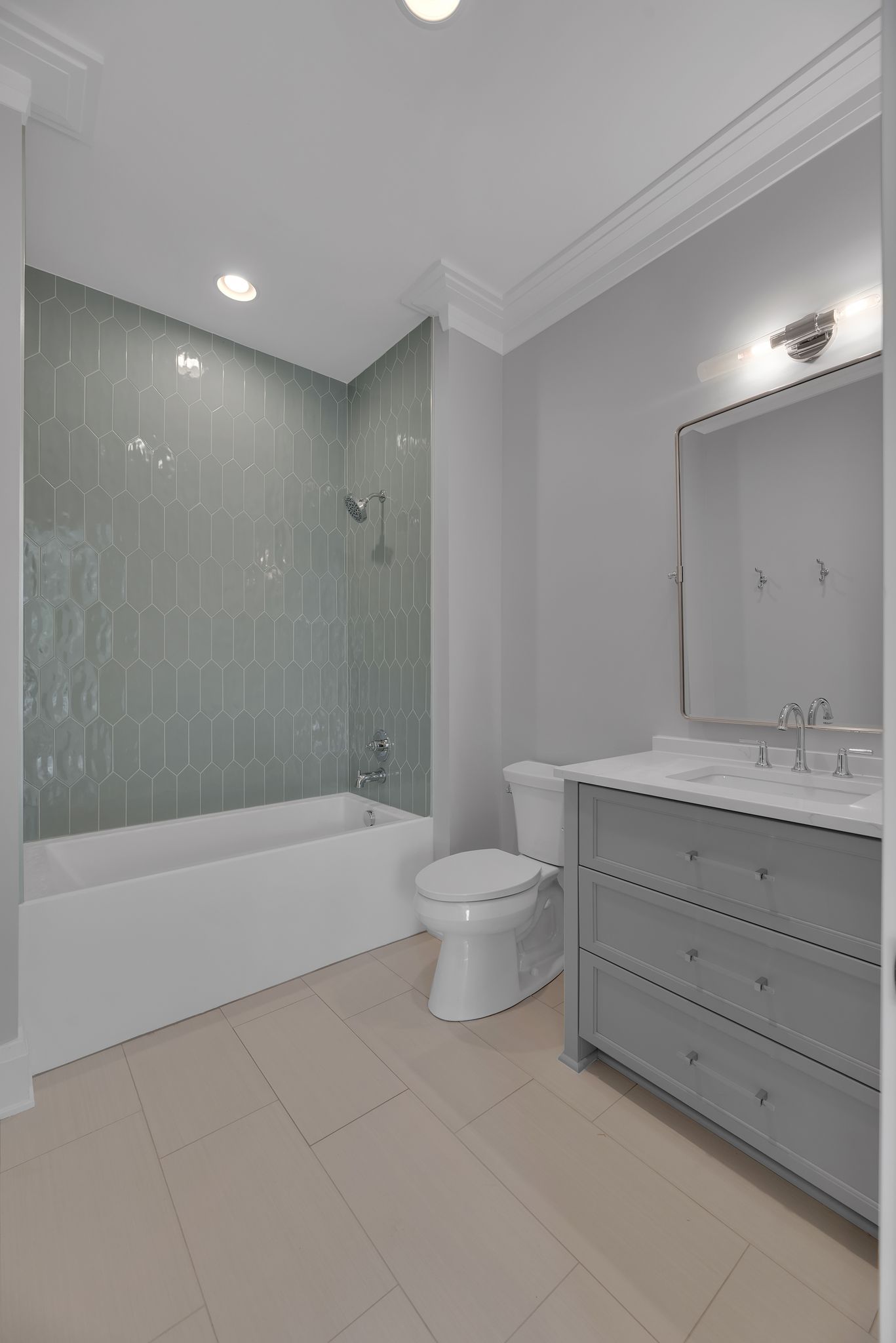

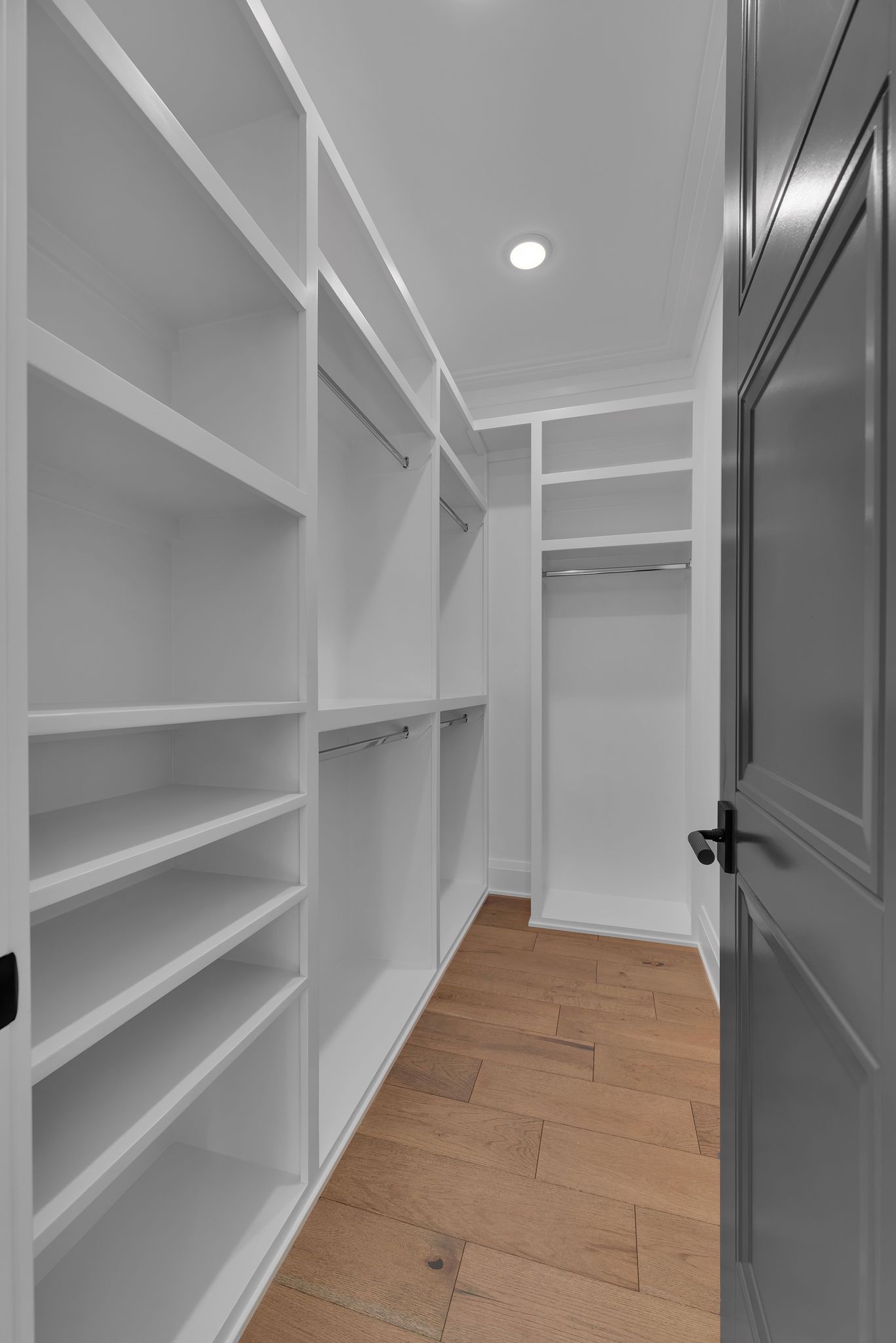

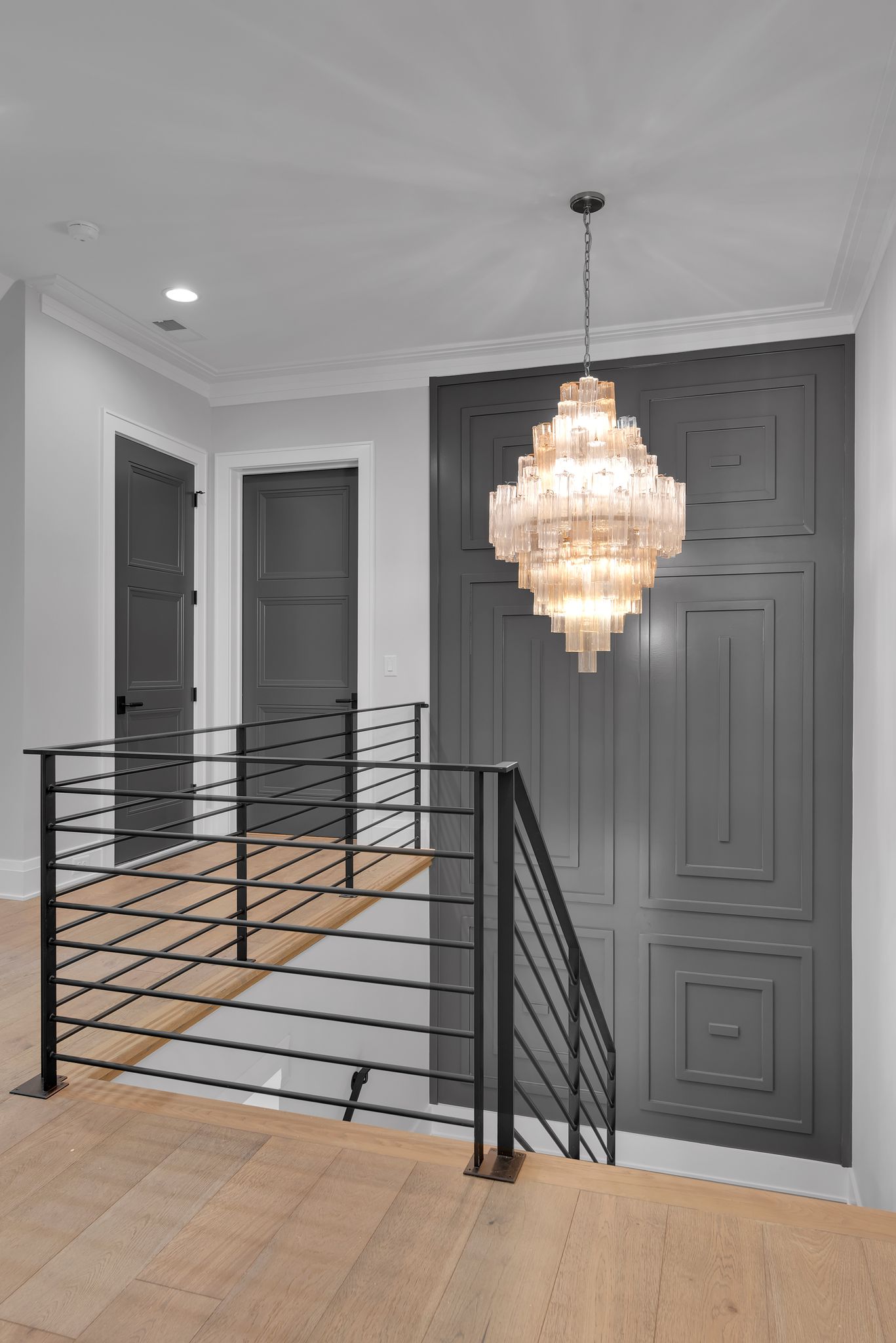

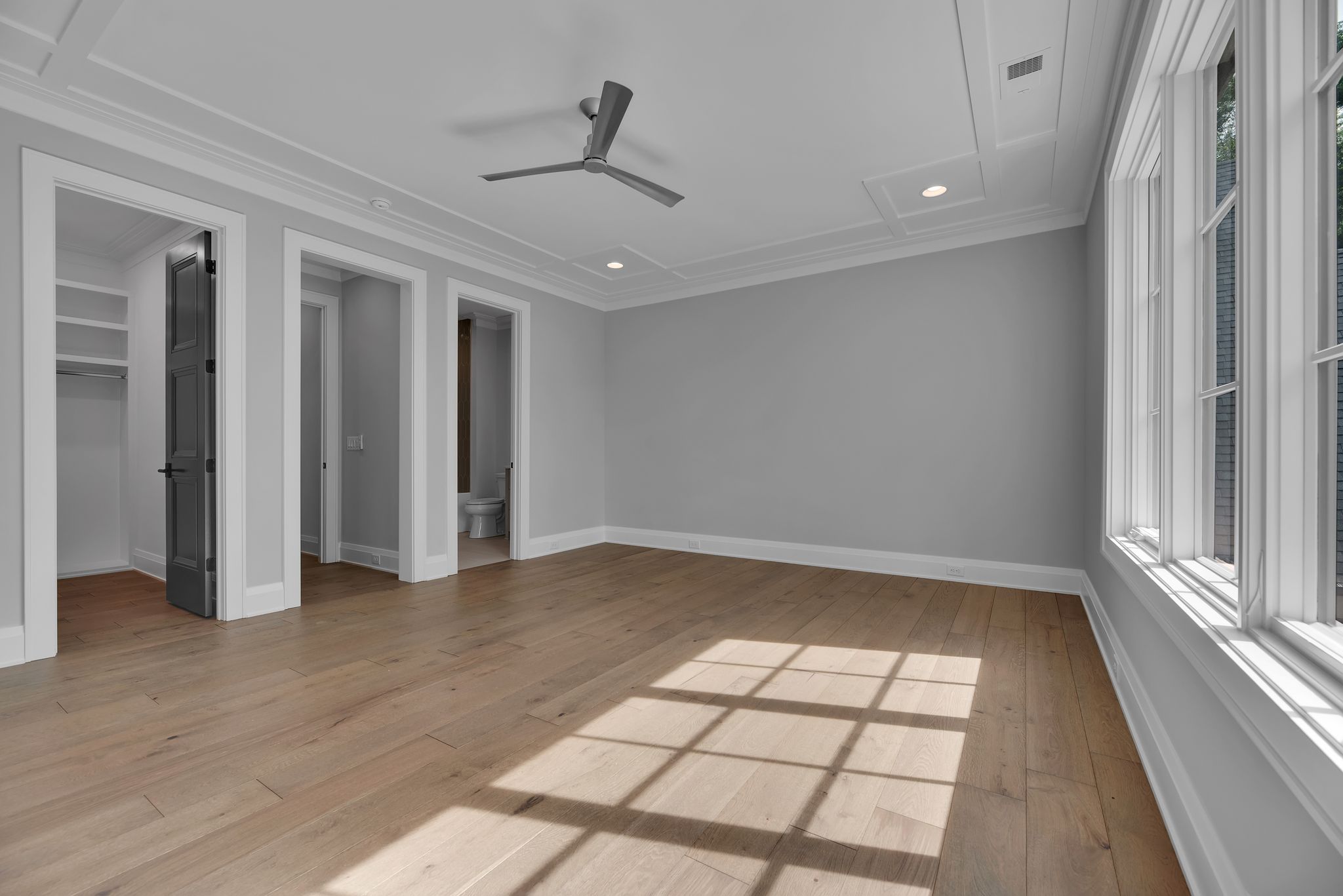

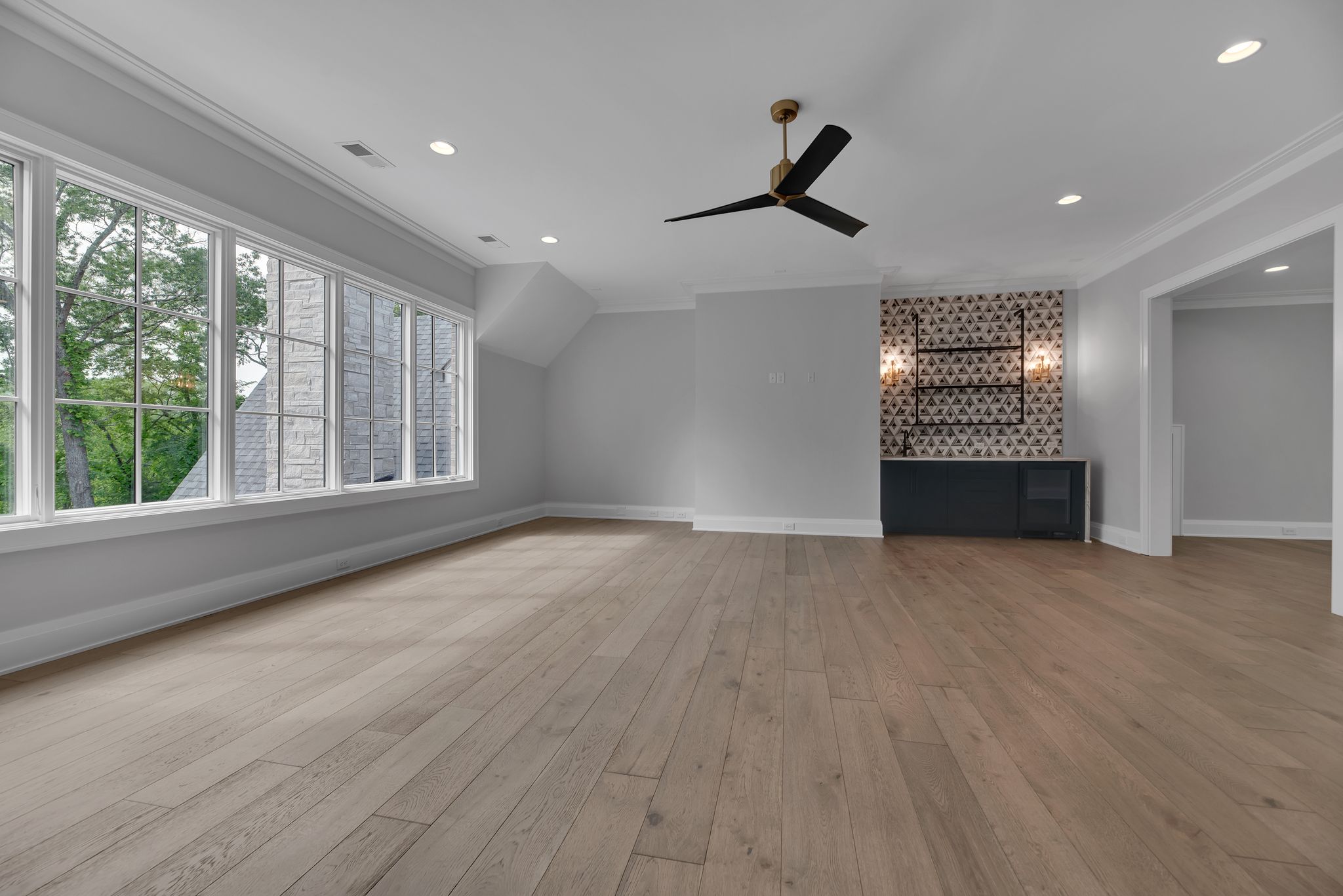

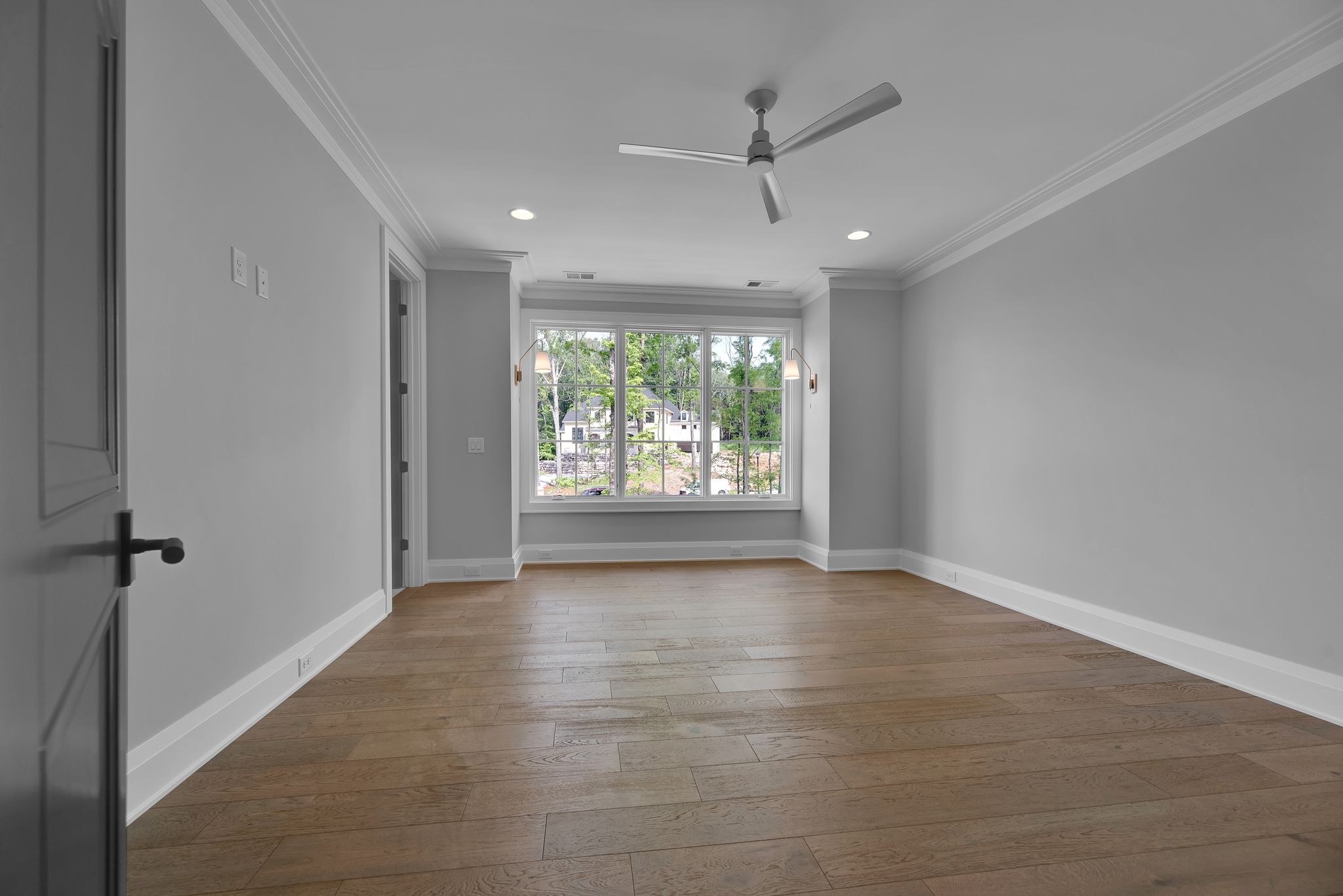

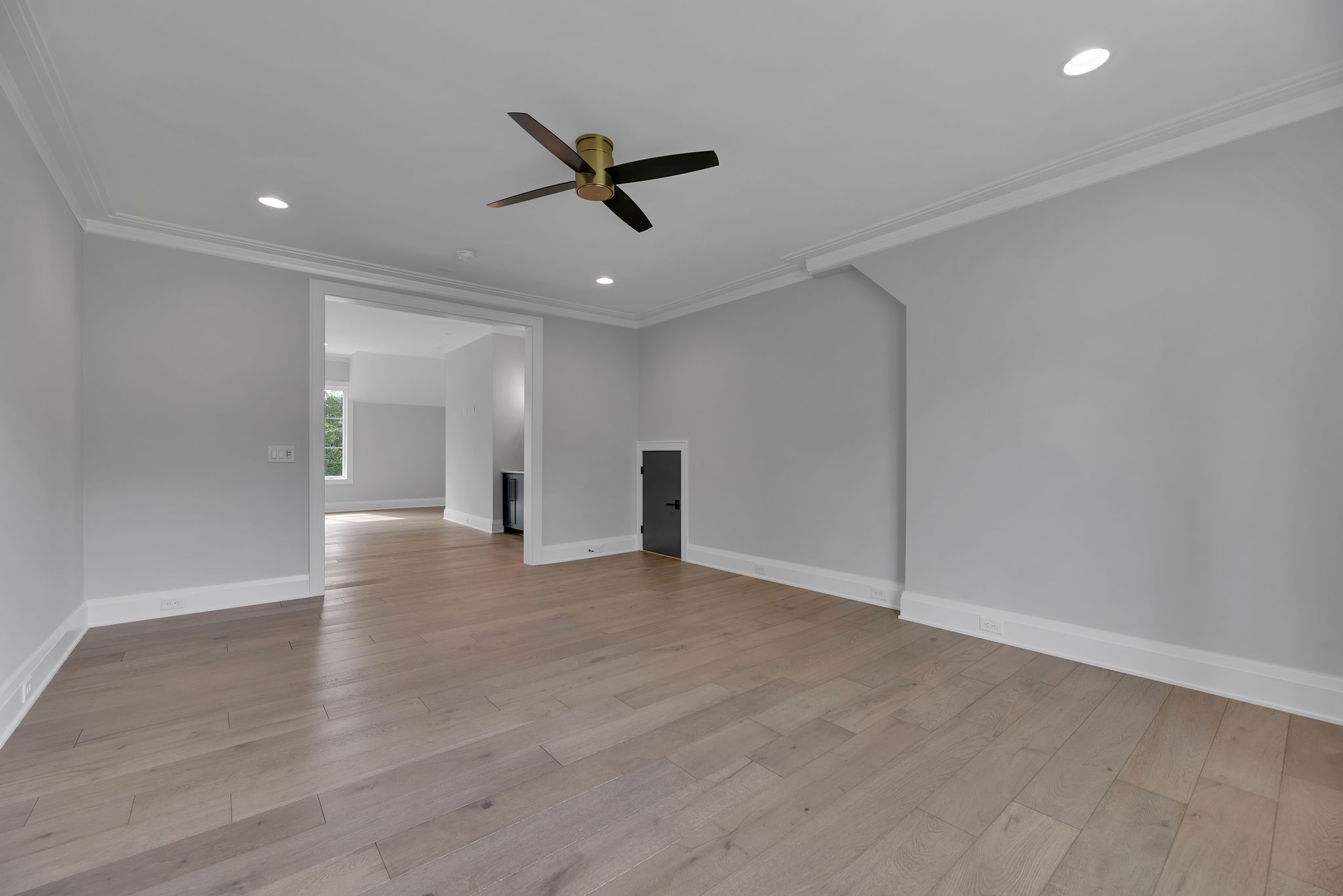

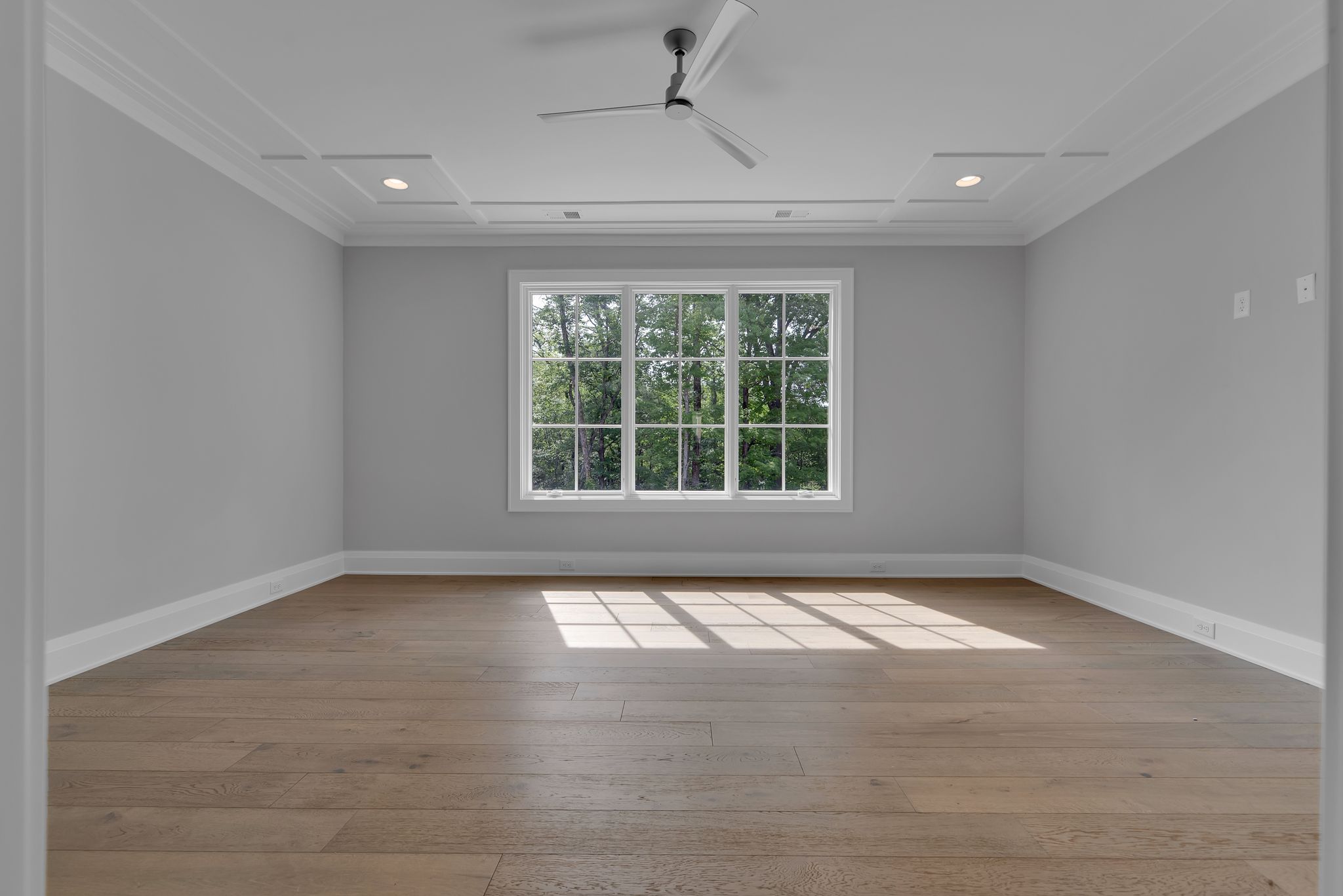

Upstairs, the loft provides a fun spot to read or do homework. Two bedrooms each have full baths and walk in closets. A few steps down to the bonus room reveal a large space with plenty of room for playing games and watching movies, and the adjacent exercise room can be closed off with sliding doors when desired. A powder room and walk-in attic access complete the second level of this spacious home.

At a Glance
  • 6,584 sq. ft.

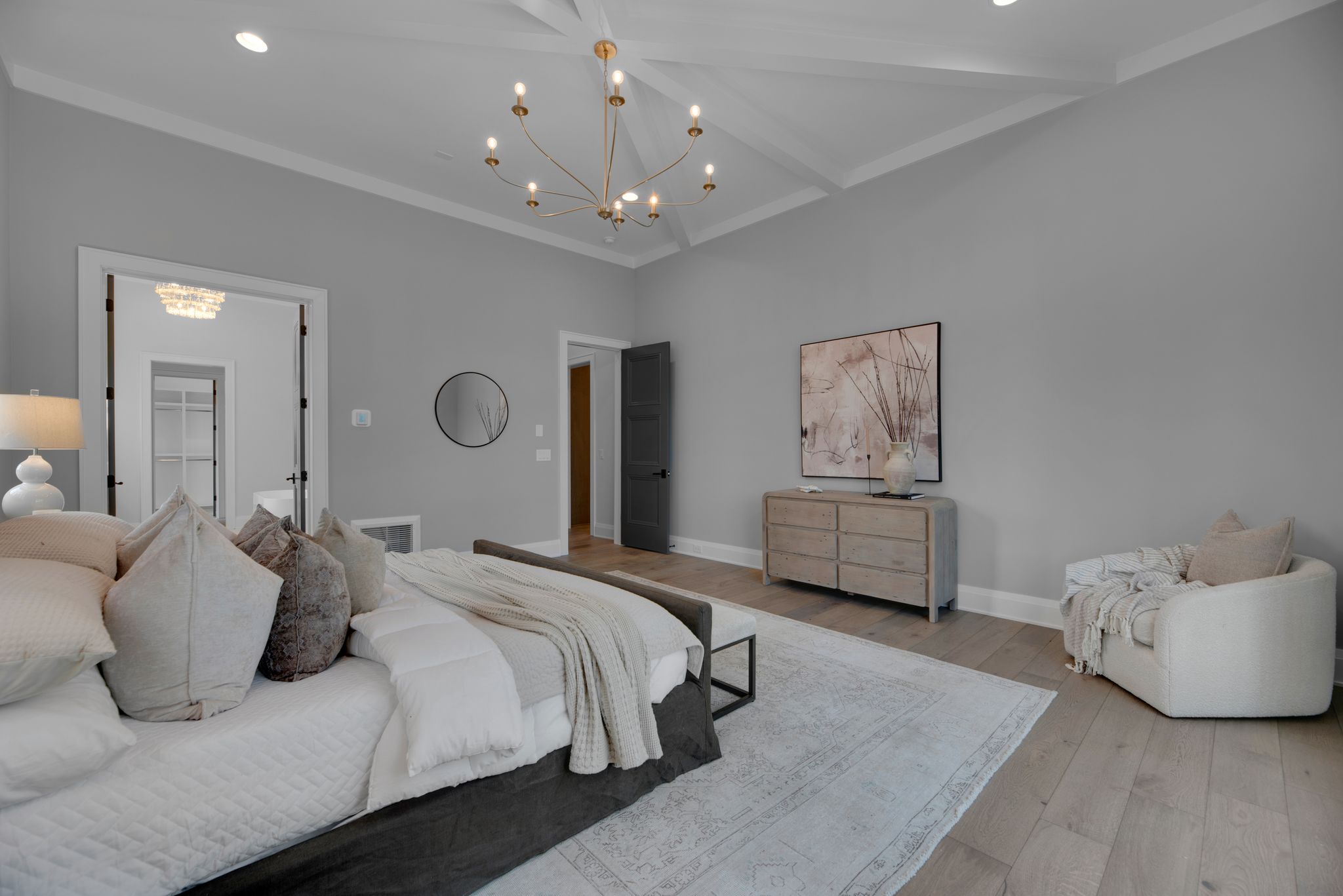

  • 5 Bedrooms, 5 and 2-half bathrooms – primary and guest suite on main level

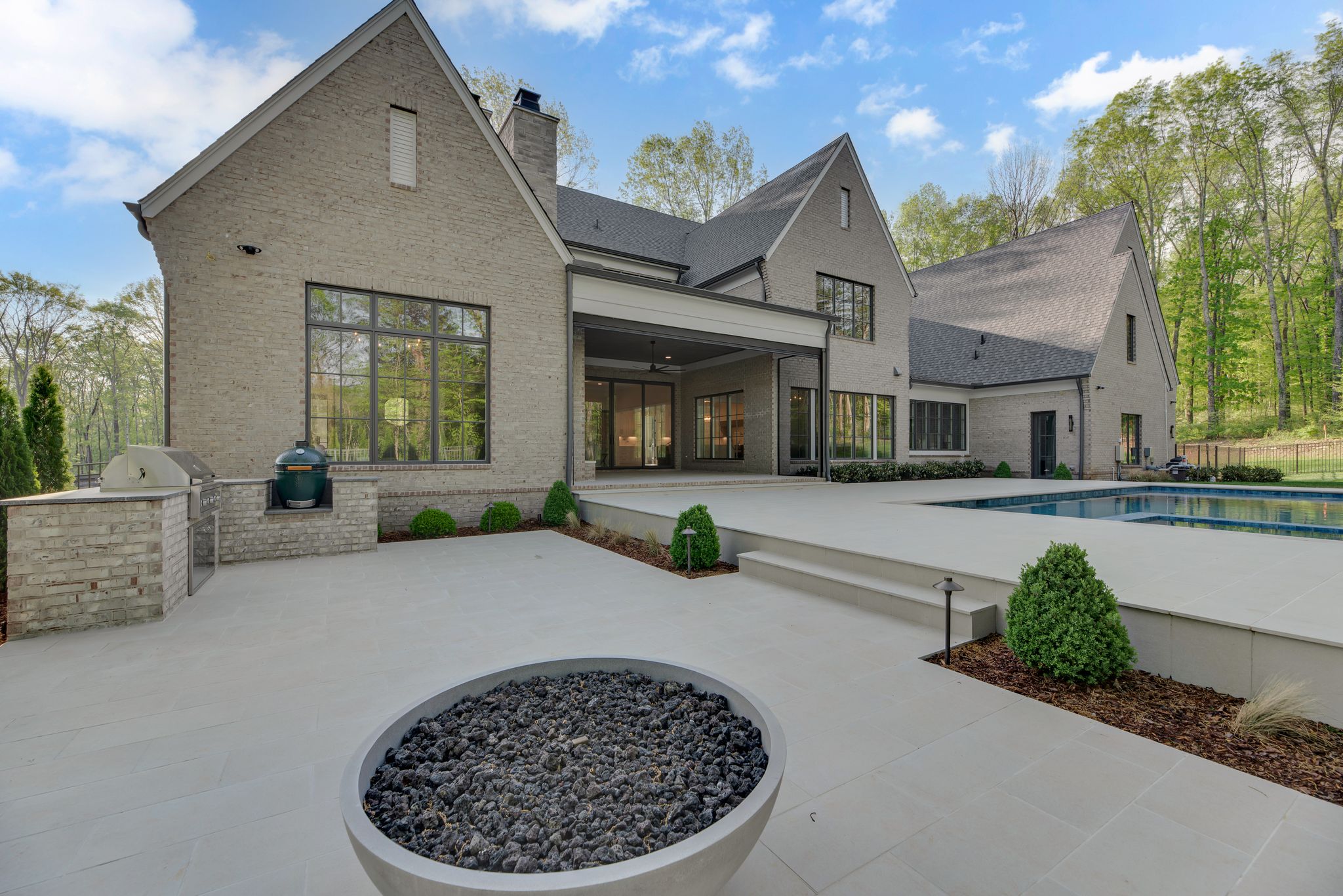

  • Large rear covered porch with patio

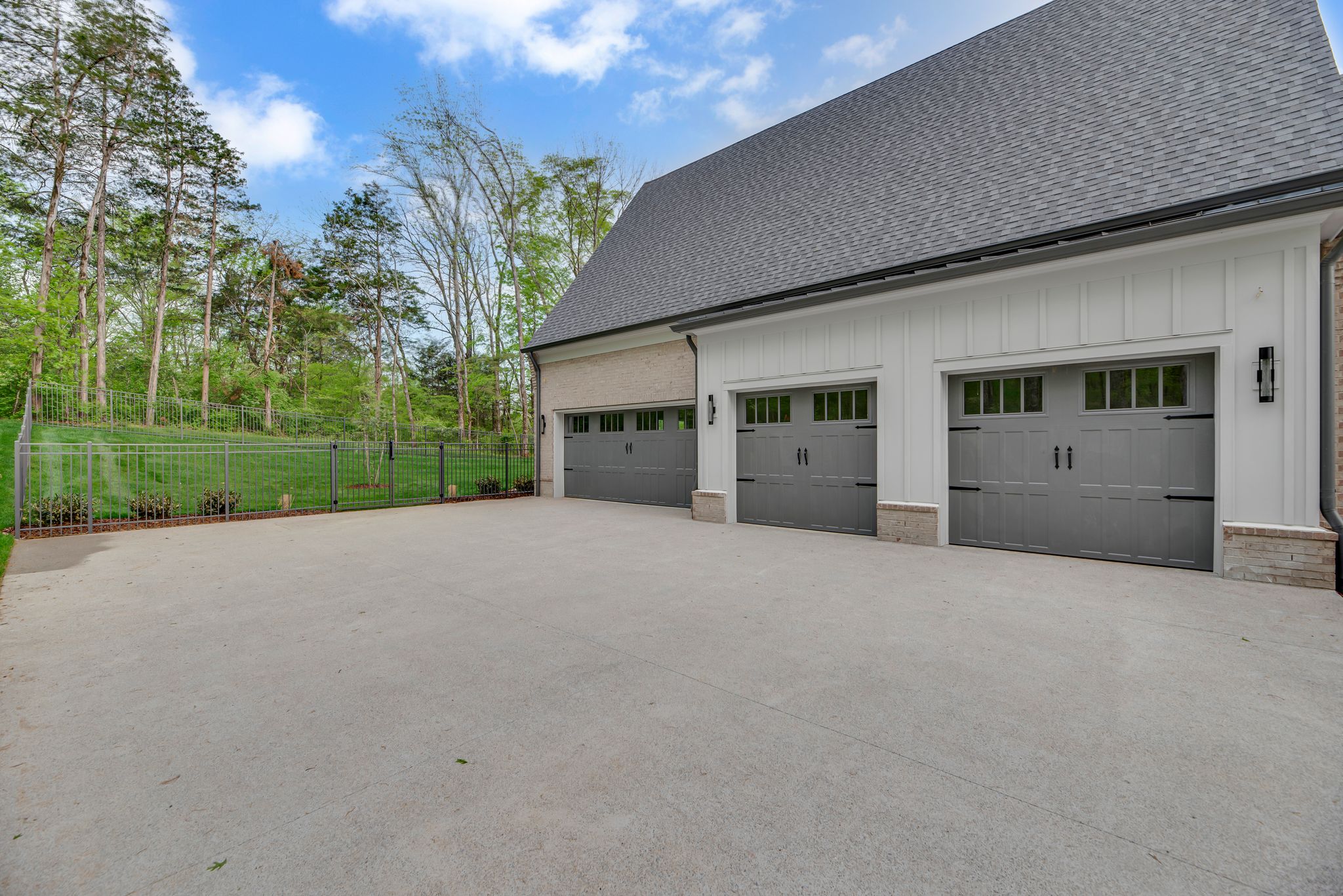

  • Three car garage

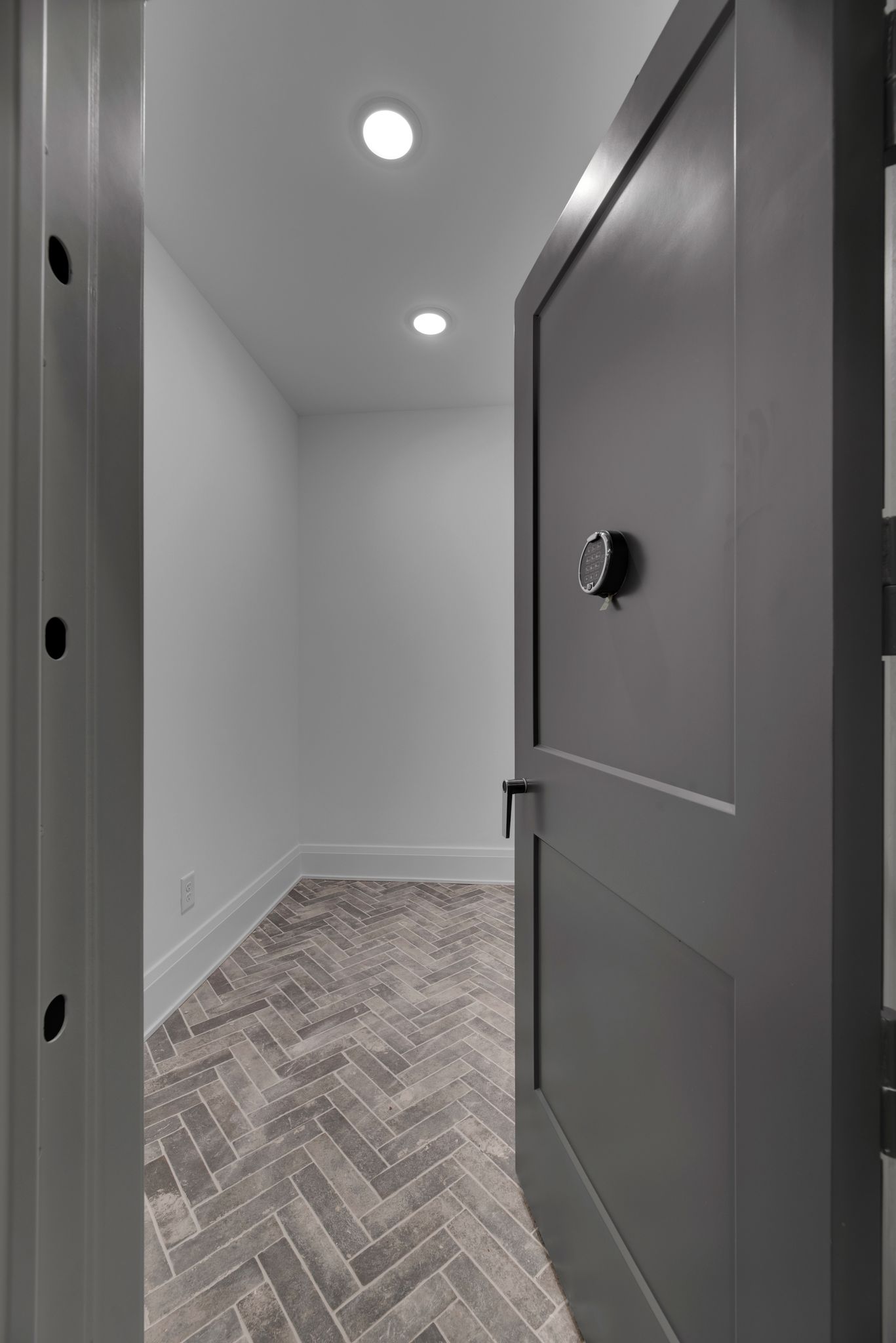

  • Storm shelter

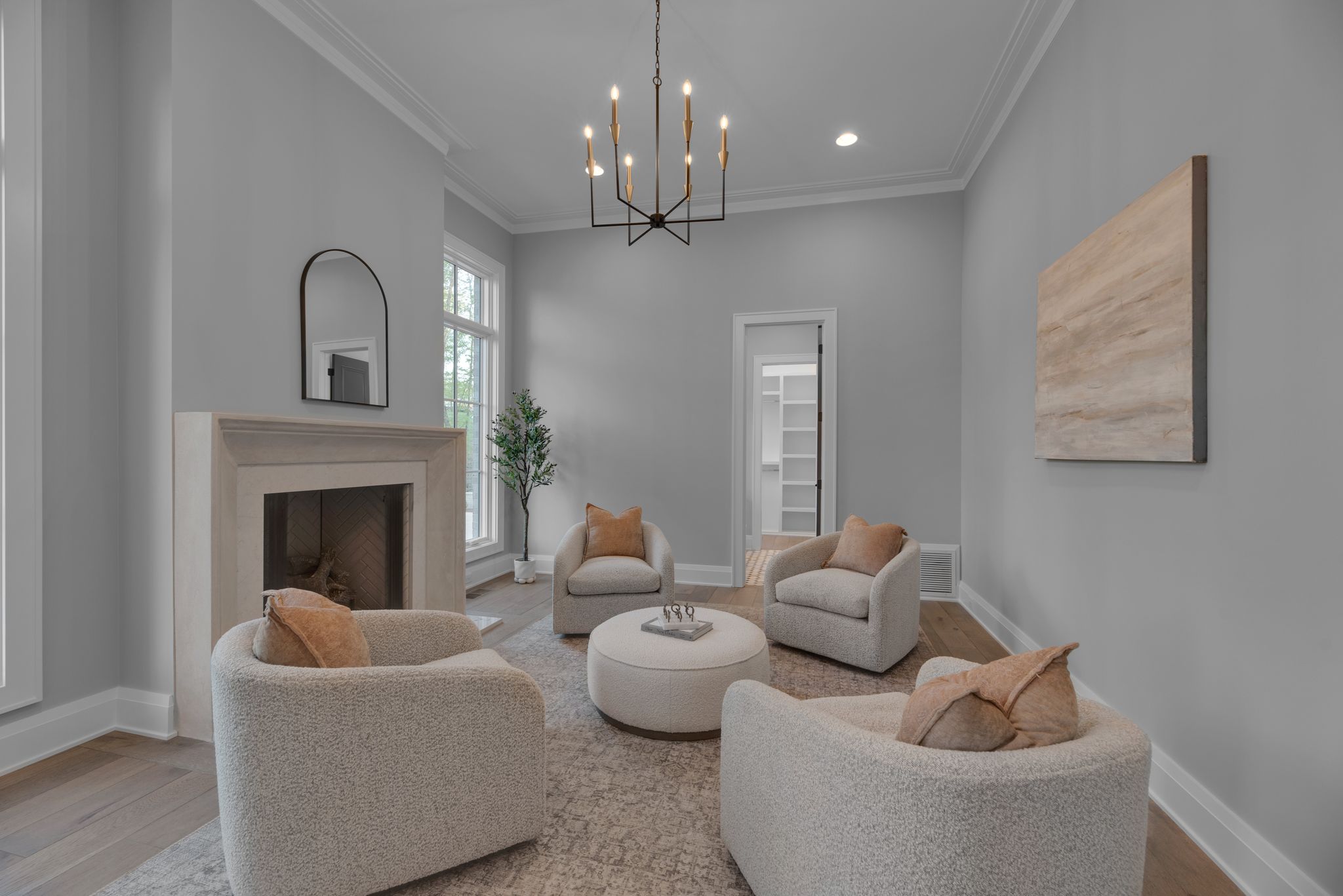

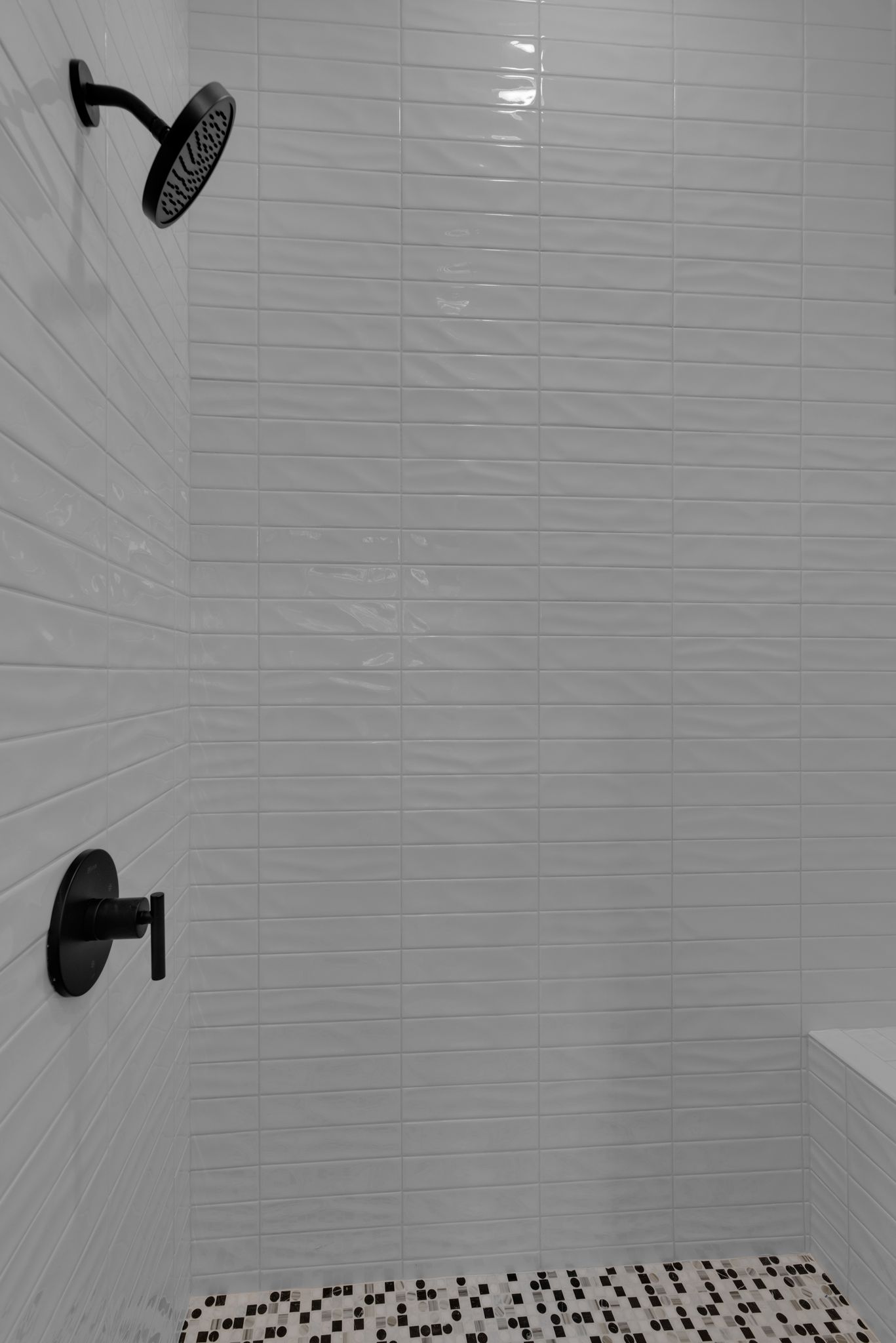

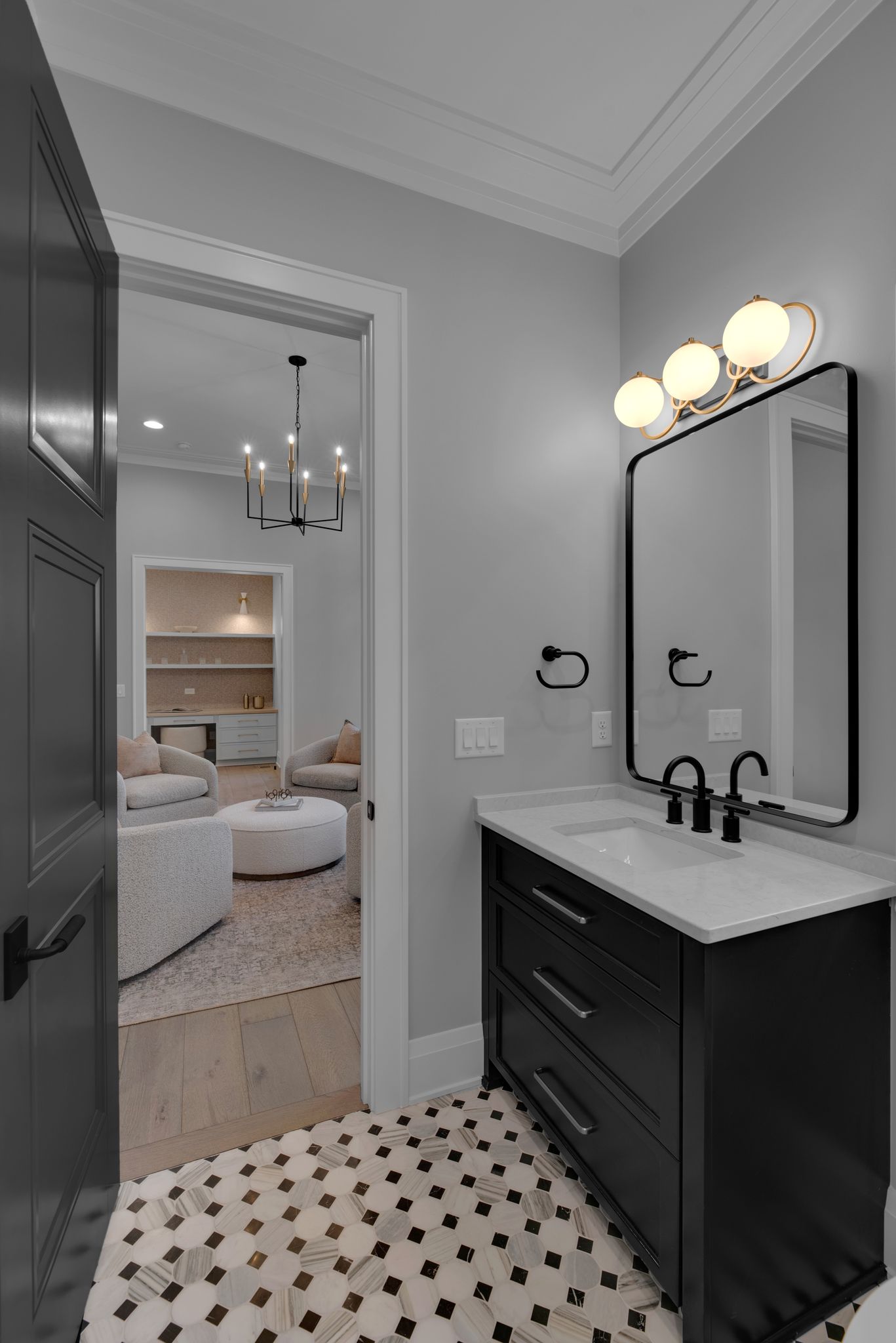

  • Front-facing study with fireplace and dedicated bath
  • Working pantry
  • Bonus room and exercise room on second floor
Purchase Options

Sailer Design has been honored to be the architect for a number of Southern Living Showcase Homes. Part of this honor means this particular plan is exclusively available through

We do! You can view all Sailer Design plans sold exclusively on here: Southern Living House Plans →

Purchase Plan

This plan is available as a Southern Living house plan.

Purchase Brochure

Or purchase a Printable Brochure here on

$15.00 $6,584.00

Your purchase of a Sailer Design plan includes the foundation plan, floor plans, all exterior elevations, and cornice details. Learn more →
We’d love to modify our plan to meet your needs. Many of our plans already include future expandable space. While it is easier to increase the square footage of a plan than it is to eliminate square footage, some of our plans can be made smaller. Contact us with your request and for a quote for these changes. Personalize this Plan →

Yes, we can flip the plan to meet your needs. For example, if the plan has the garage on the right side, but you need the garage on the left, we can reverse it.

Building costs vary greatly by region. We suggest consulting with a local builder to provide a building cost estimate.
Purchase Plan
Personalize This PLan
Ask a Question

We would love to answer any questions you may have!

If it is easier to call:

"*" indicates required fields

How would you prefer to be contacted?
Are you building in Middle TN?*
This field is for validation purposes and should be left unchanged.

What's Included

Foundation Plan – ¼” scale

Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.

First Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Second Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Roof Plan – ¼” scale

Documentation of the proposed roof form indicating slopes and special roof structures and their locations.

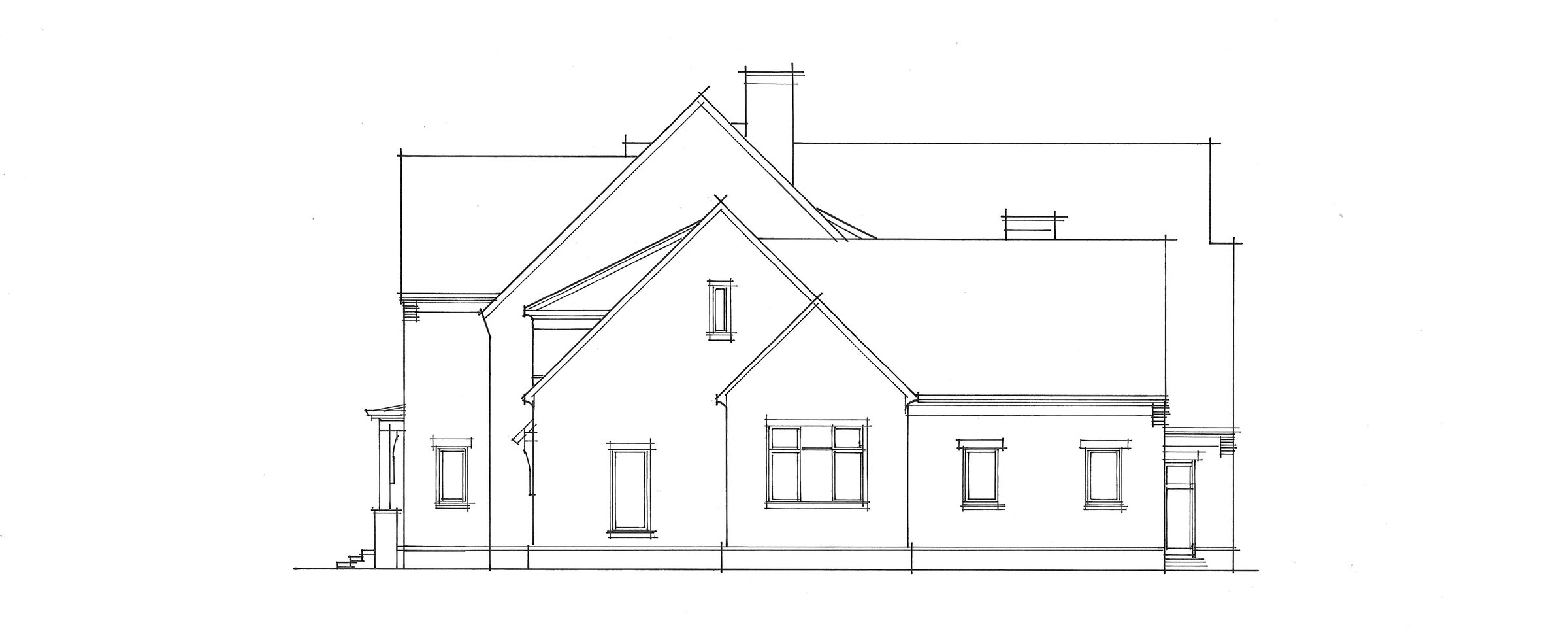

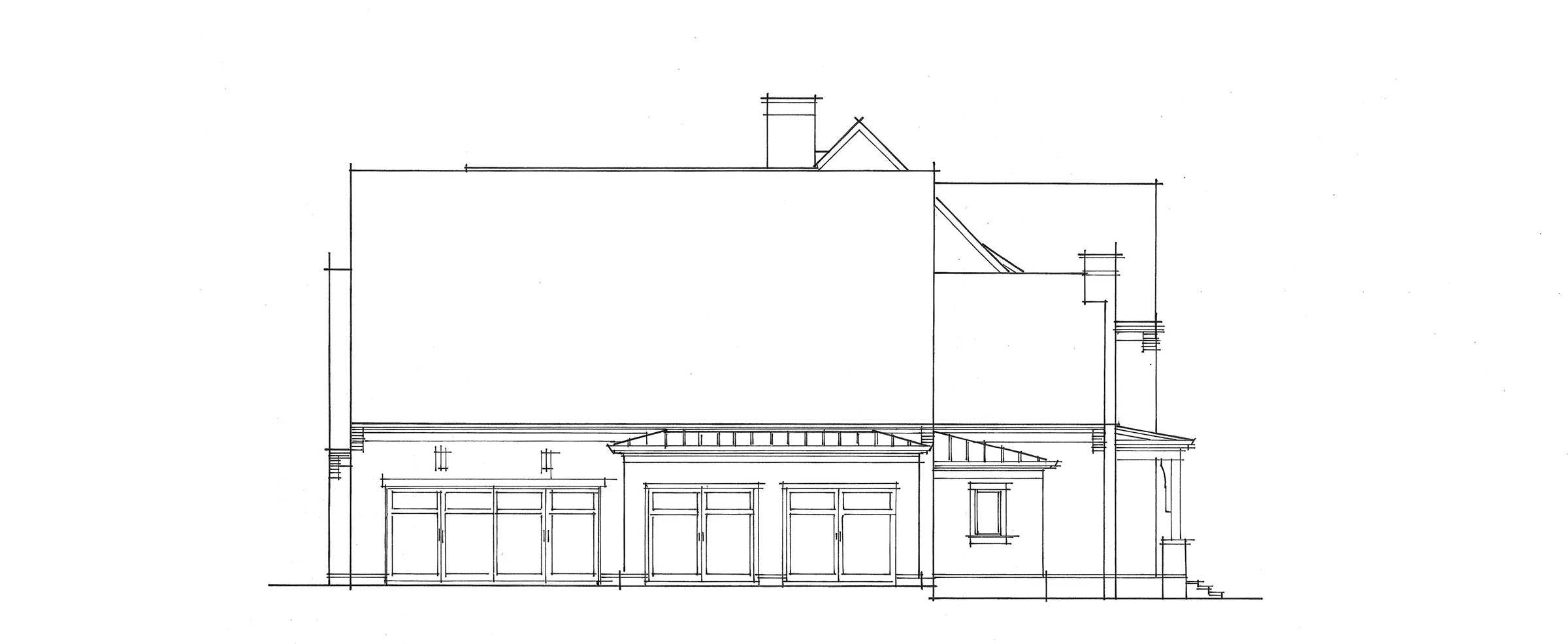

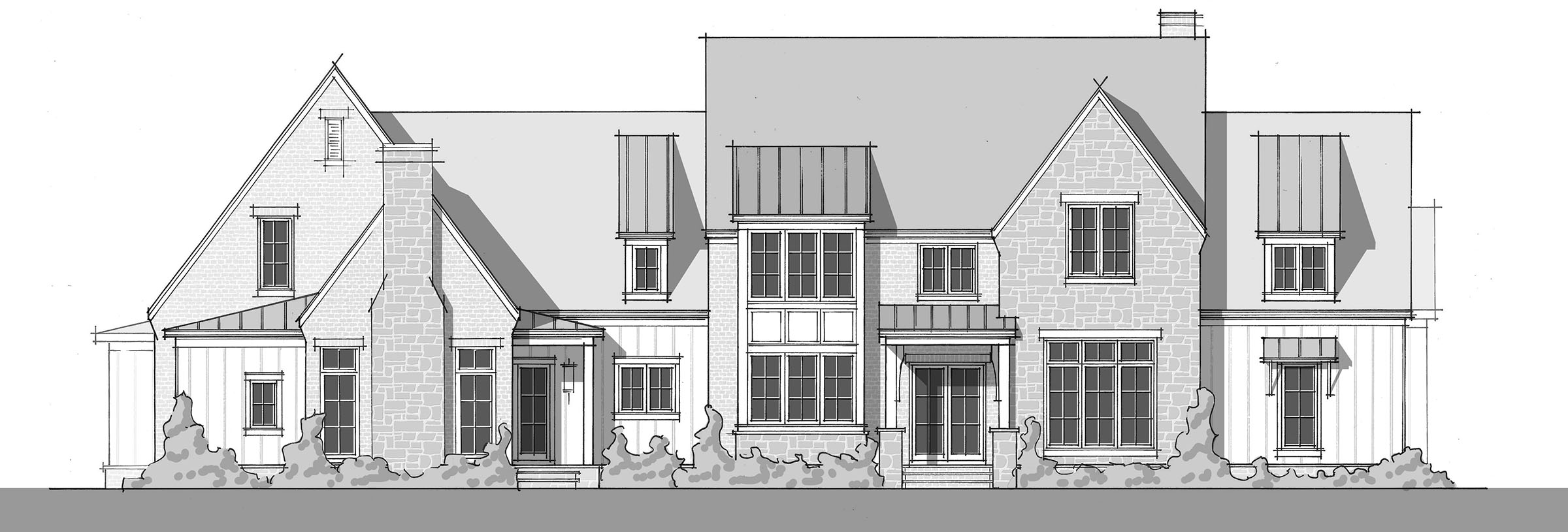

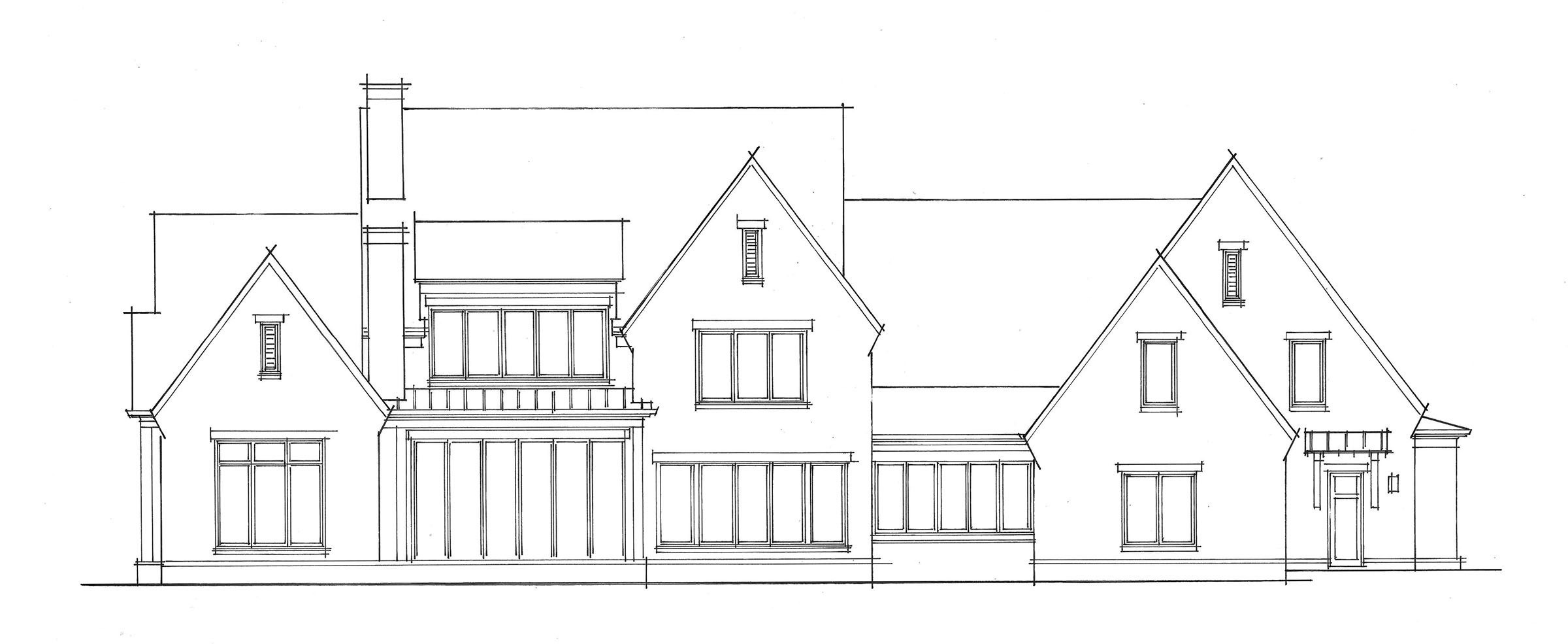

Elevations – ¼” scale

Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.

Building Details – 1” scale

Selected exterior details (cornice details, porch details, etc.).

What's Not Included

Architectural and Engineering stamps

Some cities and states require a licensed architect or engineer to review and stamp a set of Construction Documents. If your local building department requires one, you will need to engage a local architect or engineer for review and stamping.

Site-specific foundation plan

The included foundation plan is meant to serve as a basic guide for a typical foundation and is not site or location-specific. Sailer Design LLC recommends that you have a local designer or licensed engineer to review the plans and provide a site-specific foundation plan as necessary.

Heating, plumbing and electrical plans

Due to variations in climate and building codes, these should be supplied by local contractors. We suggest you have a local electrical engineer, mechanical engineer, or builder provide these drawings as required for permits and construction.

Material quantity list

Once your personal selections are made (types of windows, doors, exterior materials, etc…) this list should be obtained from your contractor or local building materials supplier.

Material selections

Final material selections are the responsibility of you and your builder, including proper installation.

Construction Documents

Our home plan packages offer a complete design of our homes. However, due to the uniqueness of each building site, our Construction Documents are not fully engineered to meet the requirements of each local building code, specific regional conditions, and individual building site. The plans are intended to indicate design intent and basic construction detailing. It is your responsibility to ensure that you have obtained the proper professional assistance to provide standard construction details and practices, which will result in a structurally sound and weatherproofed finished product. Variations in standard sizes (i.e. windows and doors), thicknesses, types and uses of different materials can change details. Local codes, ordinances, regulations, foundation requirements, and the layout of mechanical, electrical and plumbing may also require changes to the details.
