Montgomery Ridge

Modern Tudor
Plan Details
Floor plans
Overall Dimensions: 103′ 86′

Tap to enlarge

Share Plan
Email
Print
Facebook
Pinterest
Description

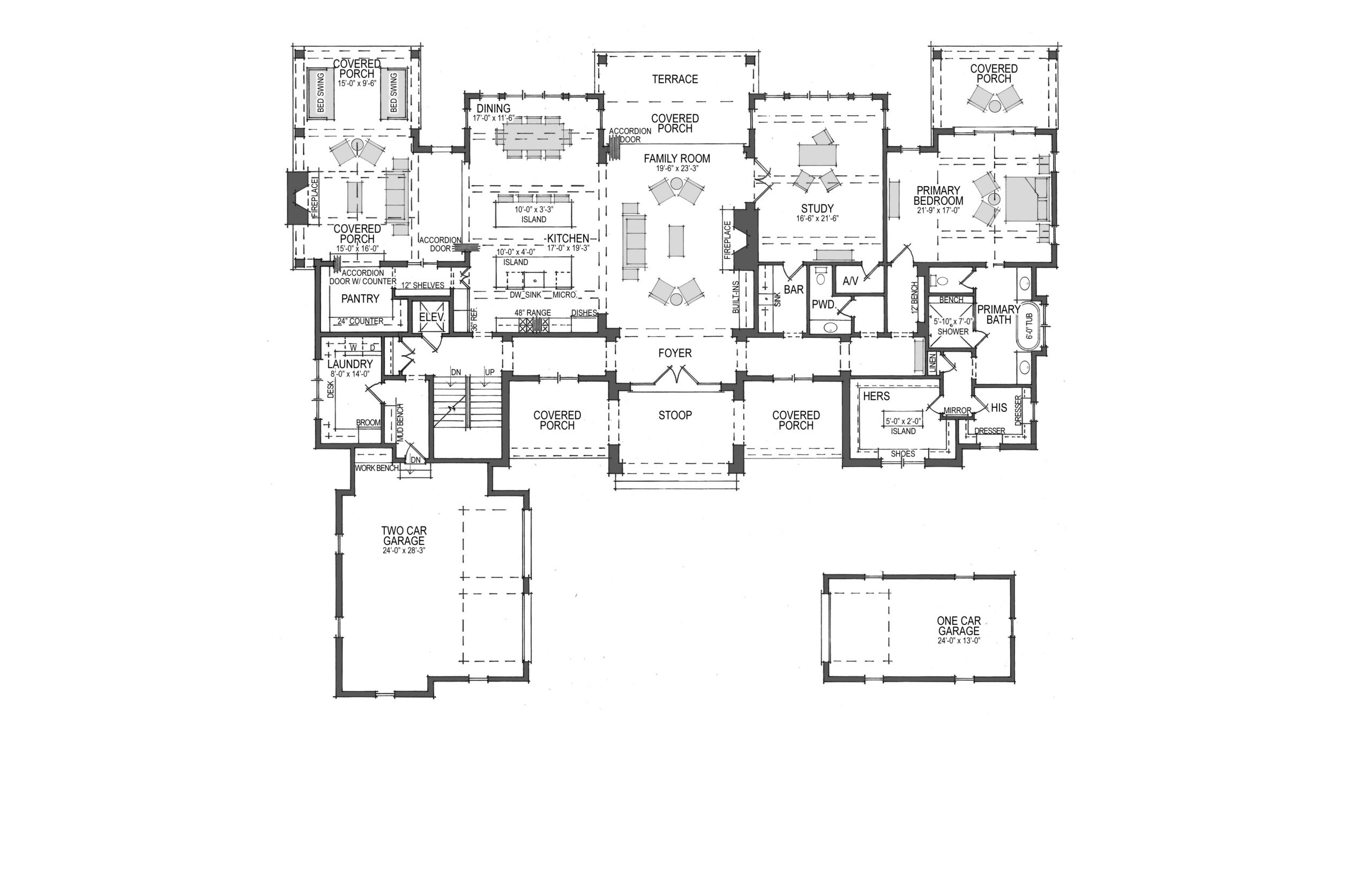

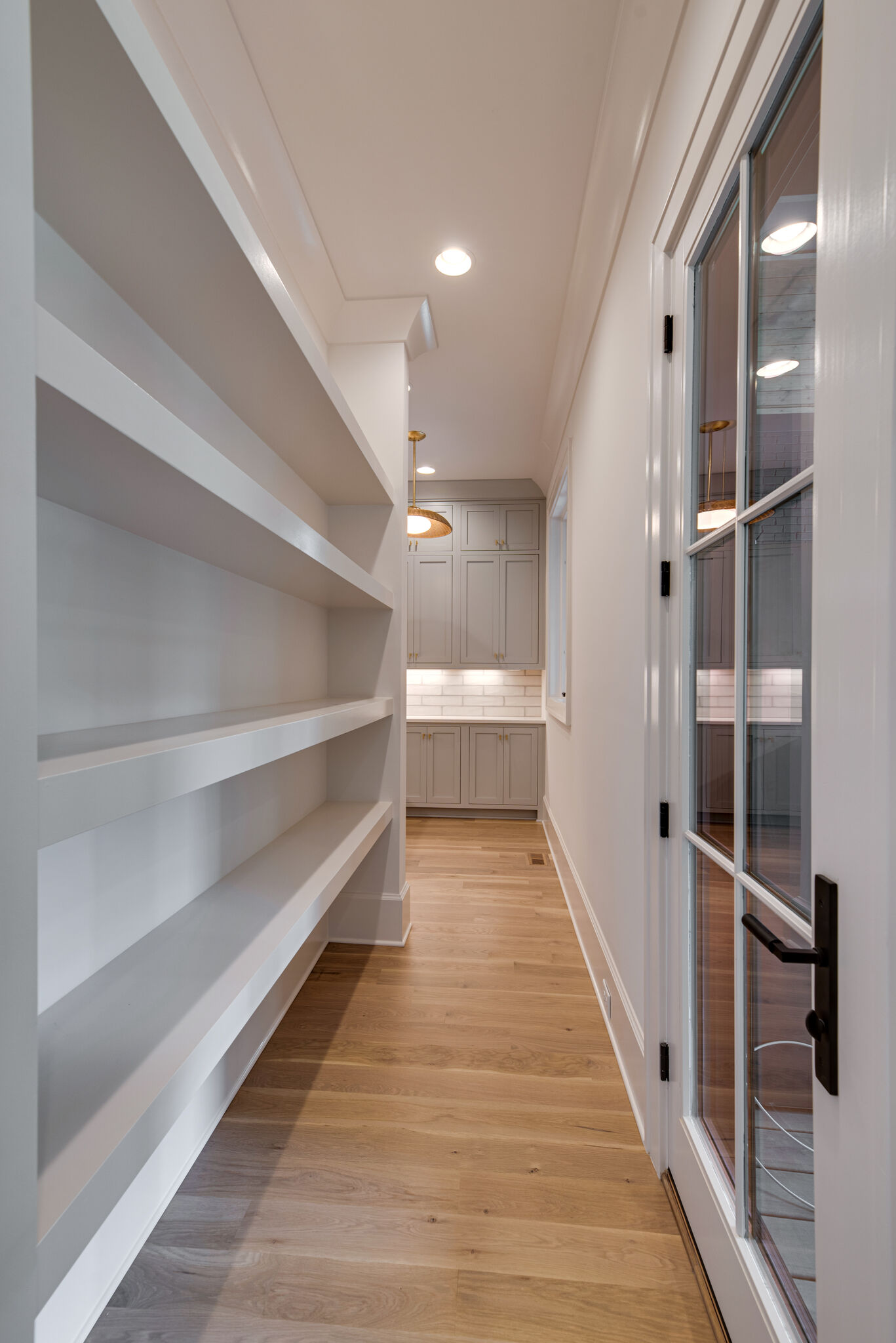

Stunning from the inside and out, the Montgomery Ridge Transitional Tudor plan was designed with a focus on entertainment and enjoyment of the outdoors. With windows across the rear of the home and seven covered porches, this design is ideal for a backyard pool. The large covered front porch opens through double doors to the two-level family room, immediately showing off this home’s expansive backyard views. When open, the family room’s accordion doors create a seamless entertaining flow to an outdoor terrace. The open concept kitchen boasts two islands and an oversized hidden pantry. Accordion doors open the bar area to a covered porch with a fireplace and multiple seating areas. This porch also opens to the kitchen and dining areas through an additional set of accordion doors. Beyond the family room fireplace, double doors open to a study with a bar and A/V closet. The luxurious primary bedroom is accessible from a hallway off of the foyer, positioned quietly beyond the study for extra privacy. With sliding door access to its own covered porch, this retreat like space has a large soaking tub, walk in shower, private toilet, dual vanities, and spacious his and hers closets. Across the home, entry from the two-car garage provides easy access to a mud bench, coat closet, large laundry room with a built-in desk, and is close to the elevators and stairs to the upper and lower levels.

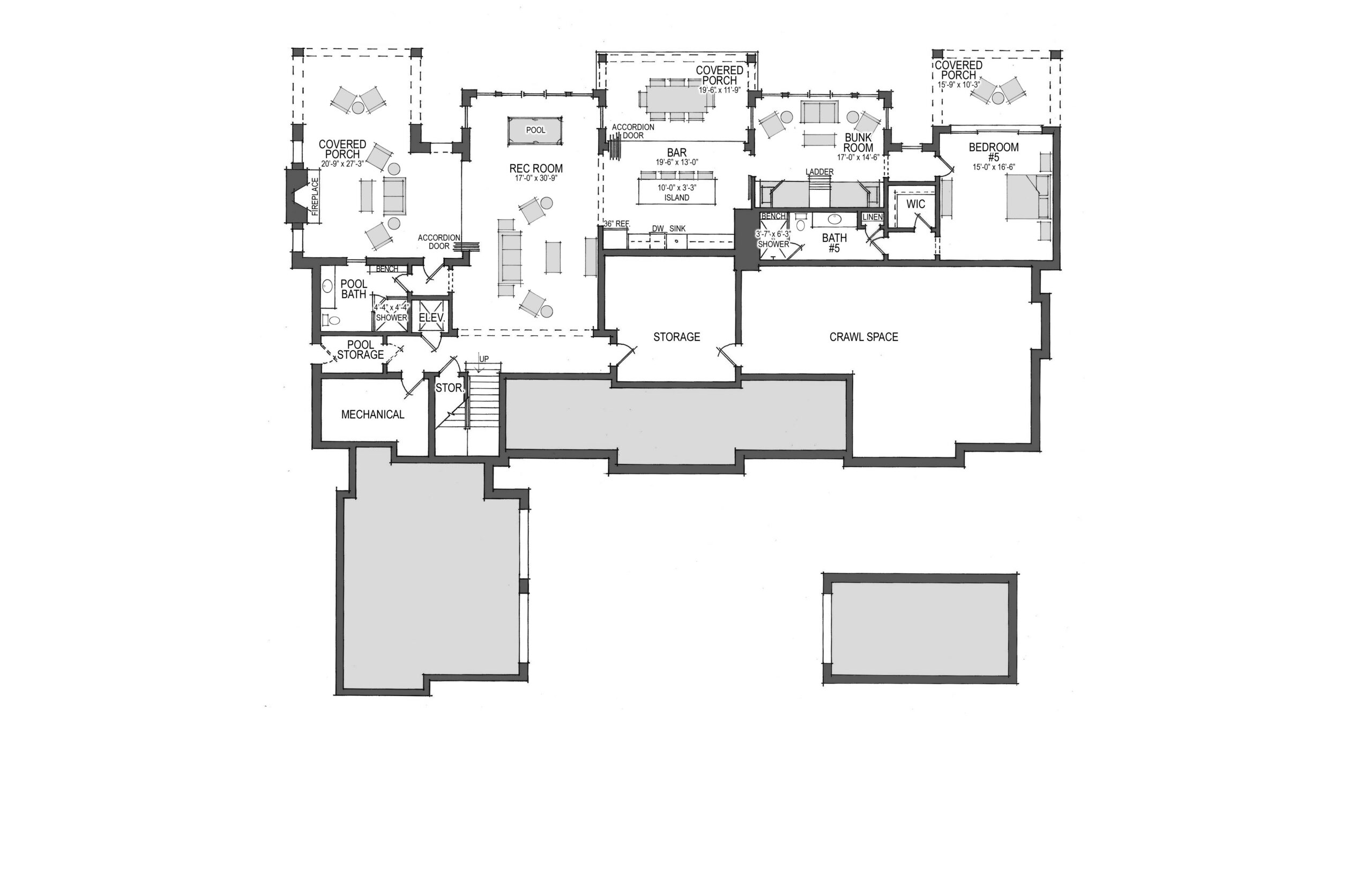

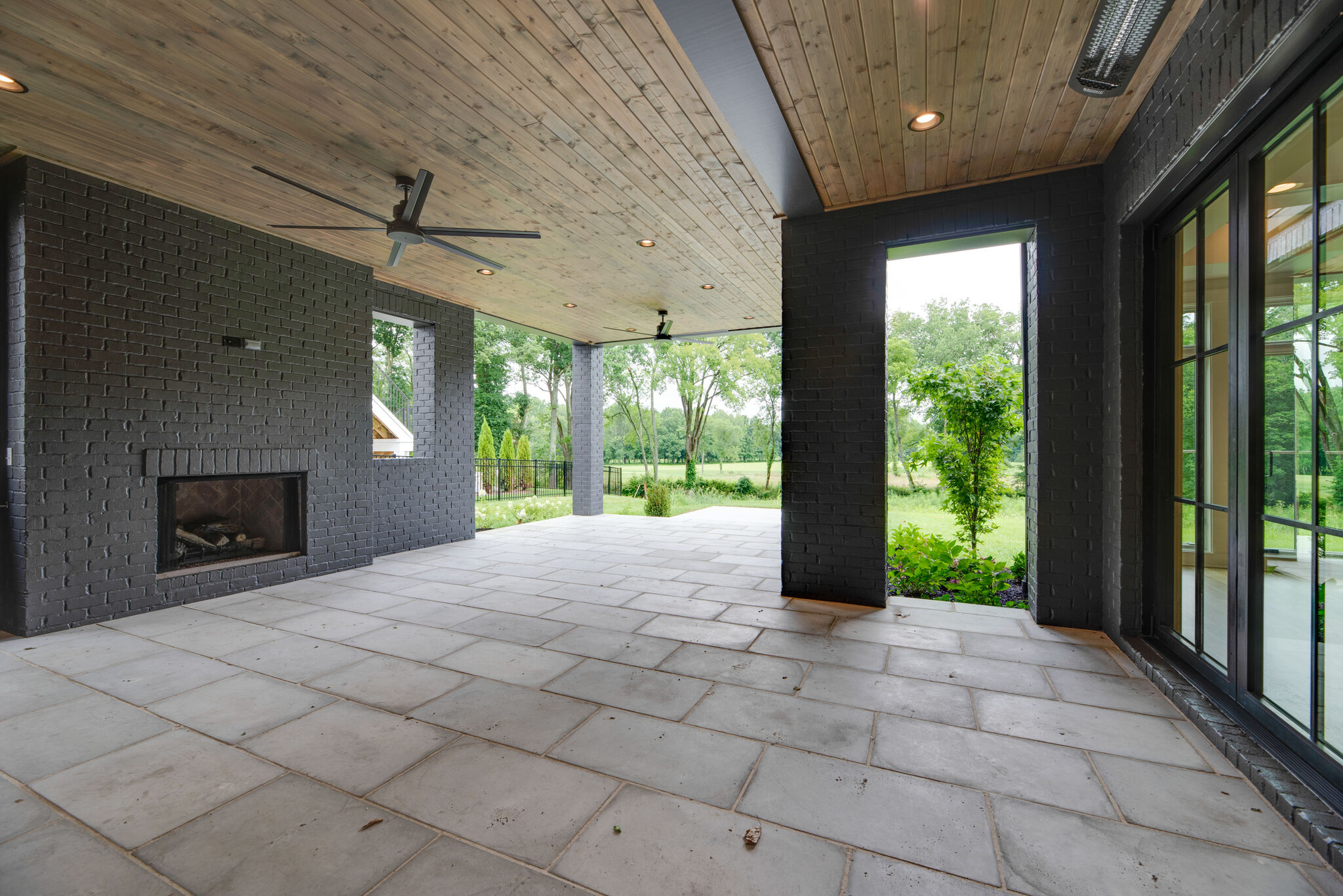

In the basement, the rec room has ample space for seating as well as a pool table, and the rear wall of windows makes it easy to forget this is a basement space. Accordion doors open to a spacious covered porch with a fireplace and multiple seating areas. The bar off of the rec room opens to another covered porch. A bunk room adds a fun spot for sleepovers or visiting family, and the luxurious guest suite will have friends begging for an invitation. With sliding doors to a private covered porch, a walk-in closet, and a full bath, guests will feel right at home in their own space. A full bath near the stairs is perfect for rinsing off after time in the pool. Ample storage areas complete this level.

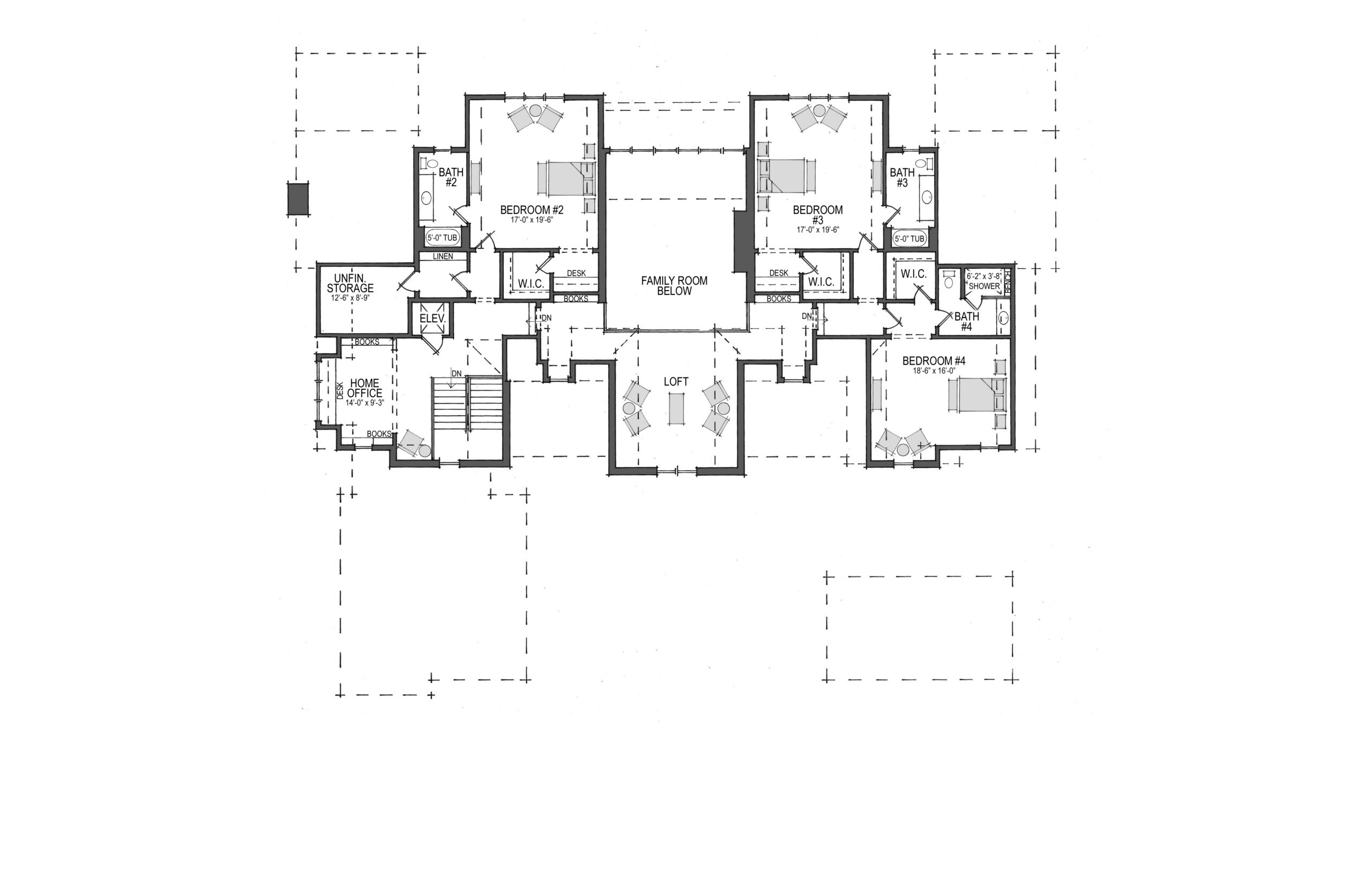

Upstairs, two bedrooms have custom desk nooks, and all three each have a full bath and walk-in closet. A cozy loft is another place from which to admire the backyard views through the two-story family room windows. Finally, the home office at the top of the stairs is a great out of the way space to finish up the day’s work, and with built-in bookshelves, it doubles as a perfect homework station or library.



At a Glance
  • 6,238 square feet
  • 6 bedrooms, 7 and 1/2 bath
  • Three level home with elevator
  • Open concept living area
  • Accordion doors create seamless entertaining flow to outside spaces
  • Seven covered porches on two levels
  • Basement includes large rec room, guest suite, bar, three covered porches, bunk room, and ample storage.
  • Home office and loft space on second level
  • Ideal home design for a backyard pool
  • Three garage bays
Purchase Options
Questions?

Sailer Design has been honored to be the architect for a number of Southern Living Showcase Homes. Part of this honor means this particular plan is exclusively available through southernliving.com.

We do! You can view all Sailer Design plans sold exclusively on southernliving.com here: Southern Living House Plans →

Purchase Plan

This plan is available as a Southern Living house plan.

Purchase Brochure

Or purchase a Printable Brochure here on sailerdesign.com

$15.00 $6,238.00

Questions?
Your purchase of a Sailer Design plan includes the foundation plan, floor plans, all exterior elevations, and cornice details. Learn more →
We’d love to modify our plan to meet your needs. Many of our plans already include future expandable space. While it is easier to increase the square footage of a plan than it is to eliminate square footage, some of our plans can be made smaller. Contact us with your request and for a quote for these changes. Personalize this Plan →

Yes, we can flip the plan to meet your needs. For example, if the plan has the garage on the right side, but you need the garage on the left, we can reverse it.

Building costs vary greatly by region. We suggest consulting with a local builder to provide a building cost estimate.
Purchase Plan
Personalize This PLan
Ask a Question

We would love to answer any questions you may have!

If it is easier to call:

"*" indicates required fields

How would you prefer to be contacted?
Are you building in Middle TN?*
This field is for validation purposes and should be left unchanged.

What's Included

Foundation Plan – ¼” scale

Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.

First Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Second Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Roof Plan – ¼” scale

Documentation of the proposed roof form indicating slopes and special roof structures and their locations.

Elevations – ¼” scale

Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.

Building Details – 1” scale

Selected exterior details (cornice details, porch details, etc.).

What's Not Included

Architectural and Engineering stamps

Some cities and states require a licensed architect or engineer to review and stamp a set of Construction Documents. If your local building department requires one, you will need to engage a local architect or engineer for review and stamping.

Site-specific foundation plan

The included foundation plan is meant to serve as a basic guide for a typical foundation and is not site or location-specific. Sailer Design LLC recommends that you have a local designer or licensed engineer to review the plans and provide a site-specific foundation plan as necessary.

Heating, plumbing and electrical plans

Due to variations in climate and building codes, these should be supplied by local contractors. We suggest you have a local electrical engineer, mechanical engineer, or builder provide these drawings as required for permits and construction.

Material quantity list

Once your personal selections are made (types of windows, doors, exterior materials, etc…) this list should be obtained from your contractor or local building materials supplier.

Material selections

Final material selections are the responsibility of you and your builder, including proper installation.

Construction Documents

Our home plan packages offer a complete design of our homes. However, due to the uniqueness of each building site, our Construction Documents are not fully engineered to meet the requirements of each local building code, specific regional conditions, and individual building site. The plans are intended to indicate design intent and basic construction detailing. It is your responsibility to ensure that you have obtained the proper professional assistance to provide standard construction details and practices, which will result in a structurally sound and weatherproofed finished product. Variations in standard sizes (i.e. windows and doors), thicknesses, types and uses of different materials can change details. Local codes, ordinances, regulations, foundation requirements, and the layout of mechanical, electrical and plumbing may also require changes to the details.
